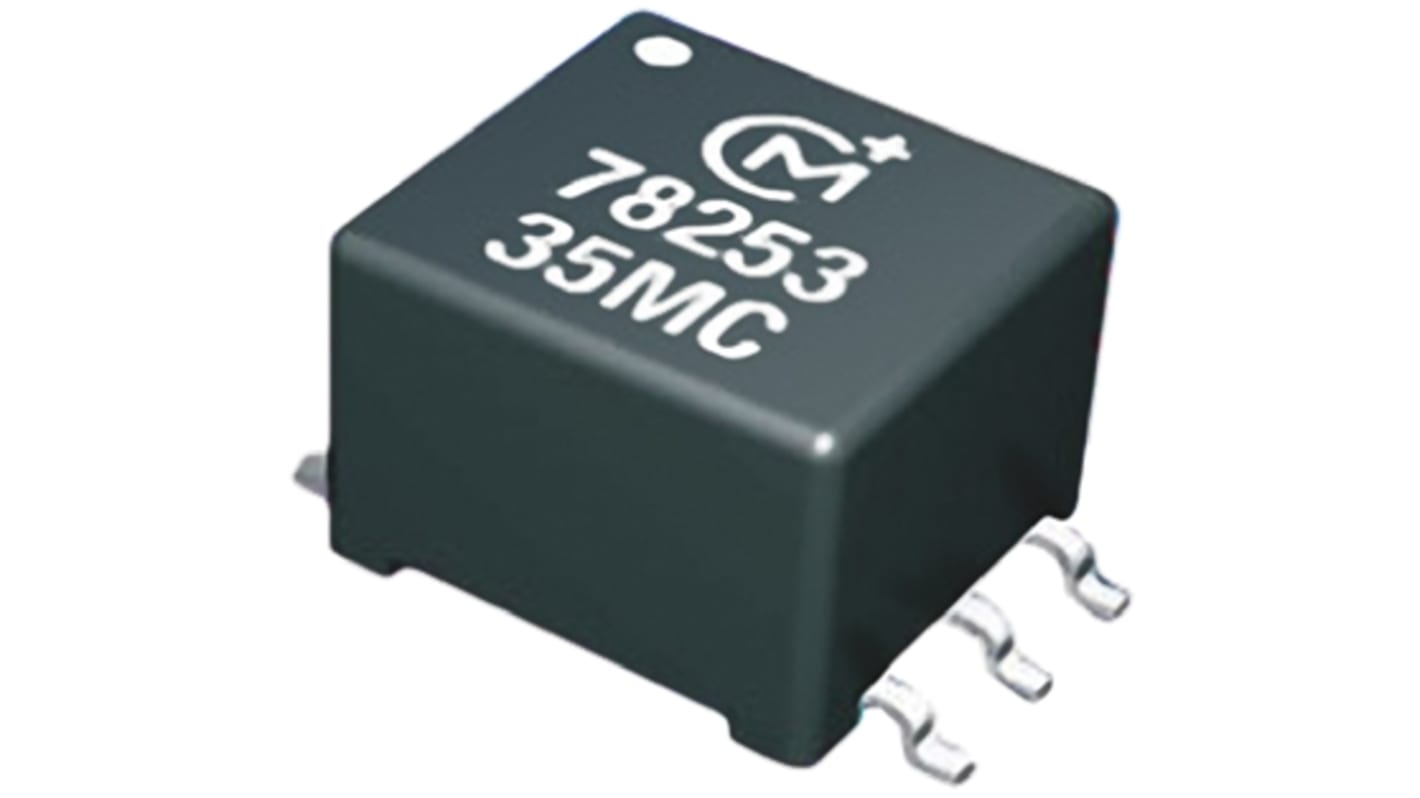

Murata Power Solutions Surface Mount Pulse Transformer 1:2.27 Turns Ratio, 0.38mH Prim. Inductance, 1Ω Prim. Resistance
- RS-artikelnummer:
- 715-6872
- Tillv. art.nr:
- 78253/35MC
- Tillverkare / varumärke:
- Murata Power Solutions
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
- RS-artikelnummer:
- 715-6872
- Tillv. art.nr:
- 78253/35MC
- Tillverkare / varumärke:
- Murata Power Solutions
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Murata Power Solutions | |
| Primary Inductance | 0.38mH | |
| Primary DC Resistance | 1Ω | |
| Turns Ratio | 1:2.27 | |
| Mounting Type | Surface Mount | |
| Leakage Inductance | 1µH | |
| Dimensions | 9 x 12.7 x 6.55mm | |
| Depth | 6.55mm | |
| Length | 9mm | |
| Width | 12.7mm | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
| Välj alla | ||
|---|---|---|
Brand Murata Power Solutions | ||
Primary Inductance 0.38mH | ||
Primary DC Resistance 1Ω | ||
Turns Ratio 1:2.27 | ||
Mounting Type Surface Mount | ||
Leakage Inductance 1µH | ||
Dimensions 9 x 12.7 x 6.55mm | ||
Depth 6.55mm | ||
Length 9mm | ||
Width 12.7mm | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- CN
MAX253 RS485/232 Isolation transformer
Isolation converter transformer with isolation voltage of 1.5 kVrms (C/MC types) and 4 kVrms (VC/VMC types)
Specifically designed to provide isolated RS-485 and RS-232 interface
Industry standard pinout, low profile, through hole and SMT
3.3V and 5V versions with frequency range upto 500 kHz
Specifically designed to provide isolated RS-485 and RS-232 interface
Industry standard pinout, low profile, through hole and SMT
3.3V and 5V versions with frequency range upto 500 kHz
