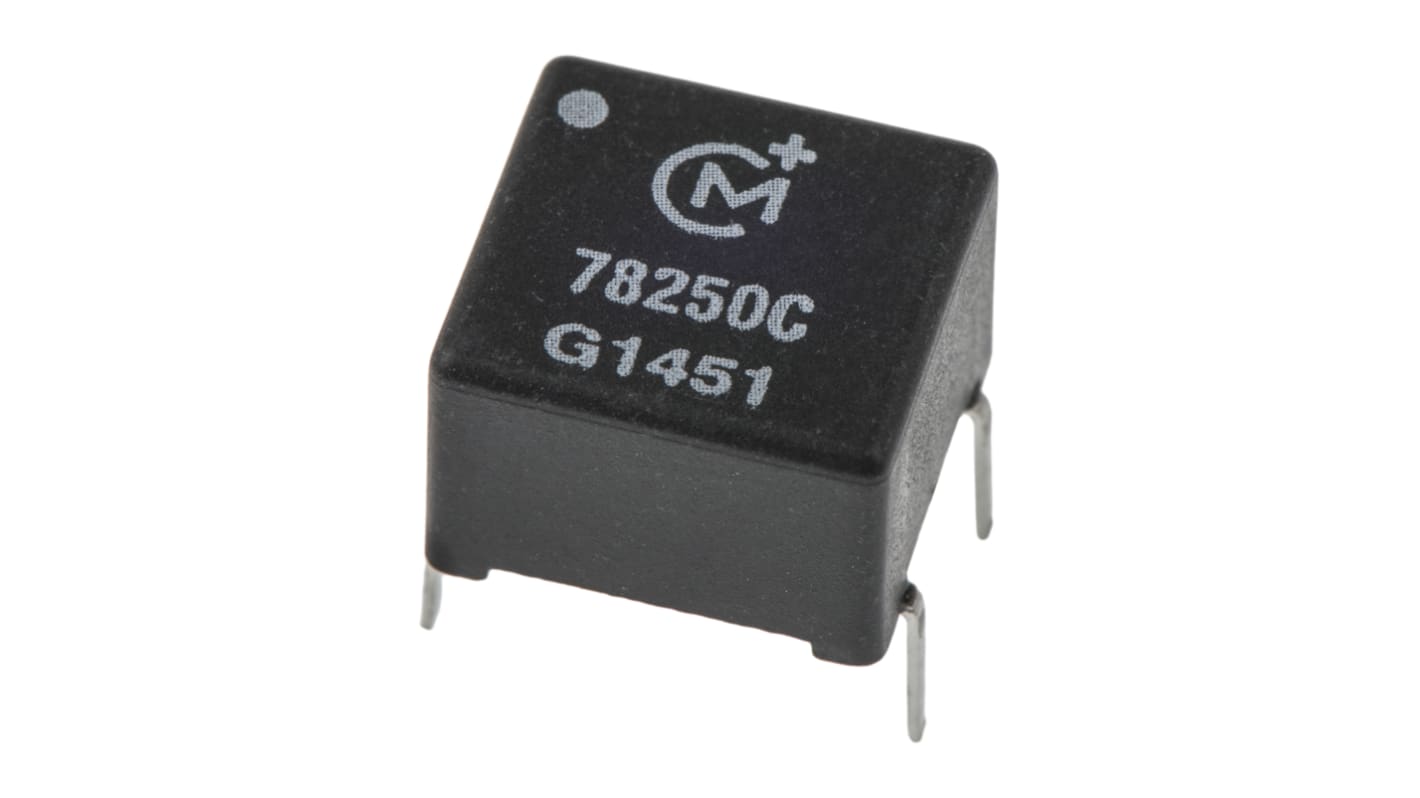

Murata Power Solutions Through Hole Pulse Transformer 0.042361111111 Turns Ratio, 2mH Prim. Inductance, 1Ω Prim.
- RS-artikelnummer:
- 106-8570
- Tillv. art.nr:
- 78250C
- Tillverkare / varumärke:
- Murata Power Solutions
2000 I lager för avsändande samma dag
Pris (ex. moms) Var (i ett rör med 50)
25,455 kr
(exkl. moms)
31,819 kr
(inkl. moms)
Enheter | Per unit | Per Tube* |
50 - 450 | 25,455 kr | 1 272,75 kr |
500 - 950 | 22,705 kr | 1 135,25 kr |
1000 - 1200 | 22,451 kr | 1 122,55 kr |
1250 - 2450 | 21,589 kr | 1 079,45 kr |
2500 + | 21,297 kr | 1 064,85 kr |
- RS-artikelnummer:
- 106-8570
- Tillv. art.nr:
- 78250C
- Tillverkare / varumärke:
- Murata Power Solutions
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
RS-232 Communications Isolation
Isolation converter transformer, low profile, with maximum isolation voltage of 1500Vrms
Specifically designed to provide isolated RS-232 interface, see Maxim integrated circuit MAX251 (stock no. 540-2142)
Printed circuit board standard pinout (2·54mm)
Specifically designed to provide isolated RS-232 interface, see Maxim integrated circuit MAX251 (stock no. 540-2142)
Printed circuit board standard pinout (2·54mm)
Standards
BS EN 60950; BS EN 41003
Specifikationer
Attribute | Value |
---|---|
Primary Inductance | 2mH |
Primary DC Resistance | 1Ω |
Secondary DC Resistance | 1Ω |
Turns Ratio | 0.042361111111 |
Mounting Type | Through Hole |
Leakage Inductance | 3µH |
Length | 9mm |
Width | 10.19mm |
Termination Type | Pin |
Maximum Temperature | 85°C |
Minimum Temperature | -40°C |
Construction | Enclosed |
