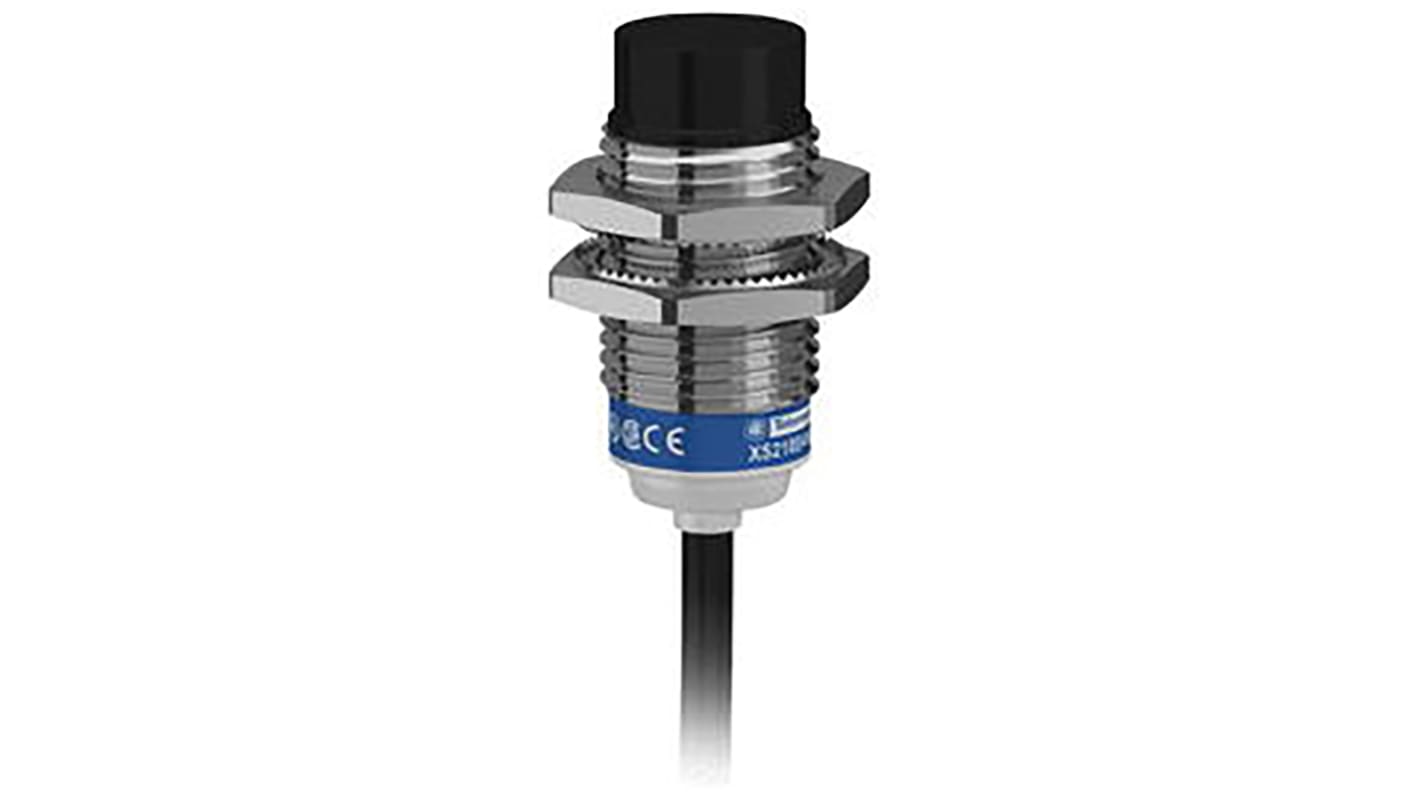

Telemecanique Sensors Barrel-Style Proximity Sensor, M18 x 1, 16 mm Detection, PNP-NO Output, 12 → 24 V dc,
- RS-artikelnummer:
- 123-8618
- Tillv. art.nr:
- XS218B4PAL5
- Tillverkare / varumärke:
- Telemecanique Sensors
Inte tillgänglig
RS kommer inte längre att lagerföra denna produkt.
- RS-artikelnummer:
- 123-8618
- Tillv. art.nr:
- XS218B4PAL5
- Tillverkare / varumärke:
- Telemecanique Sensors
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Telemecanique Sensors | |
| Body Style | Barrel | |
| Thread Size | M18 x 1 | |
| Output Type | PNP-NO | |
| Detection Range | 16 mm | |
| Terminal Type | Cable | |
| IP Rating | IP65, IP67, IP69K | |
| Supply Voltage | 12 → 24 V dc | |
| Length | 41mm | |
| Maximum DC Voltage | 24V | |
| Mounting Type | Non Flush | |
| Switching Current | ≤200 mA | |
| Housing Material | Brass (Case), PPS (Sensing Face) | |
| Maximum Operating Temperature | +70°C | |
| Shielding | Unshielded | |
| Maximum Switching Frequency | 1kHz | |
| Short Circuit Overload Protection | Yes | |
| Reverse Polarity Protection | Yes | |
| Standards Met | CE, CSA, E2, UL | |
| Minimum Operating Temperature | -25°C | |
| Välj alla | ||
|---|---|---|
Brand Telemecanique Sensors | ||
Body Style Barrel | ||
Thread Size M18 x 1 | ||
Output Type PNP-NO | ||
Detection Range 16 mm | ||
Terminal Type Cable | ||
IP Rating IP65, IP67, IP69K | ||
Supply Voltage 12 → 24 V dc | ||
Length 41mm | ||
Maximum DC Voltage 24V | ||
Mounting Type Non Flush | ||
Switching Current ≤200 mA | ||
Housing Material Brass (Case), PPS (Sensing Face) | ||
Maximum Operating Temperature +70°C | ||
Shielding Unshielded | ||
Maximum Switching Frequency 1kHz | ||
Short Circuit Overload Protection Yes | ||
Reverse Polarity Protection Yes | ||
Standards Met CE, CSA, E2, UL | ||
Minimum Operating Temperature -25°C | ||
- COO (Country of Origin):
- FR
Telemecanique Inductive Sensors
Introducing Telemecaniques XS218B range of M18 inductive proximity sensors which have been created and designed for use within applications within mobile equipment and light hoisting applications where metal detection is required. This range of proximity sensors features 1 threaded cylindrical metal bodies, they're unable to be flush-mounted and have been created and designed for direct current circuit applications.
How do they work and where can I use them?
Inductive proximity sensors contain a coil and an oscillator, these create an electromagnetic field close to the sensing surface. When metal enters this field, a change occurs in the oscillating amplitude. This, in turn, changes the sensor output, showing the user and/or corresponding equipment that metal has been sensed. Inductive proximity sensors are suitable for use in virtually any industry. Common applications include the food and beverage industry, robotics, machine tools, packaging and materials handling and so much more. Inductive sensors are unaffected by oil, dirt or surface finish and can be used in high vibration and high shock areas.
