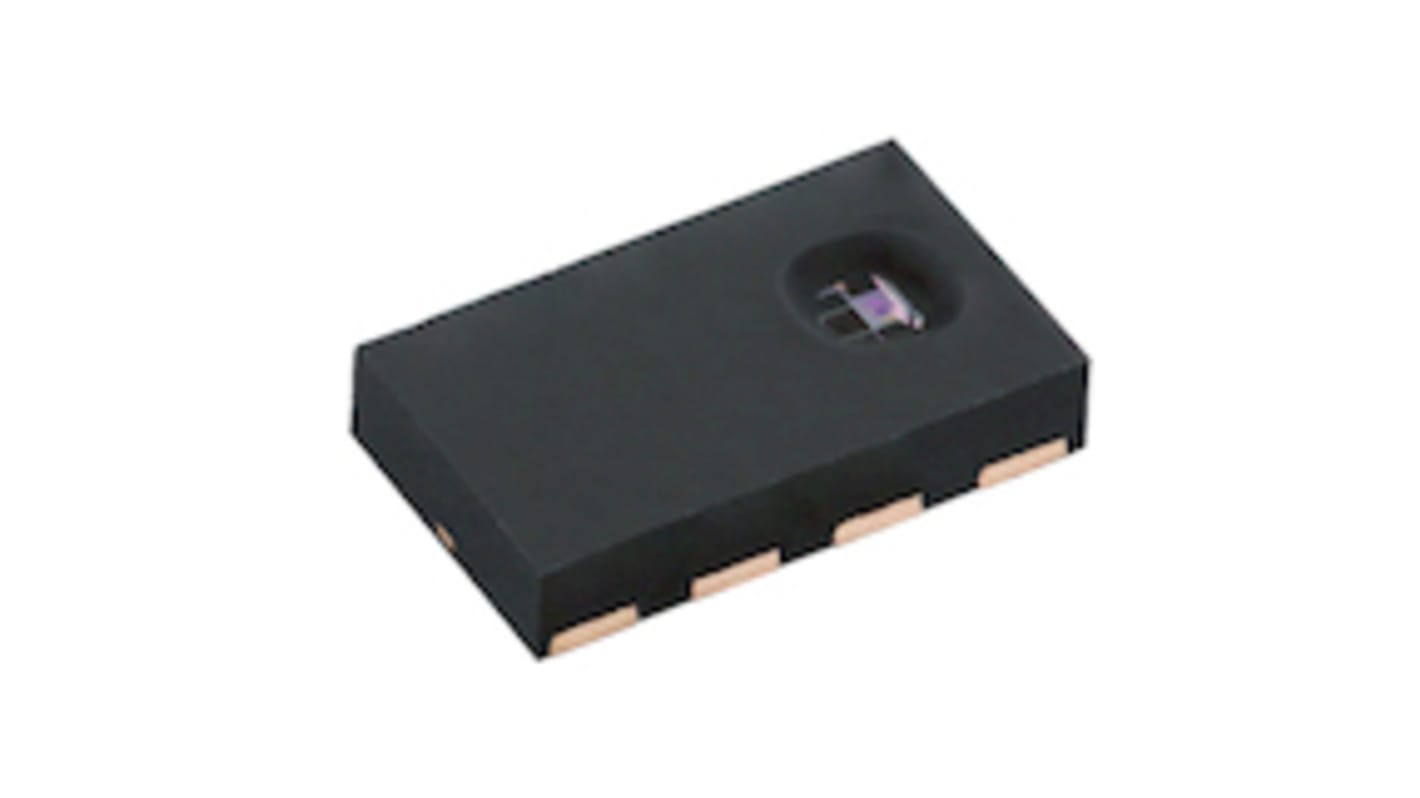

VCNL4035X01-GS08 Vishay, VCNL Ambient Light, Proximity Sensor, 500mm 2.5 V to 3.6 V 8-Pin SMD
- RS-artikelnummer:
- 161-2048
- Tillv. art.nr:
- VCNL4035X01-GS08
- Tillverkare / varumärke:
- Vishay
1800 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i en rulle med 1800)
10,909 kr
(exkl. moms)
13,636 kr
(inkl. moms)
| Enheter | Per unit | Per Reel* |
| 1800 + | 10,909 kr | 19 636,20 kr |
- RS-artikelnummer:
- 161-2048
- Tillv. art.nr:
- VCNL4035X01-GS08
- Tillverkare / varumärke:
- Vishay
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- PH
Produktdetaljer
VCNL4035X01 integrates a proximity sensor (PS), ambient light sensor (ALS), a muxx, and a driver for up to 3 external IREDs / LEDs into one small package. It incorporates photodiodes, amplifiers, and analog to digital converting circuits into a single chip by CMOS process. The 16-bit high resolution ALS offers excellent sensing capabilities with sufficient selections to fulfill most applications whether dark or high transparency lens design.
Package type: surface-mount
AEC-Q101 qualified
Ambient light sensor (ALS)
Proximity sensor (PS)
Signal conditioning (ICL)
Operates ALS and PS in parallel structure
Temperature compensation: -40 °C to +105 °C
Low power consumption I
AEC-Q101 qualified
Ambient light sensor (ALS)
Proximity sensor (PS)
Signal conditioning (ICL)
Operates ALS and PS in parallel structure
Temperature compensation: -40 °C to +105 °C
Low power consumption I
Specifikationer
Attribute | Value |
|---|---|
| Sensor Type | Ambient Light, Proximity Sensor |
| Maximum Switching Frequency | 400 kHz |
| Maximum Output Voltage | 5 V |
| Sensing Distance | 500mm |
| Switching Mode | Digital |
| Mounting Type | Surface Mount |
| Package Type | SMD |
| Pin Count | 8 |
| Maximum Supply Current | 300 μA |
| Dimensions | 4 x 2.36 x 0.75mm |
| Height | 0.75mm |
| Length | 4mm |
| Maximum Operating Temperature | 105 °C |
| Width | 2.36mm |
| Series | VCNL |
| Minimum Operating Supply Voltage | 2.5 V |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Temperature | -40 °C |
| Automotive Standard | AEC-Q101 |
