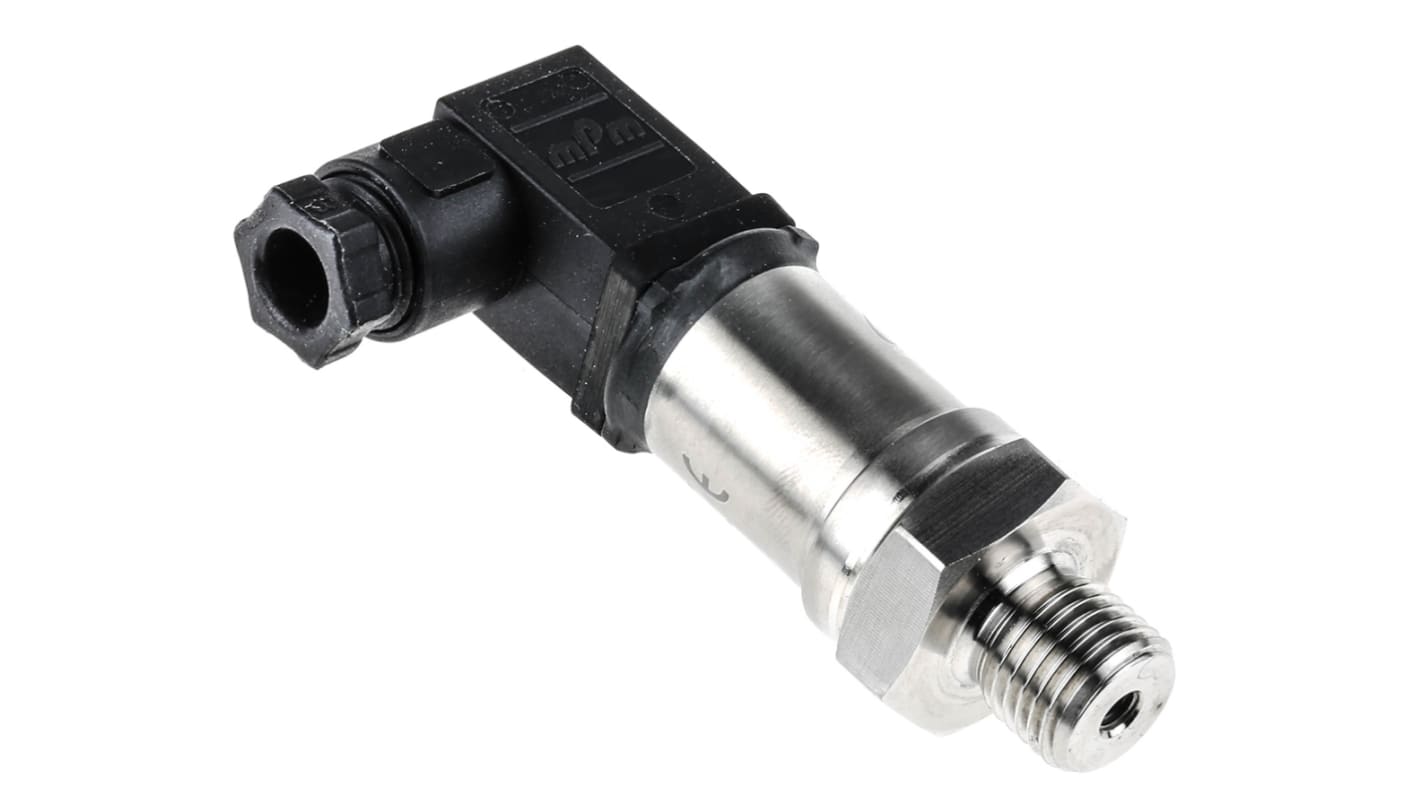

Gems Sensors Absolute for Air, Gas, Water Pressure Sensor, 10bar Max Pressure Reading , 10 → 30 V dc, G1/4, IP67

  • RS-artikelnummer 896-8487
  • Tillv. art.nr 3500B0010A01B000
  • Tillverkare / varumärke Gems Sensors
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

3500 Series Compact Low Pressure Transmitters

3500 series compact low pressure OEM pressure transmitters with a wide choice of electrical outputs and electrical and pressure connections, which means that they are suitable for most applications without modification. The compact construction makes them ideal for installation where space is at a premium.

5 to 600 psi pressure ranges
Choice of outputs, electrical connections and pressure ports
Small package size
Stainless steel wetted parts
Operating temperature up to 125 ºC

Warning

  • THIS PRODUCT IS NOT PED CERTIFIED
Specifikationer
Attribute Value
Pressure Reading Type Absolute
Maximum Pressure Reading 10bar
Accuracy 0.25 %
Output Type Current
Media Measured Air, Gas, Water
Process Connection G1/4
Analogue Output 4 → 20 mA
Electrical Connection DIN 43650 Type C
Supply Voltage 10 → 30 V dc
Housing Material Stainless Steel
IP Rating IP67
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C
Mounting Type Threaded
3 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 547,38 kr
(exkl. moms)
1 934,22 kr
(inkl. moms)
Enheter
Per unit
1 +
1 547,38 kr
