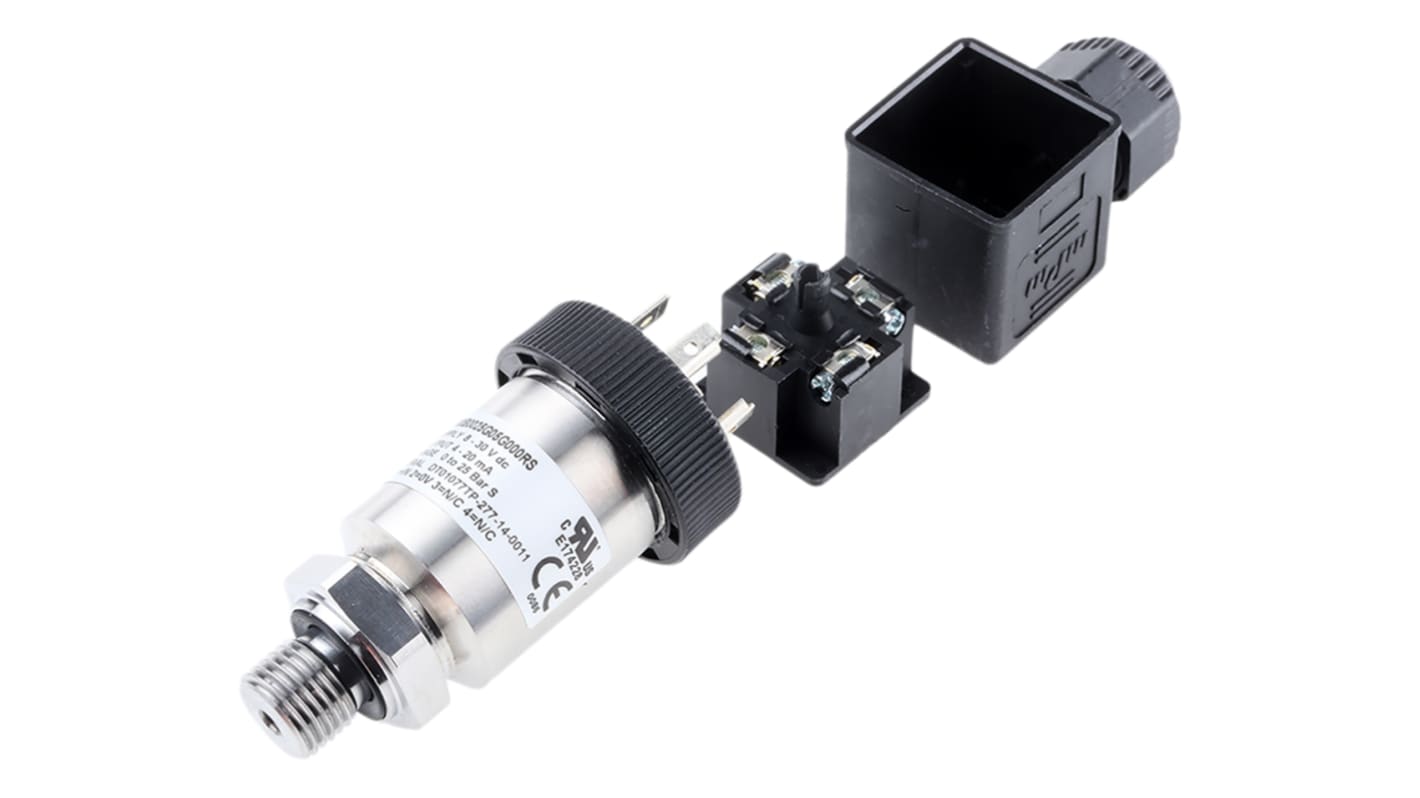

Gems Sensors Gauge for Fluid, Gas Pressure Sensor, 25bar Max Pressure Reading , 8 → 30 V dc, G1/4, IP65

  • RS-artikelnummer 795-4746
  • Tillv. art.nr 3100B0025G05G000
  • Tillverkare / varumärke Gems Sensors
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): GB
Produktdetaljer

Pressure Transmitters - 3100 Series

Gems Sensors 3100 series pressure transmitters offer consistent high levels of performance, reliability and stability in a wide range of compact package sizes. They feature all stainless steel wetted parts, a broad selection of electrical and pressure connections, and wide choice of electrical outputs to suit most applications. At the heart of the 3100 series is a sputter element that also provides exceptional temperature specifications.

Features and Benefits

High proof pressures Broad choice of outputs
Operating temperature: -40°C to +120°C
Ideal for installations where space is at a premium
Stainless steel wetted parts
RoHS compliant
IP67 Rated
0.25% FS accuracy

Specifikationer
Attribute Value
Pressure Reading Type Relative
Minimum Pressure Reading 0bar
Maximum Pressure Reading 25bar
Accuracy ±0.25 %
Output Type Current
Media Measured Fluid, Gas
Process Connection G1/4
Analogue Output 4 → 20 mA
Electrical Connection DIN 43650 Type A
Response Time 1 ms
Maximum Current 20 mA
Supply Voltage 8 → 30 V dc
Housing Material Stainless Steel
IP Rating IP65
Minimum Operating Temperature -40°C
Maximum Operating Temperature +125°C
8 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 369,53 kr
(exkl. moms)
1 711,91 kr
(inkl. moms)
Enheter
Per unit
1 +
1 369,53 kr
