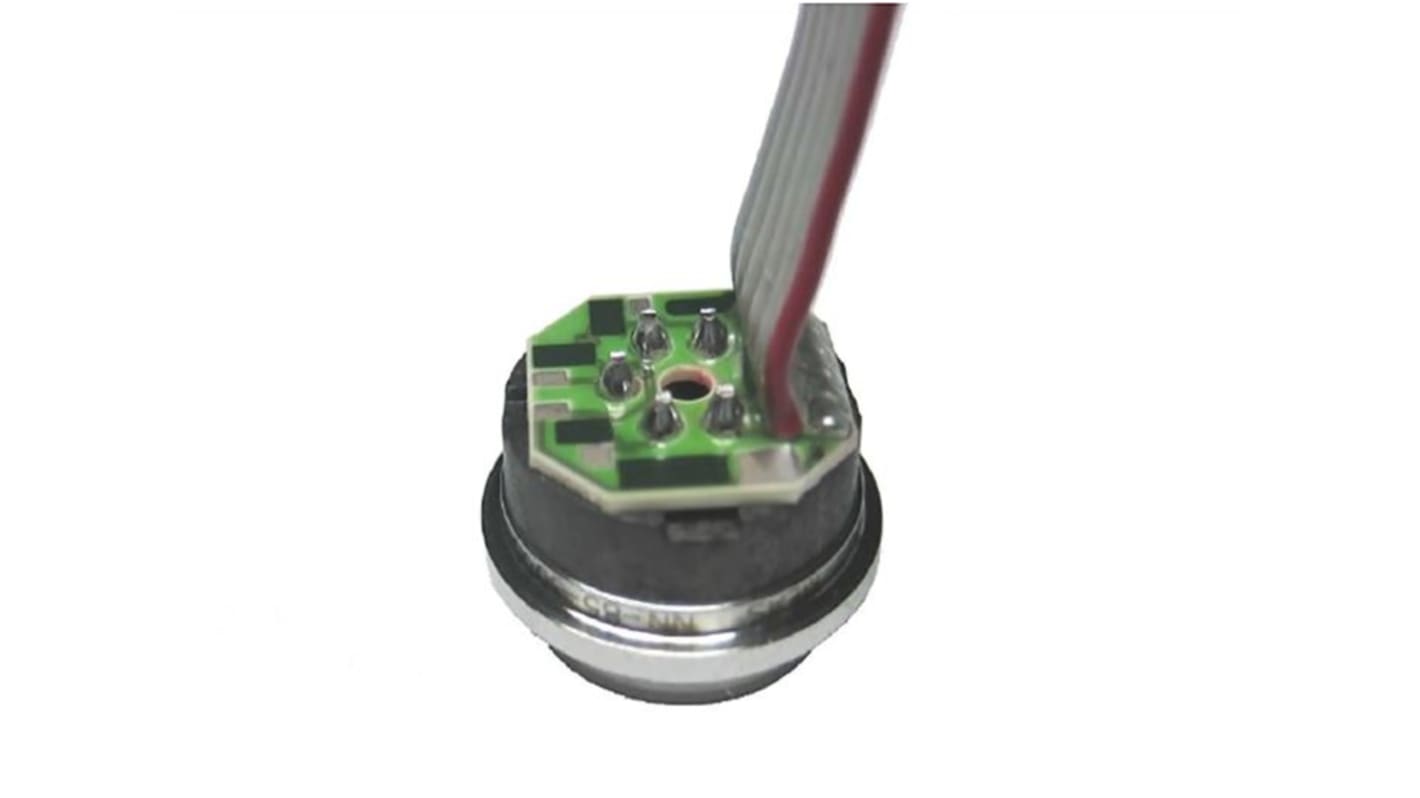

TE Connectivity MEAS 85 Series Series Pressure Sensor, 0psi Min, 30psi Max, Absolute Reading
- RS-artikelnummer:
- 239-1740
- Tillv. art.nr:
- 85-030A-0R
- Tillverkare / varumärke:
- TE Connectivity
28 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
987,23 kr
(exkl. moms)
1 234,04 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 987,23 kr |
| 5 - 9 | 937,77 kr |
| 10 - 24 | 891,41 kr |
| 25 - 99 | 845,95 kr |
| 100 + | 803,69 kr |
- RS-artikelnummer:
- 239-1740
- Tillv. art.nr:
- 85-030A-0R
- Tillverkare / varumärke:
- TE Connectivity
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
The TE Connectivity Pressure Sensors is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 85 compensated is offered in a weldable package or with a variety of threaded fittings such as 1/4 and 1/8NPT, 1/4BSP as well as custom process fittings.
316L SS Pressure Sensor
Temperature Compensated
0-100mV Output
Absolute and Gage
19mm diaphragm diameter
Temperature Compensated
0-100mV Output
Absolute and Gage
19mm diaphragm diameter
Specifikationer
Attribute | Value |
|---|---|
| Pressure Reading Type | Absolute |
| Minimum Pressure Reading | 0psi |
| Maximum Pressure Reading | 30psi |
| Media Measured | Gas, Liquid Level |
| Electrical Connection | Ribbon Cable |
| Series | MEAS 85 Series |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +125°C |
