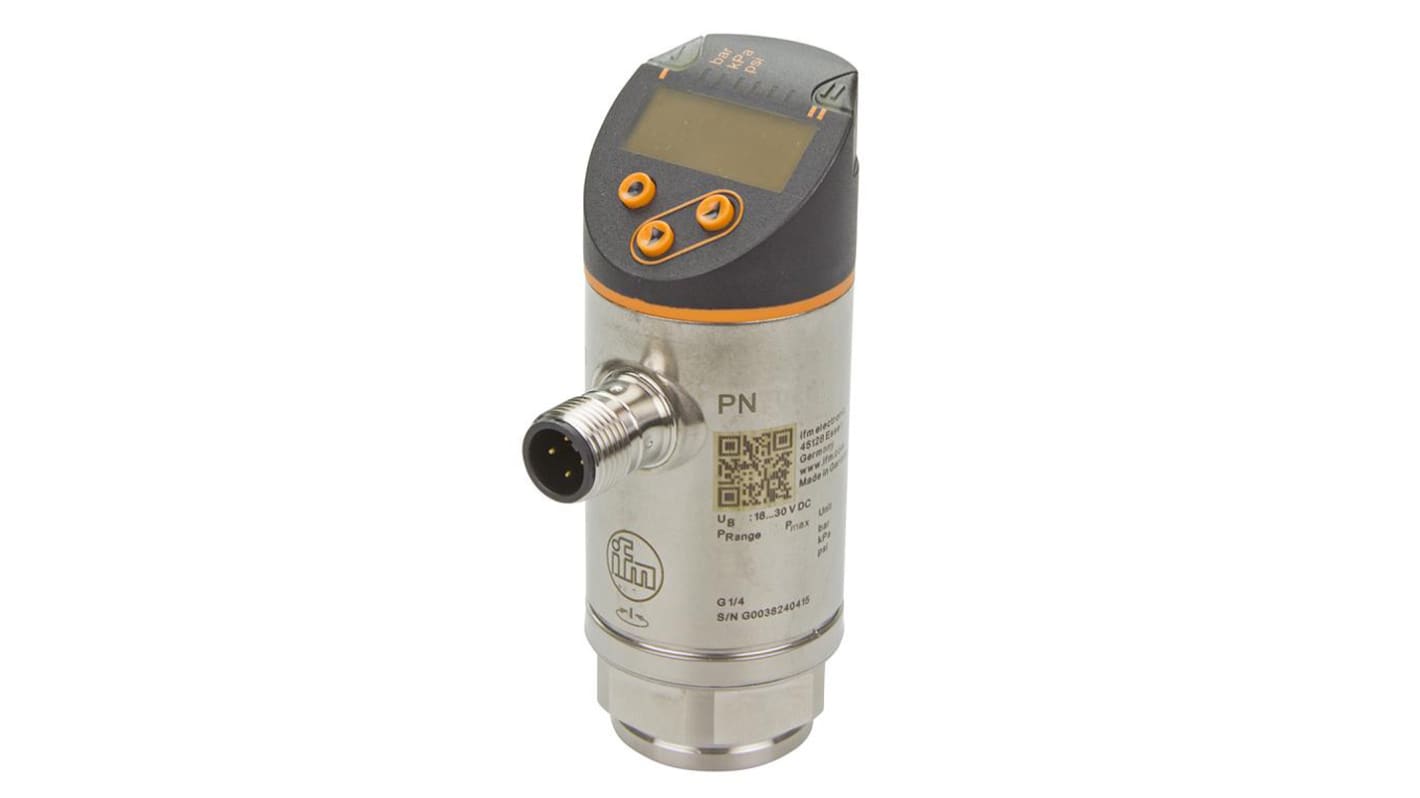

ifm electronic Relative for Fluid, Gas Pressure Sensor, IO-Link, 25bar Max Pressure Reading , 18 30 V dc,

  • RS-artikelnummer 125-1292
  • Tillv. PN7593
  • Tillverkare / varumärke ifm electronic
Lagstiftning och ursprungsland
COO (Country of Origin): DE

ifm electronic PN7xxx Series Pressure Sensors

ifm electronic PN 7xxx series pressure sensors offers a flexible design that allows the sensor to rotate in any direction once fitted. With dual switched NC/NO outputs with complete control over hysteresis (meaning the unit can often replace a HI and LOW pair of mechanical switches). The PN pressure sensors continuously evaluate and show system pressure on a large bright 4-digit alphanumeric display. The display can be switched from the indication of “red” to an alternating indication of “red - green”, highlighting switching states.

Features And Benefits

IO-Link communication
Independent set and reset points
Visualisation of the switching states by clearly visible LEDs
Signal damping, output delay on and delay off times
High overload protection
Highly stable ceramic measuring element is tolerant of overpressures
Low zero offset or drift from ageing, overpressure or temperature
IP 67

Pressure Sensors With Electronic Display

Attribute Value
Pressure Reading Type Relative
Minimum Pressure Reading 0bar
Maximum Pressure Reading 25bar
Accuracy <±0.5 %
Output Type 2x PNP/NPN-NO/NC
Media Measured Fluid, Gas
Process Connection G1/4
Electrical Connection M12 Connector
Response Time <3 (Minimum Switching Output) ms
Communication Protocol IO-LINK
Maximum Current 150 mA @ +60 °C, 200 mA @ +60 °C, 250 mA @ +40 °C
Supply Voltage 18 30 V dc
Interface IO-Link
Housing Material PBT GF20, PBT+PC GF30, PC, Stainless Steel
IP Rating IP65, IP67
Minimum Operating Temperature -25°C
Maximum Operating Temperature +80°C
1 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
3 121,65 kr
(exkl. moms)
3 902,06 kr
(inkl. moms)
Per unit
1 +
3 121,65 kr
