- RS-artikelnummer:
- 432-5599
- Tillv. art.nr:
- SMA 20 R 1/4 V
- Tillverkare / varumärke:
- Stauff
Tillfälligt slut i lager – restorder för leverans 2024-04-09
Pris (ex. moms) Varje
218,80 kr
(exkl. moms)
273,50 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 218,80 kr |
5 - 9 | 209,83 kr |
10 - 24 | 205,13 kr |
25 + | 200,20 kr |
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
- RS-artikelnummer:
- 432-5599
- Tillv. art.nr:
- SMA 20 R 1/4 V
- Tillverkare / varumärke:
- Stauff
Datablad
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- DE
Produktdetaljer

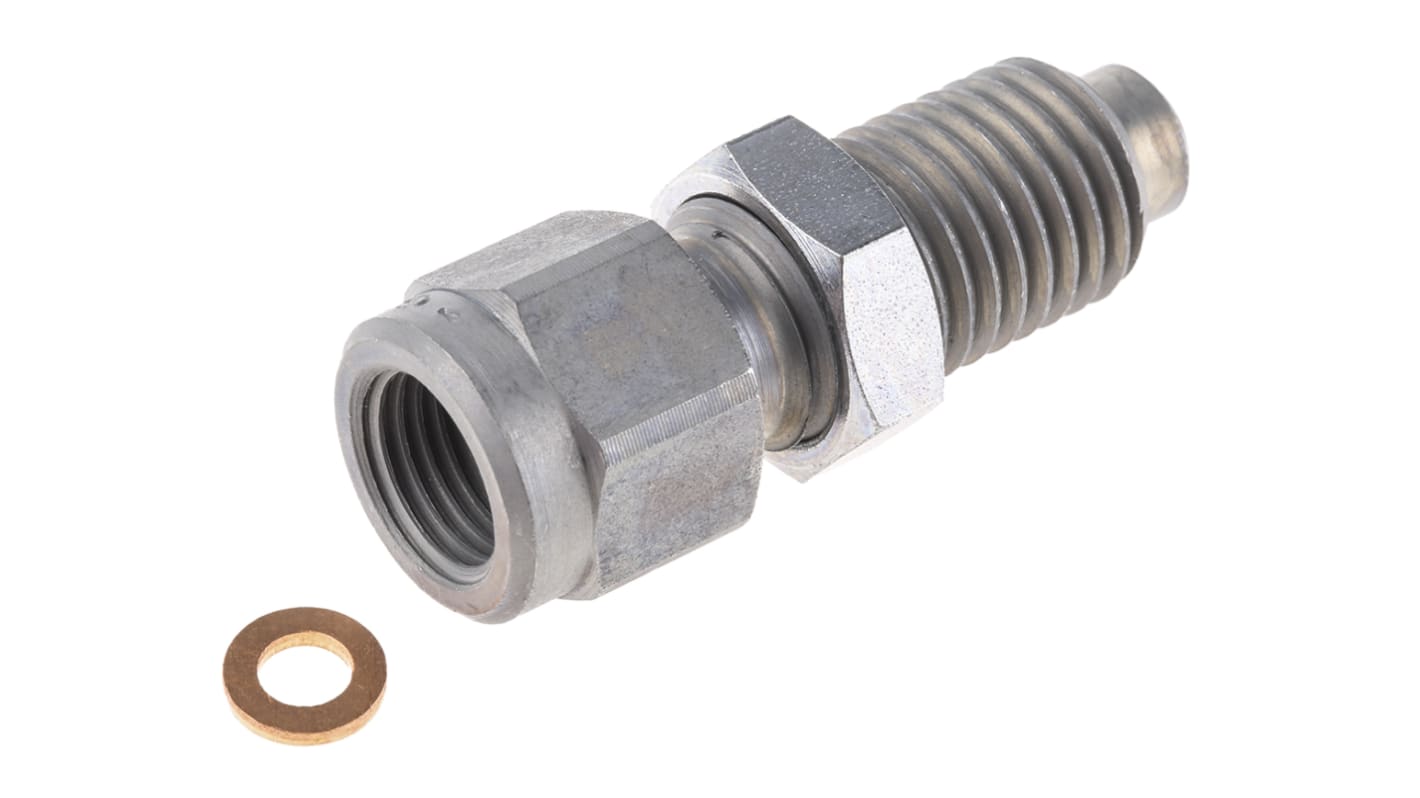

Gauge Adaptor SMA
Pressure gauge to test hose connecting adaptor suitable for bulkhead fixing
Allows secure solid connection between pressure gauge and M16 female swivel end flexible test hose
Can be secured to pre-drilled fabrication by lock nut supplied
Useful when remote readings required or direct gauge to test coupling impractical
Allows secure solid connection between pressure gauge and M16 female swivel end flexible test hose
Can be secured to pre-drilled fabrication by lock nut supplied
Useful when remote readings required or direct gauge to test coupling impractical
Warning
It is essential that tube with an adequate wall thickness for the appropriate working pressures be used with these products and systems.
Test Points - Stauff
These test products have a leak-proof ball-type sealing connection. The test couplings come with self-locking metal guard caps as standard. They can be coupled directly into the pressurised system, creating simple connection to measuring, control and switching devices. They provide fast coupling for monitoring and control of pressure, venting and sampling in low/high pressure and vacuum systems. Applications include monitoring and control of static and peak pressures, connection to pressure gauges, pressure control of fluids, venting/bleeding of air from hydraulic systems and contamination sampling for further analysis. Maximum joining pressure is 400bar. Metal parts are steel with zinc and gold surface finish (or stainless steel, where stated). Balls are stainless steel. Seals are Viton on all steel or stainless steel parts.
Specifikationer
Attribute | Value |
---|---|
Accessory Type | Adapter |
Connector A | G 1/4 Female |
Connector A - Gender | Female |
Connector A - Thread Size | 1/4in |
Connector A - Thread Standard | G |
Connector B | M16 Female |
Connector B - Gender | Female |
Connector B - Thread Size | M16 |
Connector B - Thread Standard | Metric |
Body Material | Steel |
Maximum Operating Pressure | 630bar |
