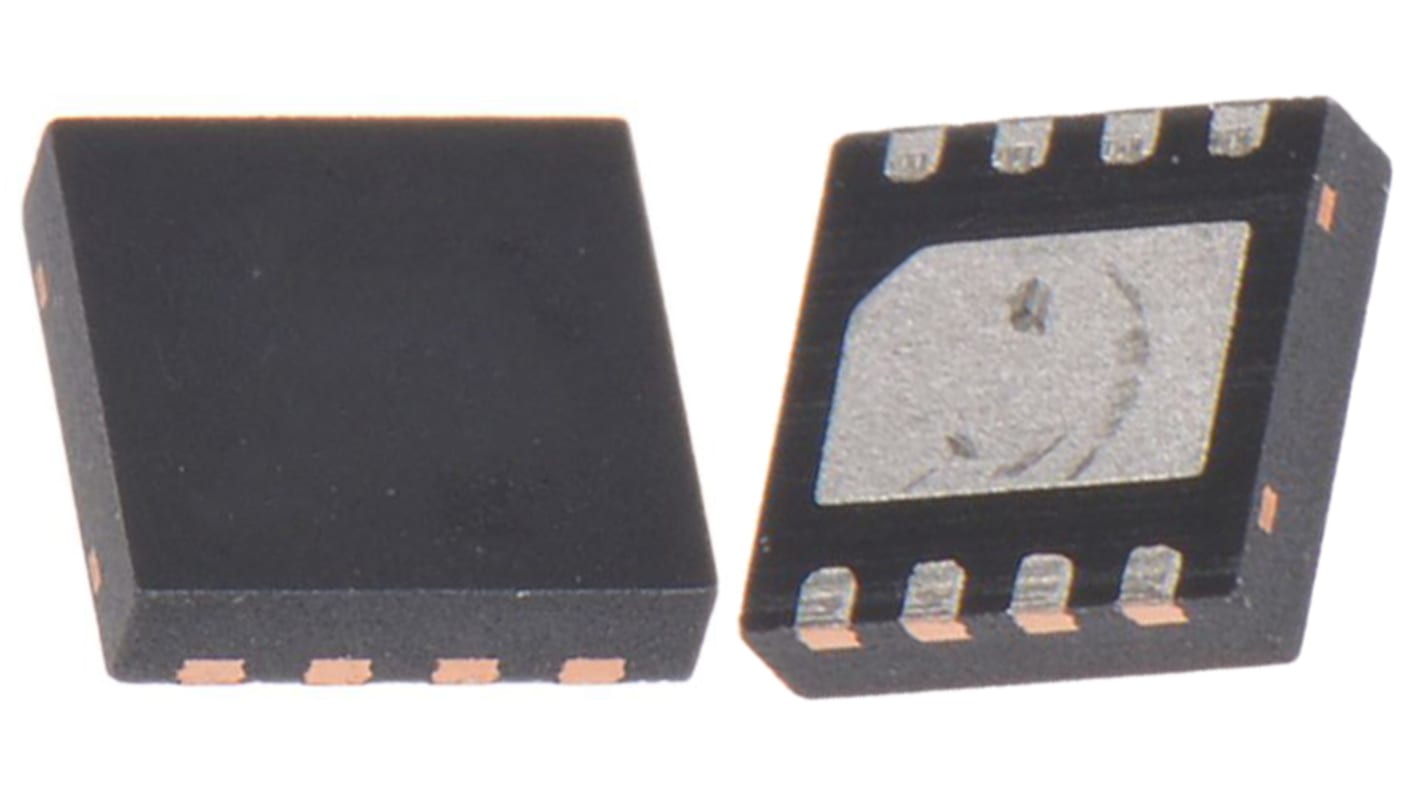

Maxim Integrated MAX1946ETA+T Power Switch IC 8-Pin, TDFN
- RS-artikelnummer:
- 190-8215
- Tillv. art.nr:
- MAX1946ETA+T
- Tillverkare / varumärke:
- Maxim Integrated
2130 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
8,567 kr
(exkl. moms)
10,709 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 10 + | 8,567 kr | 85,67 kr |
- RS-artikelnummer:
- 190-8215
- Tillv. art.nr:
- MAX1946ETA+T
- Tillverkare / varumärke:
- Maxim Integrated
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TW
Produktdetaljer
Single USB Switch in 3mm x 3mm Package
Autoreset Feature Saves System Power
Guaranteed 500mA Load Current
Built-In 20ms Fault-Blanking Circuitry
Active-High or Active-Low Control Logic
Fully Compliant to USB Specifications
2.7V to 5.5V Input Voltage Range
Fault-Indicator Output
Thermal-Overload Protection
Applications
Digital Cameras
Docking Stations
Notebook and Desktop Computers
PDAs and Palmtop Computers
USB Ports and USB Hubs
Autoreset Feature Saves System Power
Guaranteed 500mA Load Current
Built-In 20ms Fault-Blanking Circuitry
Active-High or Active-Low Control Logic
Fully Compliant to USB Specifications
2.7V to 5.5V Input Voltage Range
Fault-Indicator Output
Thermal-Overload Protection
Applications
Digital Cameras
Docking Stations
Notebook and Desktop Computers
PDAs and Palmtop Computers
USB Ports and USB Hubs
Specifikationer
Attribute | Value |
|---|---|
| Switch On Resistance | 125mΩ |
| Maximum Operating Supply Voltage | 5.5 V |
| Maximum Operating Current | 60µA |
| Protection Features | Thermal Shutdown |
| Mounting Type | Surface Mount |
| Package Type | TDFN |
| Pin Count | 8 |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Temperature | -40 °C |
| Dimensions | 3.1 x 3.1 x 0.8mm |
