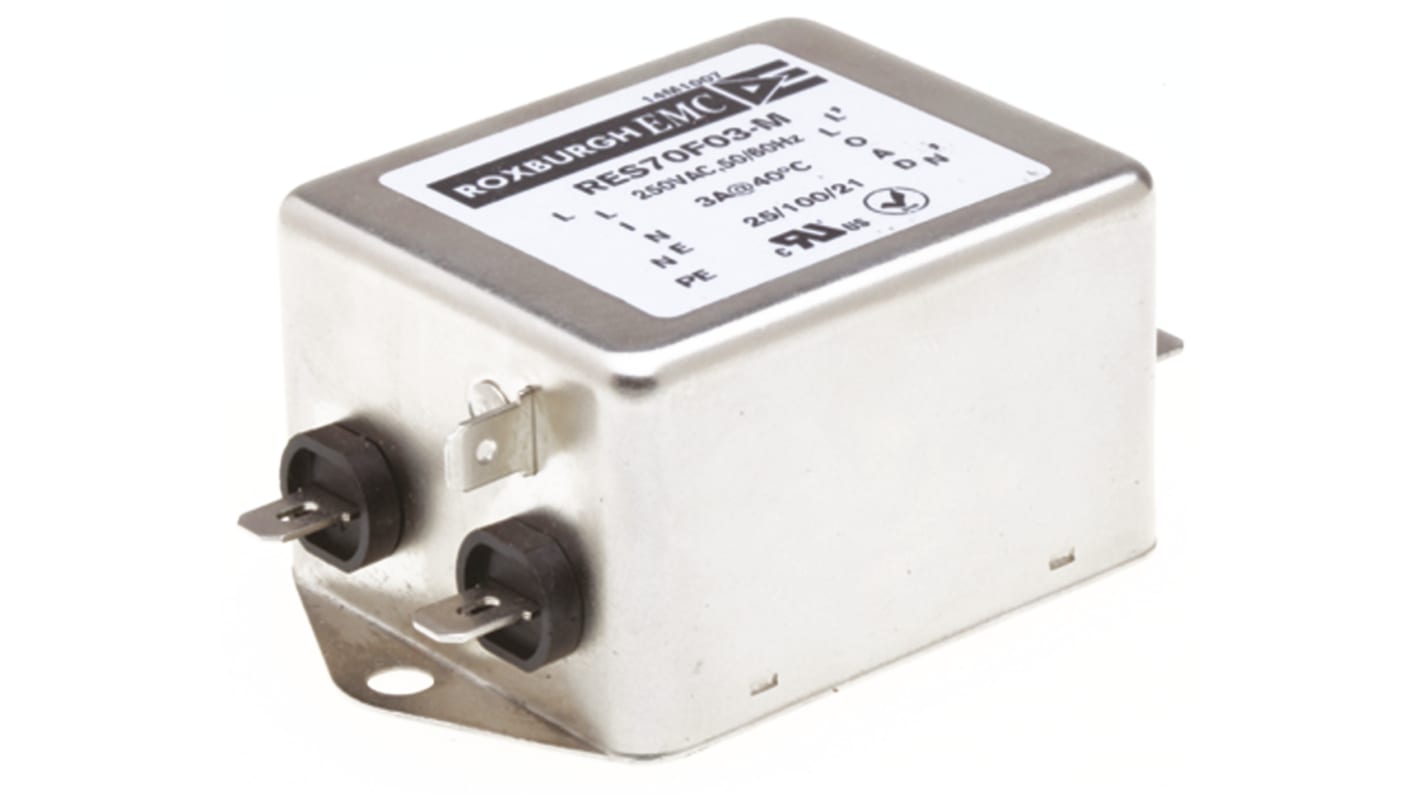

Roxburgh EMC, RES70 3A 250 V ac DC → 400Hz, Chassis Mount RFI Filter, Fast-On, Single Phase
- RS-artikelnummer:
- 806-8269
- Tillv. art.nr:
- RES70F03-M
- Tillverkare / varumärke:
- Roxburgh EMC
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
242,21 kr
(exkl. moms)
302,76 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 242,21 kr |
| 10 - 24 | 230,45 kr |
| 25 - 49 | 218,47 kr |
| 50 - 99 | 196,74 kr |
| 100 + | 189,20 kr |
- RS-artikelnummer:
- 806-8269
- Tillv. art.nr:
- RES70F03-M
- Tillverkare / varumärke:
- Roxburgh EMC
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IN
Produktdetaljer
Roxburgh EMC RES70 Series
Roxburgh EMC RES70 series multi-stage, single phase EMC filter featuring high differential and common mode attenuation. The RES70 series is designed for use in applications where high levels of noise are present such as where drives are used. Typical applications for the RES70 series include: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation.
Features & Benefits:
Multi-stage
High differential and high common mode attenuation
High frequency attenuation
For use from DC to 400Hz
1 Amp to 36 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting
High differential and high common mode attenuation
High frequency attenuation
For use from DC to 400Hz
1 Amp to 36 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting
Note
Low leakage version suitable for medical applications
Approvals
UL E191581
Specifikationer
Attribute | Value |
|---|---|
| Maximum Current Rating | 3A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | RES70 |
| Number of Stages | Multi Stage |
| Operating Frequency | DC → 400Hz |
| Length | 85mm |
| Depth | 51mm |
| Height | 38mm |
| Dimensions | 85 x 51 x 38mm |
| Inductance | 9.8 mH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 0.002 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 470kΩ |
| Standards Met | CSA 22.2 No. 8, UL 1283 |
