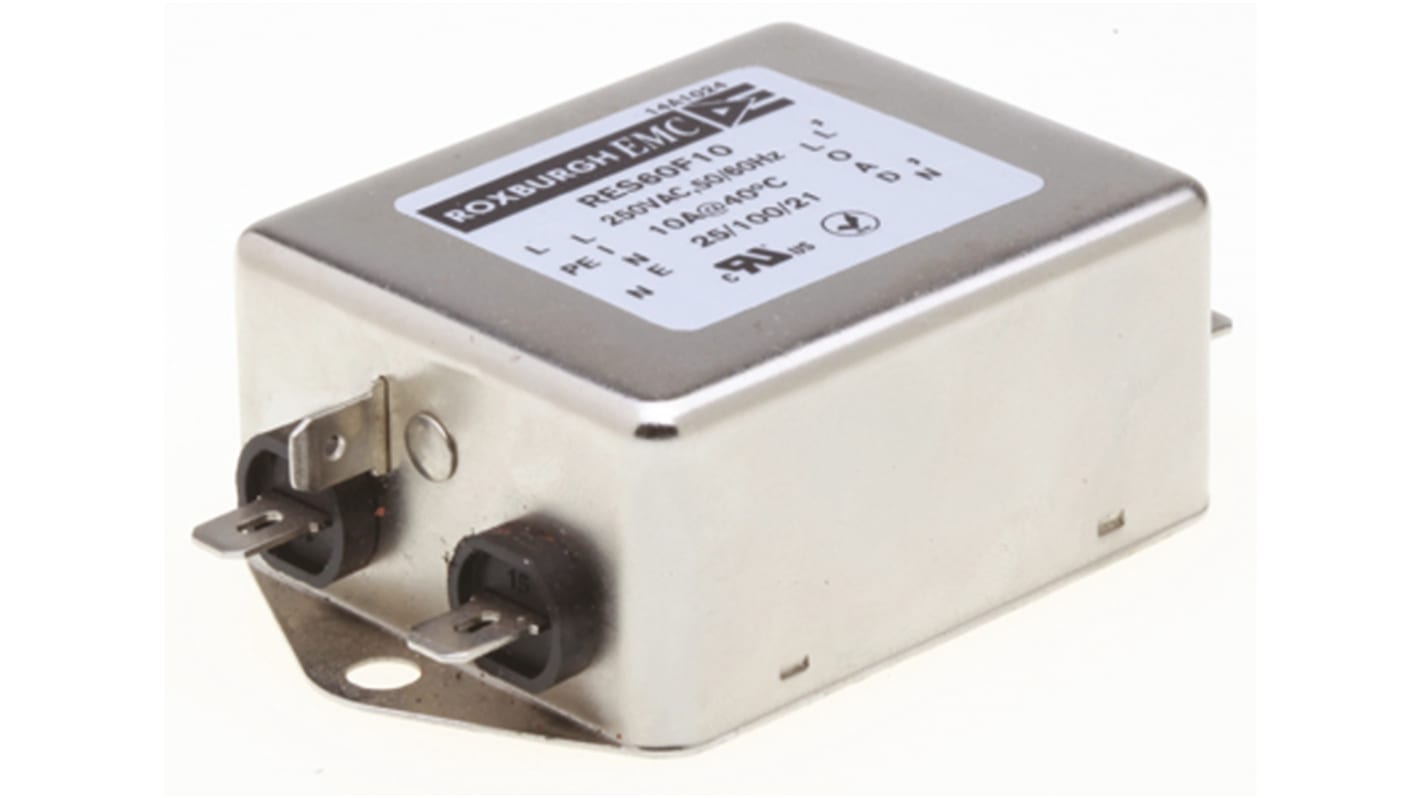

Roxburgh EMC RES60 Series 10A 250 V ac DC → 400Hz Chassis Mount RFI Filter, with Fast-On Terminals, Single Phase

  • RS-artikelnummer 806-8186
  • Tillv. art.nr RES60F10
  • Tillverkare / varumärke Roxburgh EMC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IN
Produktdetaljer

Roxburgh EMC RES60 Series

Roxburgh EMC RES60 series of multi-stage, single phase EMC filters featuring high differential and high common mode attenuation. The RES60 series is designed for use in general purpose applications where increased RFI noise is present, including: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation

Multi-stage
High differential and high common mode attenuation
For use from DC to 400Hz
1 Amp to 30 Amp
Compact size for performance
Fast-on, solder or wire terminations
Quick and easy chassis mounting

Note

Low leakage version suitable for medical applications

Approvals

UL E191581

Specifikationer
Attribute Value
Maximum Current Rating 10A
Maximum Voltage Rating 250 V ac
Mounting Type Chassis Mount
Termination Style Fast-On
Number of Phases 1
Number of Stages Multi Stage
Series RES60
Operating Frequency DC → 400Hz
Length 85mm
Depth 52mm
Capacitance 9.4 nF, 940 nF
Height 29.5mm
Inductance 1.6 mH
Dimensions 85 x 52 x 29.5mm
Minimum Operating Temperature -25°C
Leakage Current 0.74 mA
Maximum Operating Temperature +100°C
Resistance 470kΩ
Standards Met CSA 22.2 No. 8, UL 1283
104 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
181,67 kr
(exkl. moms)
227,09 kr
(inkl. moms)
Enheter
Per unit
1 - 9
181,67 kr
10 - 24
171,95 kr
25 - 49
162,44 kr
50 - 99
149,31 kr
100 +
145,59 kr
