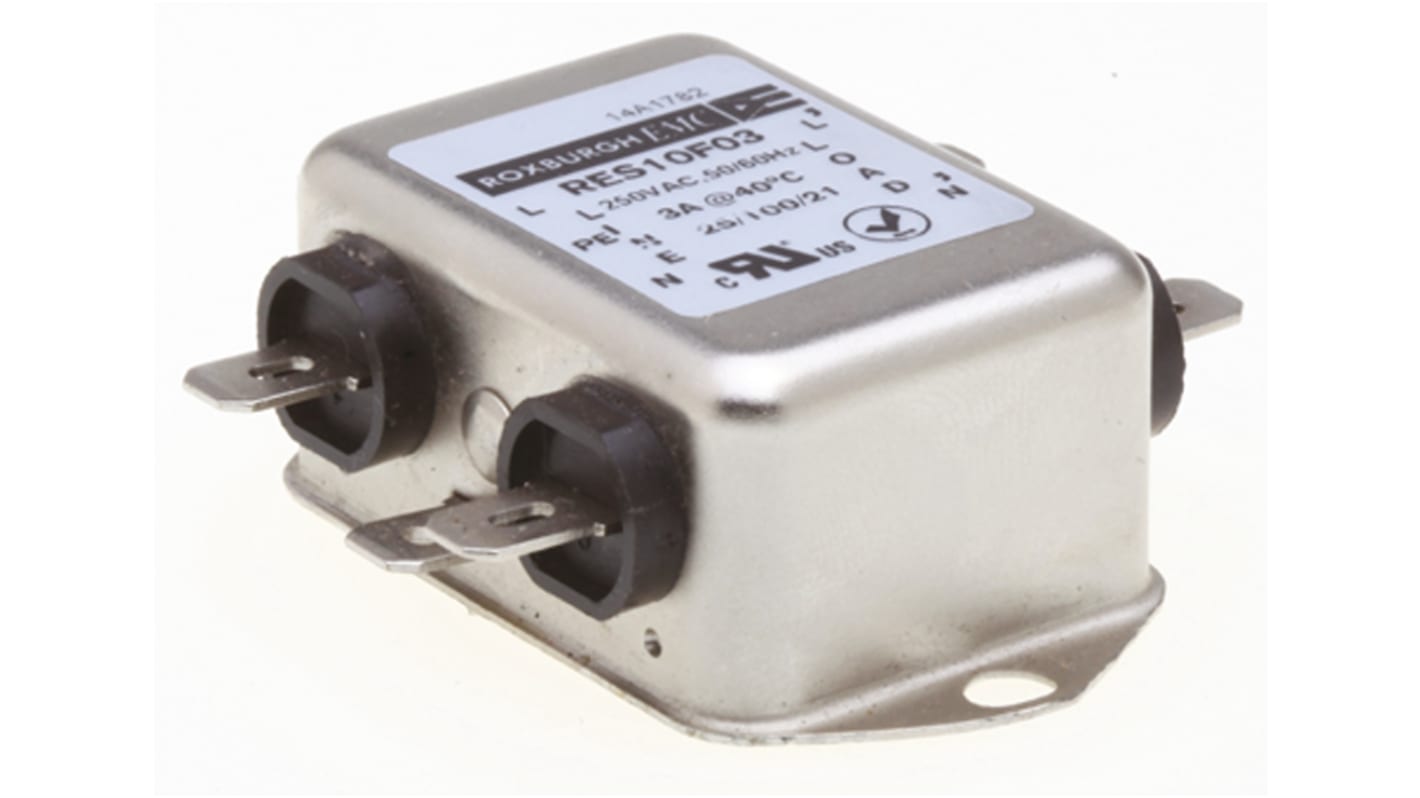

Roxburgh EMC, RES10 3A 250 V ac DC → 400Hz, Chassis Mount RFI Filter, Fast-On, Single Phase
- RS-artikelnummer:
- 806-8102
- Tillv. art.nr:
- RES10F03
- Tillverkare / varumärke:
- Roxburgh EMC
121 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
216,03 kr
(exkl. moms)
270,04 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 9 | 216,03 kr |
| 10 - 24 | 200,84 kr |
| 25 - 49 | 187,98 kr |
| 50 - 74 | 177,11 kr |
| 75 + | 164,13 kr |
- RS-artikelnummer:
- 806-8102
- Tillv. art.nr:
- RES10F03
- Tillverkare / varumärke:
- Roxburgh EMC
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IN
Produktdetaljer
Roxburgh EMC RES10 Series
Roxburgh EMC RES10 series single phase filters featuring excellent attenuation of conducted radio frequency interference (RFI). The RES10 series are designed for use in general purpose filtering applications including: electrical and electronic equipment; consumer goods; household equipment; building automation; machinery; electronic data/communication processing equipment; office automation
Compact size for rated current
For use from DC to 400Hz
Quick and easy chassis mounting
For use from DC to 400Hz
Quick and easy chassis mounting
Note
Low leakage version suitable for medical applications
Approvals
UL E191581
Specifikationer
Attribute | Value |
|---|---|
| Maximum Current Rating | 3A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | RES10 |
| Operating Frequency | DC → 400Hz |
| Length | 62mm |
| Depth | 32mm |
| Height | 22mm |
| Capacitance | 9.4 nF, 100nF |
| Dimensions | 60 x 32 x 72mm |
| Inductance | 2.5 mH |
| Leakage Current | 0.74 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Resistance | 1MΩ |
| Standards Met | CSA 22.2 No. 8, UL 1283 |
