- RS-artikelnummer:
- 782-4244
- Tillv. art.nr:
- FMBC-A91S-5510
- Tillverkare / varumärke:
- Schurter
- RS-artikelnummer:
- 782-4244
- Tillv. art.nr:
- FMBC-A91S-5510
- Tillverkare / varumärke:
- Schurter
Lagstiftning och ursprungsland
- COO (Country of Origin):
- SK
Produktdetaljer

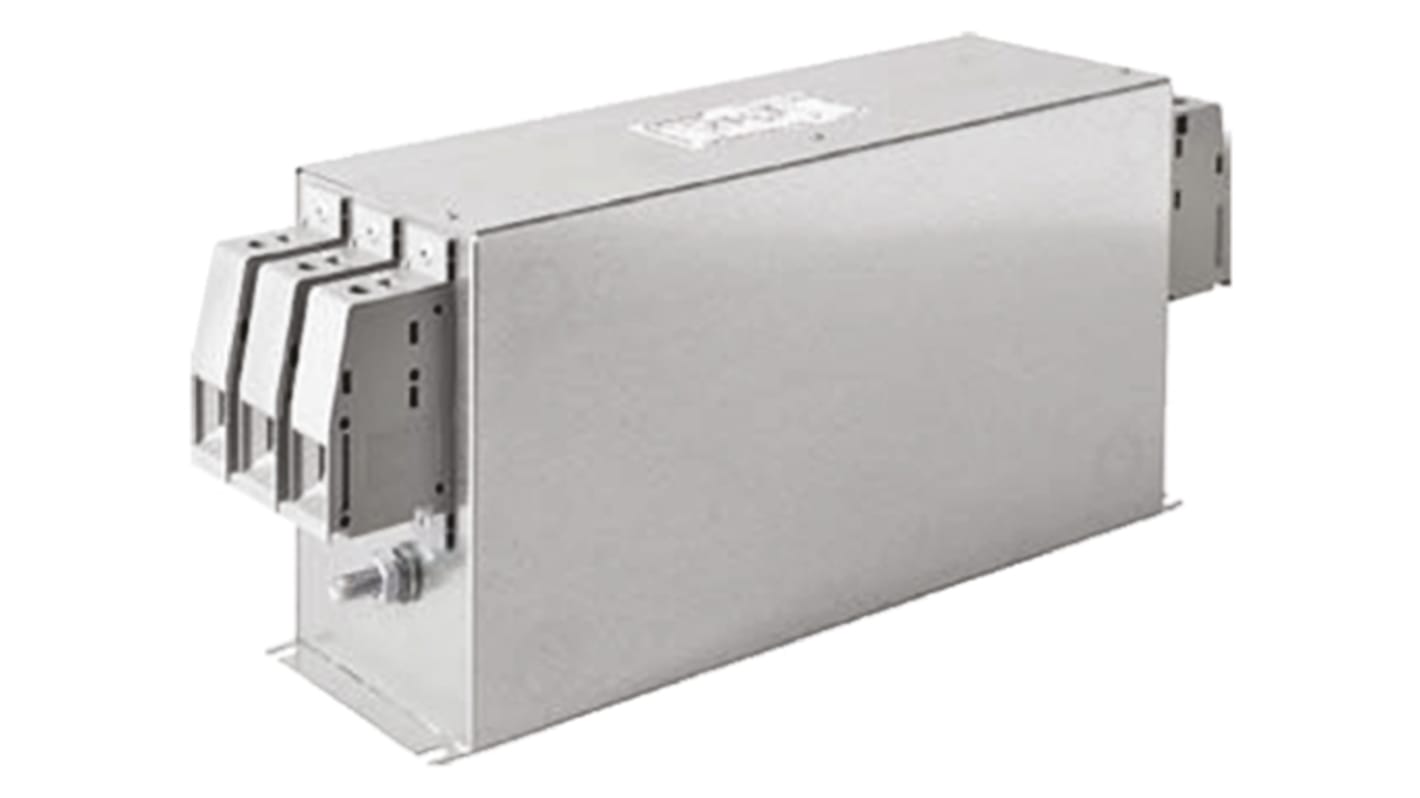

FMBC-NEO Series
Two stage metal cased chassis mount 3 phase filter
Voltage rating 480 to 520Vac 50/60Hz high attenuation type
Especially designed for industrial applications such as Frequency convertor, UPS systems etc.
Quallified for use in equipment according to IEC/EN60950
Voltage rating 480 to 520Vac 50/60Hz high attenuation type
Especially designed for industrial applications such as Frequency convertor, UPS systems etc.
Quallified for use in equipment according to IEC/EN60950
Specifikationer
Attribute | Value |
---|---|
Maximum Current Rating | 55A |
Maximum Voltage Rating | 520 V ac |
Mounting Type | Screw Mount |
Termination Style | Screw |
Number of Phases | 3 |
Number of Stages | Two Stage |
Series | FMBC NEO |
Operating Frequency | 50 → 60Hz |
Length | 260mm |
Depth | 85mm |
Height | 90mm |
Capacitance | 3.3 μF, 10µF |
Inductance | 1.8 mH, 13 μH |
Dimensions | 260 x 85 x 90mm |
Minimum Operating Temperature | -25°C |
Leakage Current | < 33 mA |
Maximum Operating Temperature | +100°C |
Resistance | 1.4mΩ |
Standards Met | UL 1283 |
Power Loss | 12.7W |
