- RS-artikelnummer:
- 782-4086
- Tillv. art.nr:
- 5500.2265
- Tillverkare / varumärke:
- Schurter
- RS-artikelnummer:
- 782-4086
- Tillv. art.nr:
- 5500.2265
- Tillverkare / varumärke:
- Schurter
Lagstiftning och ursprungsland
Produktdetaljer

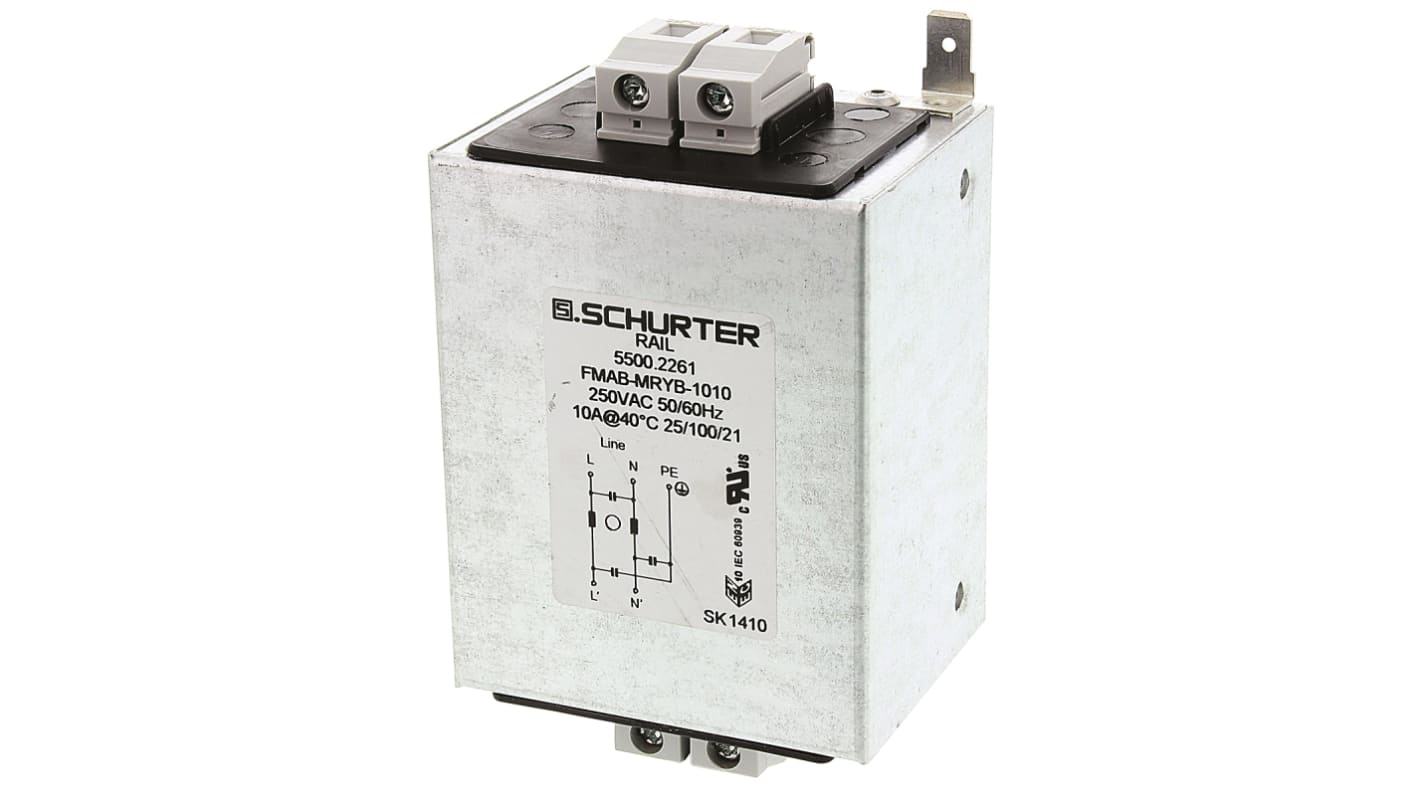

FMBB-rail Series AC Filters DIN Rail Mount
DIN rail mounting two stage single phase broad band attenuation filter in a metal housing
Designed for for industrial applications such as electric switch and control cabinets
Especially effective against symmetrical and asymmetrical interferences in the frequency range 10kHz up to 30MHz
Qualified for use in equipment according to IEC?EN 60950
Designed for for industrial applications such as electric switch and control cabinets
Especially effective against symmetrical and asymmetrical interferences in the frequency range 10kHz up to 30MHz
Qualified for use in equipment according to IEC?EN 60950
Specifikationer
Attribute | Value |
---|---|
Maximum Current Rating | 3A |
Maximum Voltage Rating | 250 V ac |
Mounting Type | DIN Rail |
Termination Style | Screw |
Number of Phases | 1 |
Series | FMBB RAIL |
Number of Stages | Two Stage |
Operating Frequency | 50 → 60Hz |
Length | 102mm |
Depth | 61mm |
Height | 48mm |
Capacitance | 1.5 nF, 100 nF, 680nF |
Inductance | 12 x 2 mH |
Dimensions | 102 x 61 x 48mm |
Minimum Operating Temperature | -25°C |
Leakage Current | 0.25 mA |
Maximum Operating Temperature | +100°C |
Resistance | 1MΩ |
Standards Met | EN 60950 |
