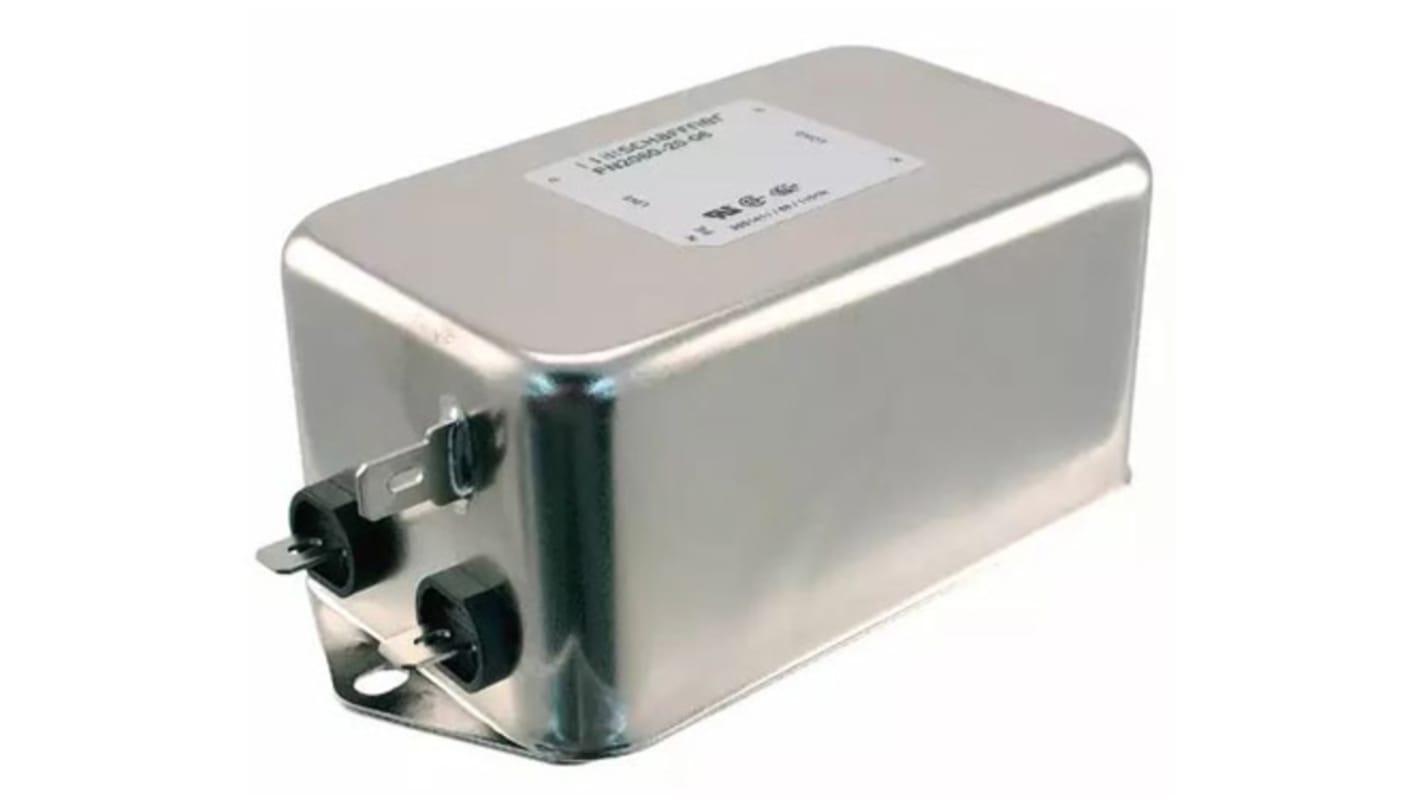

Schaffner, FN2060 20A 250 V ac 400Hz, Chassis Mount EMI Filter, Tab, Single Phase

  • RS-artikelnummer 776-1131
  • Tillv. art.nr FN2060-20-06
  • Tillverkare / varumärke Schaffner
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

FN 2060 Series

Schaffner's FN2060 two-stage filters are designed for easy and fast chassis mounting. All filters provide a high conducted attenuation performance, based on chokes with high saturation resistance and excellent thermal behaviour.

Can be used in a wide range of applications such as electrical and electronic equipment, building automation, industrial applications, machinery, medical equipment and various noisy applications requiring good filter performance.

Two-stage chassis mount filters in aluminium case
Extra stage improves common mode performance
Connection by 0.25in Faston terminals
Rated currents from 1 → 30 A
High differential and common-mode attenuation
Optional medical versions (B type)
Optional safety versions (A type)

Note

FN2060 filters are also available as single-stage filters (FN2010 series)

Approvals

UL recognised, CSA, VDE.

//media.rs-online.com/t_line/L219287-10.gif
Specifikationer
Attribute Value
Maximum Current Rating 20A
Maximum Voltage Rating 250 V ac
Mounting Type Chassis Mount
Termination Style Tab
Number of Phases 1
Series FN2060
Number of Stages Two Stage
Operating Frequency 400Hz
Length 113.5mm
Depth 45.4mm
Capacitance 1 μF, 4.7 nF
Height 57.5mm
Dimensions 113.5 x 45.4 x 57.5mm
Inductance 600 μH
Minimum Operating Temperature -25°C
Leakage Current 0.734 mA
Maximum Operating Temperature +100°C
Resistance 220kΩ
9 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
463,44 kr
(exkl. moms)
579,30 kr
(inkl. moms)
Enheter
Per unit
1 - 4
463,44 kr
5 - 9
397,16 kr
10 +
358,28 kr
