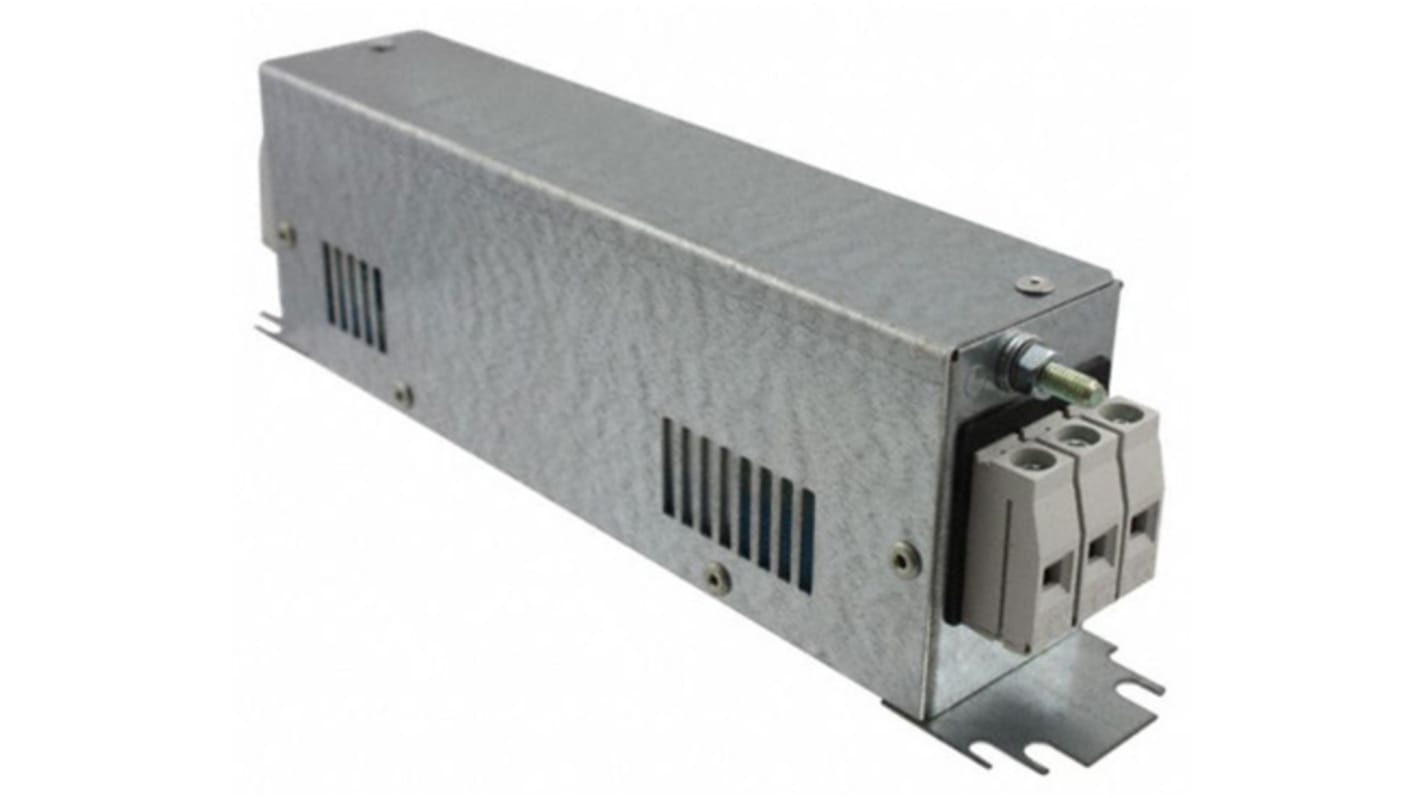

Schurter, FMAC ECO 25A 480 V ac 60Hz, Flange Mount RFI Filter, Screw 3 Phase
- RS-artikelnummer:
- 708-5679
- Tillv. art.nr:
- FMAC-091C-2510
- Tillverkare / varumärke:
- Schurter
Tillfälligt slut i lager – restorder för leverans 2024-05-20
Lagt till varukorgen
Pris (ex. moms) Varje
1 523,88 kr
(exkl. moms)
1 904,85 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 1 523,88 kr |
| 5 - 9 | 1 447,80 kr |
| 10 + | 1 383,70 kr |
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
- RS-artikelnummer:
- 708-5679
- Tillv. art.nr:
- FMAC-091C-2510
- Tillverkare / varumärke:
- Schurter
Lagstiftning och ursprungsland
Produktdetaljer
FMAC Series
Schurter FMAC series single stage power line filter for 3-phase systems. The FMAC series is designed for use in photovoltaic systems and industrial applications to offer protection against interference voltage form the mains supply. The FMAC series features high symmetrical and asymmetrical attenuation and a wide frequency range offer of 10kHz up to 300MHz.
High attenuation
Screw clamp terminals
Voltage rating 480 and 520 V ac for worldwide acceptance
Qualified for use in equipment according IEC/EN 60950
Screw clamp terminals
Voltage rating 480 and 520 V ac for worldwide acceptance
Qualified for use in equipment according IEC/EN 60950
Standards
IEC 60939, UL 1283
Approvals
VDE, UL
Specifikationer
Attribute | Value |
|---|---|
| Maximum Current Rating | 25A |
| Maximum Voltage Rating | 480 V ac |
| Mounting Type | Flange Mount |
| Termination Style | Screw |
| Number of Phases | 3 |
| Series | FMAC ECO |
| Number of Stages | Single Stage |
| Operating Frequency | 60Hz |
| Length | 45.5mm |
| Depth | 250mm |
| Height | 70mm |
| Capacitance | 2.2µF |
| Dimensions | 45.5 x 250 x 70mm |
| Inductance | 450 μH |
| Minimum Operating Temperature | -25°C |
| Leakage Current | 8.9 mA |
| Maximum Operating Temperature | +100°C |
| Resistance | 4.1mΩ |
| Standards Met | IEC 60939, UL 1283 |
| Power Loss | 8W |
