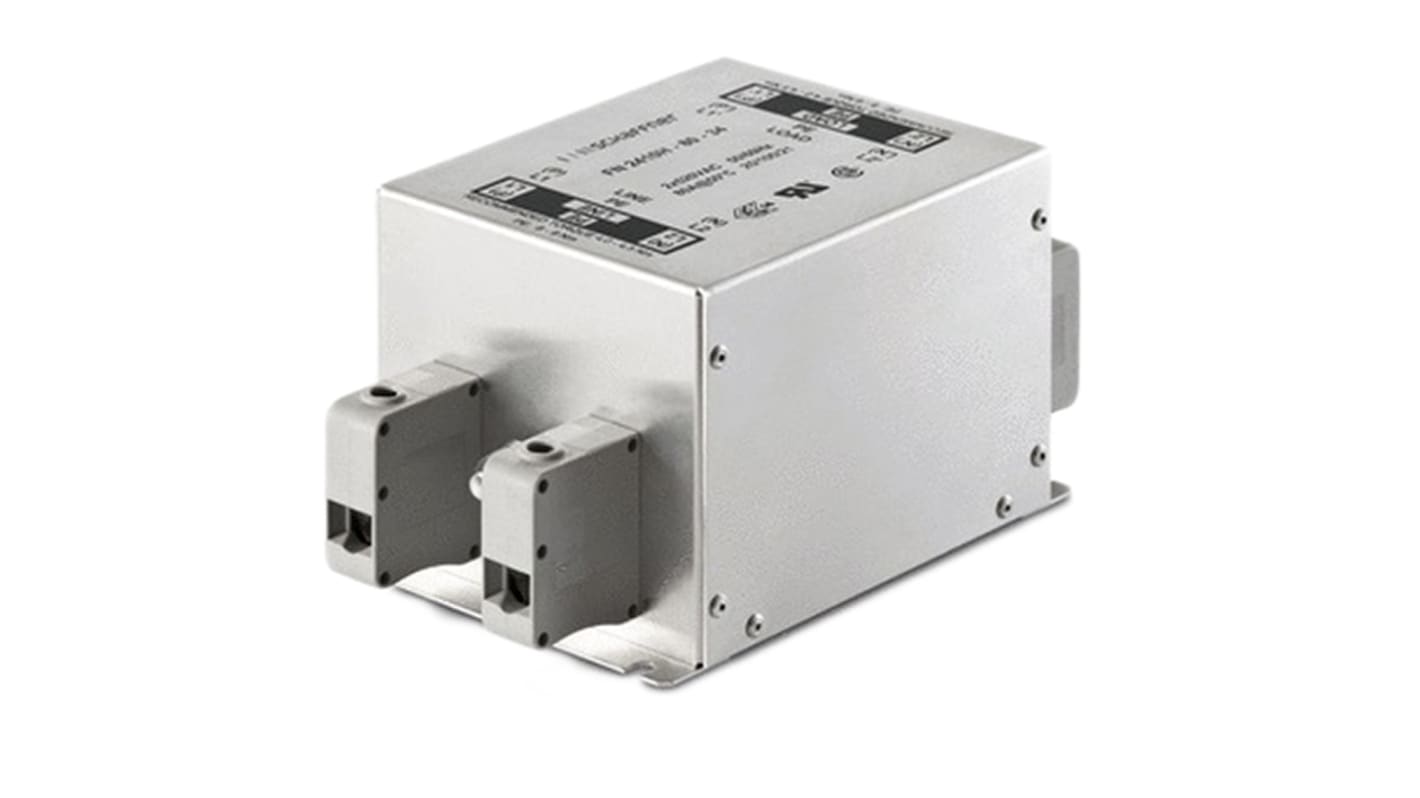

Schaffner, FN2410 45A 250 V ac 400Hz, Chassis Mount EMC Filter, Terminal Block, Single Phase
- RS-artikelnummer:
- 518-6238
- Tillv. art.nr:
- FN2410-45-33
- Tillverkare / varumärke:
- Schaffner
8 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
1 103,12 kr
(exkl. moms)
1 378,90 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 1 103,12 kr |
| 5 - 9 | 1 041,35 kr |
| 10 - 24 | 1 013,74 kr |
| 25 + | 986,23 kr |
- RS-artikelnummer:
- 518-6238
- Tillv. art.nr:
- FN2410-45-33
- Tillverkare / varumärke:
- Schaffner
Lagstiftning och ursprungsland
Produktdetaljer
FN2410 Series
For applications with high interference levels
Current ratings up to 100A
Current ratings up to 100A
Standards
EN 133 200
Approvals
UL1283, CSA22.2 No.8 1986
Specifikationer
Attribute | Value |
|---|---|
| Maximum Current Rating | 45A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Terminal Block |
| Number of Phases | 1 |
| Series | FN2410 |
| Number of Stages | Single Stage |
| Operating Frequency | 400Hz |
| Length | 158mm |
| Depth | 93mm |
| Height | 76mm |
| Dimensions | 158 x 93 x 76mm |
| Leakage Current | 3.4 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
| Power Loss | 7.4W |
