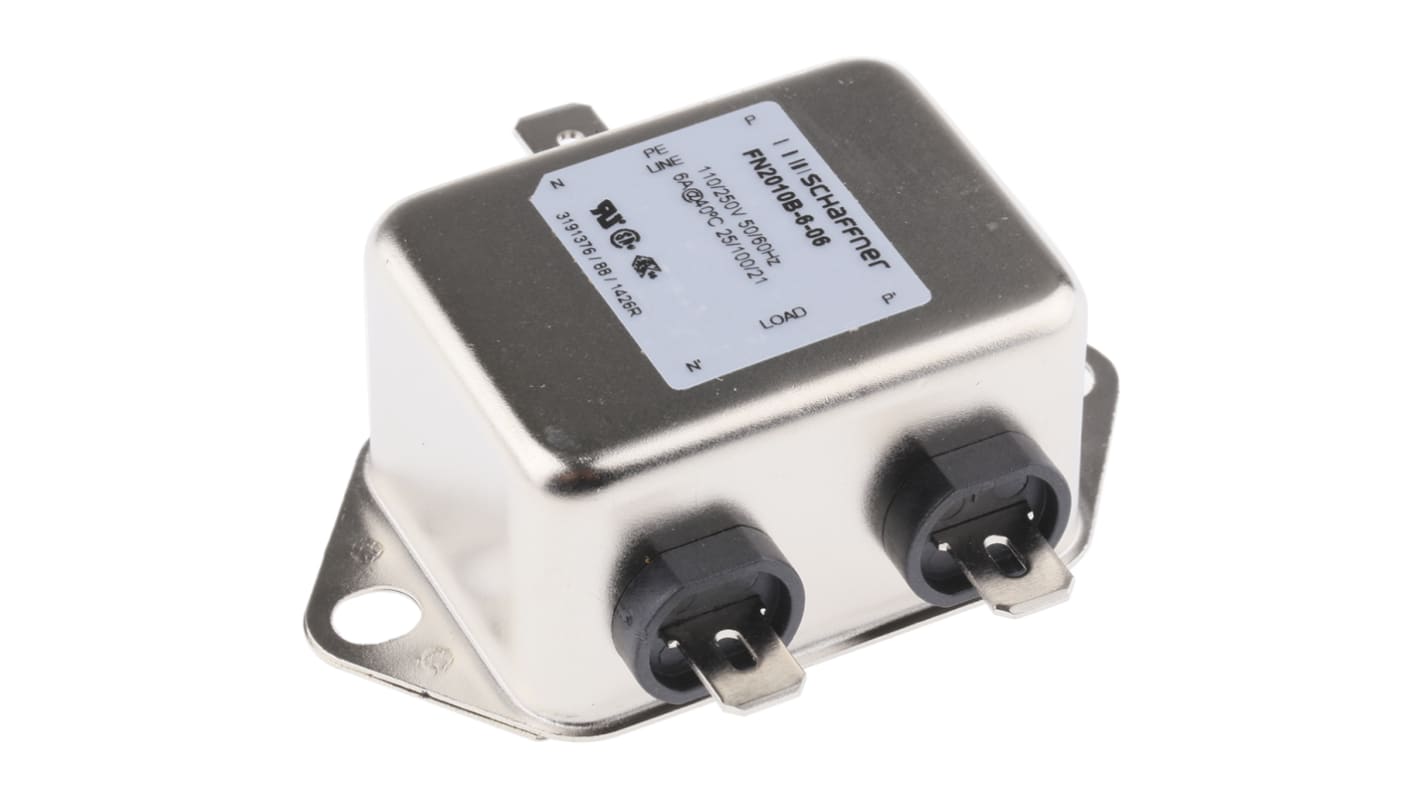

Schaffner, FN2010B 6A 250 V ac 400Hz, Chassis Mount RFI Filter, Tab

  • RS-artikelnummer 455-8856
  • Tillv. art.nr FN2010B-6-06
  • Tillverkare / varumärke Schaffner
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

FN2010B Series

Schaffner FN2010 series general purpose EMI filters are designed for fast and easy chassis mounting. They provide a general purpose conducted attenuation performance, based on chokes with high
saturation resistance and excellent thermal behaviour. These filters cover a wide range of usage and offer a good size/ampage ratio.

Applications

Consumer goods
Electrical and electronic equipment
Household equipment
Medical equipment
equipment
Datacom equipment
Office automation equipment

Approvals

UL recognised component, CSA certified, VDE

Specifikationer
Attribute Value
Maximum Current Rating 6A
Maximum Voltage Rating 250 V ac
Mounting Type Chassis Mount
Termination Style Tab
Number of Stages Single Stage
Series FN2010B
Operating Frequency 400Hz
Length 64mm
Depth 35mm
Capacitance 4.7 nF, 100 nF
Height 24.3mm
Inductance 1 mH
Dimensions 64 x 35 x 24.3mm
Leakage Current 0.002 mA
Minimum Operating Temperature -25°C
Maximum Operating Temperature +100°C
Resistance 1MΩ
99 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
100,40 kr
(exkl. moms)
125,50 kr
(inkl. moms)
Enheter
Per unit
1 - 9
100,40 kr
10 - 49
95,02 kr
50 - 99
81,38 kr
100 - 199
77,86 kr
200 +
75,90 kr
