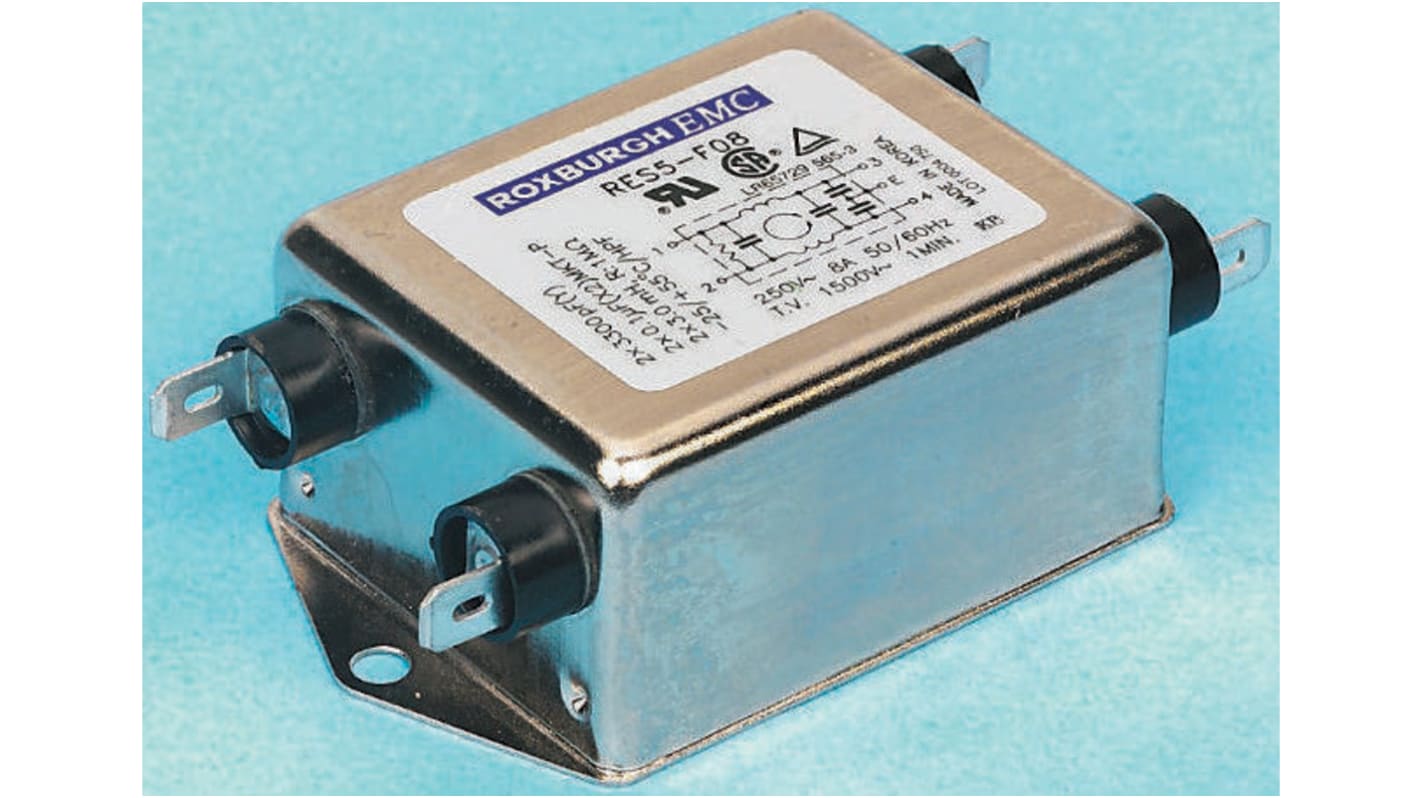

RS PRO 5A 250 V ac 50/60Hz, Chassis Mount RFI Filter, Fast-On, Single Phase
- RS-artikelnummer:
- 386-4239
- Tillverkare / varumärke:
- RS PRO
24 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
344,50 kr
(exkl. moms)
430,62 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 344,50 kr |
| 5 - 9 | 323,71 kr |
| 10 - 24 | 299,65 kr |
| 25 - 49 | 282,36 kr |
| 50 + | 256,65 kr |
- RS-artikelnummer:
- 386-4239
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
RES5F Series
Available in 5 current ratings
Meets UL 1283 and overvoltage II category of IEC 664
250 Faston terminals
Meets UL 1283 and overvoltage II category of IEC 664
250 Faston terminals
Approvals
UL recognised component, CSA certified, TUV
Approvals
UL; CSA; TUV
Specifikationer
Attribute | Value |
|---|---|
| Maximum Current Rating | 5A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Fast-On |
| Number of Phases | 1 |
| Series | RES5F |
| Number of Stages | Single Stage |
| Operating Frequency | 50/60Hz |
| Length | 87.3mm |
| Depth | 51.8mm |
| Height | 32mm |
| Capacitance | 3.3 nF, 100nF |
| Dimensions | 87.3 x 51.8 x 32mm |
| Inductance | 5 mH |
| Leakage Current | 0.5 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +85°C |
| Resistance | 1MΩ |
