- RS-artikelnummer:
- 336-7952
- Tillverkare / varumärke:
- Block
- RS-artikelnummer:
- 336-7952
- Tillverkare / varumärke:
- Block
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer

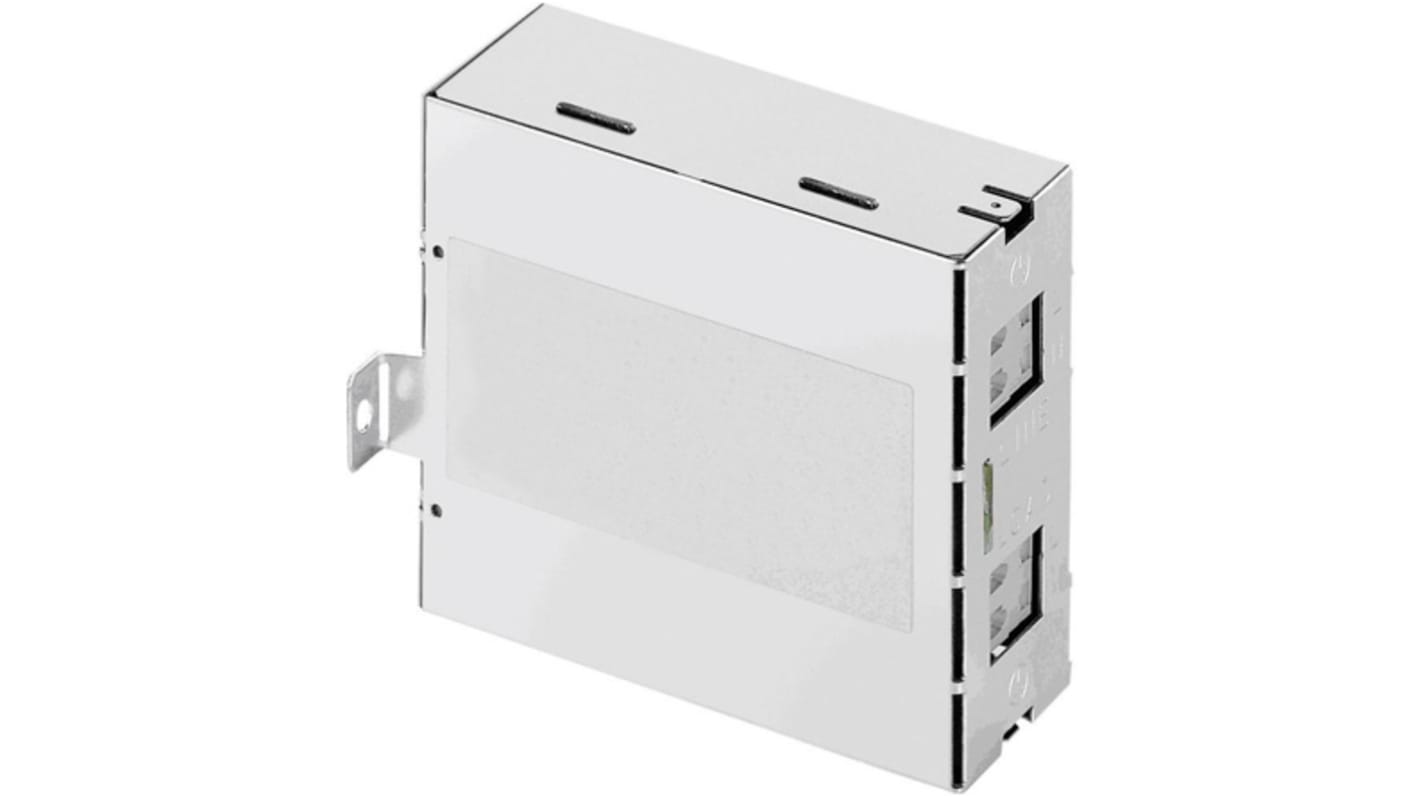

HFE 156-230/X Series
High insertion loss over a wide frequency range
High asymmetrical interference suppression
Ideal for supply-side suppression of frequency converters
Screened by sheet steel enclosure
Din rail mount
2.5mm2 spring tension clamps
Dual earth connection with standard tab connector 6.3x0.8mm
High asymmetrical interference suppression
Ideal for supply-side suppression of frequency converters
Screened by sheet steel enclosure
Din rail mount
2.5mm2 spring tension clamps
Dual earth connection with standard tab connector 6.3x0.8mm
Specifikationer
Attribute | Value |
---|---|
Maximum Current Rating | 3A |
Maximum Voltage Rating | 250 V ac |
Mounting Type | DIN Rail |
Termination Style | Tab |
Number of Phases | 1 |
Series | HFE 156 |
Number of Stages | Single Stage |
Operating Frequency | 50 → 60Hz |
Length | 40mm |
Depth | 107mm |
Height | 85mm |
Dimensions | 40 x 107 x 85mm |
Leakage Current | 8 mA |
Maximum Operating Temperature | +45°C |
Standards Met | EN 60939-2 |
Power Loss | 1.8W |
