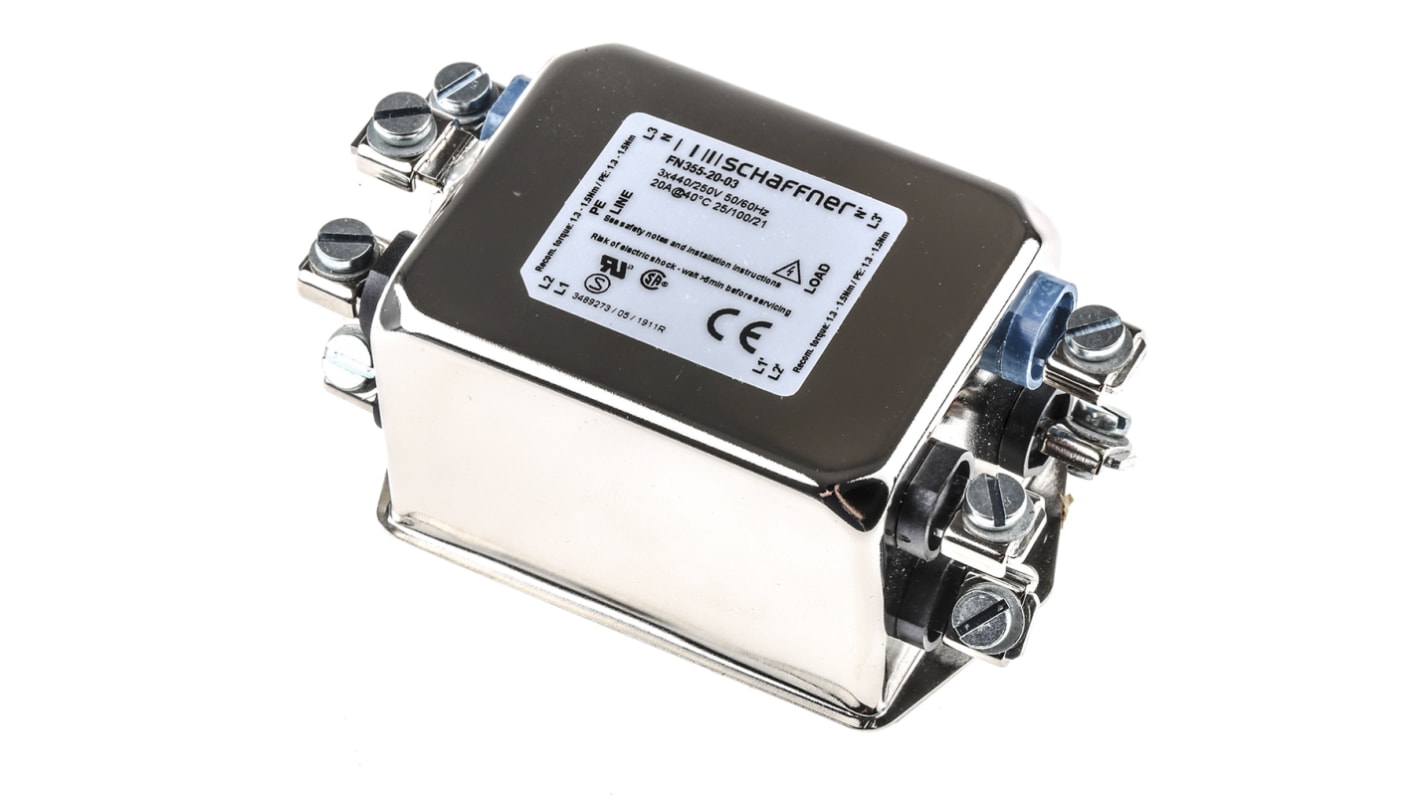

Schaffner FN 355 Series 20A 440 V ac 400Hz Flange Mount RFI Filter, with Screw Terminals 3 Phase

  • RS-artikelnummer 219-3211
  • Tillv. art.nr FN 355-20-03
  • Tillverkare / varumärke Schaffner
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

FN355 Series

The FN355 series of EMC/EMI line filters from Schaffner provide exceptionally low operating leakage current. Offered in 3 phase and neutral options, FN355 line filters can be used in a range of applications and are a cost effective interference suppression solution. With a space saving compact design, these four wire line filters are ideal for applications where space is restricted.

Constructed with metal housing, these EMI filters use a single stage four wire LC circuit. Different current rating options are available.

Product Application Information

Suitable applications include star and delta power networks, medical equipment, office equipment and general purpose four wire filtering.

//media.rs-online.com/t_line/LF167829-10.gif
Specifikationer
Attribute Value
Maximum Current Rating 20A
Maximum Voltage Rating 440 V ac
Mounting Type Flange Mount
Termination Style Screw
Number of Phases 3
Number of Stages Single Stage
Series FN 355
Operating Frequency 400Hz
Length 85mm
Depth 54mm
Height 40.3mm
Dimensions 85 x 54 x 40.3mm
Leakage Current 0.29 mA
Minimum Operating Temperature -25°C
Maximum Operating Temperature +100°C
CAD Drawing 3D CAD Model
Power Loss 3.4W
89 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
496,32 kr
(exkl. moms)
620,40 kr
(inkl. moms)
Enheter
Per unit
1 - 4
496,32 kr
5 - 9
471,50 kr
10 +
448,24 kr
