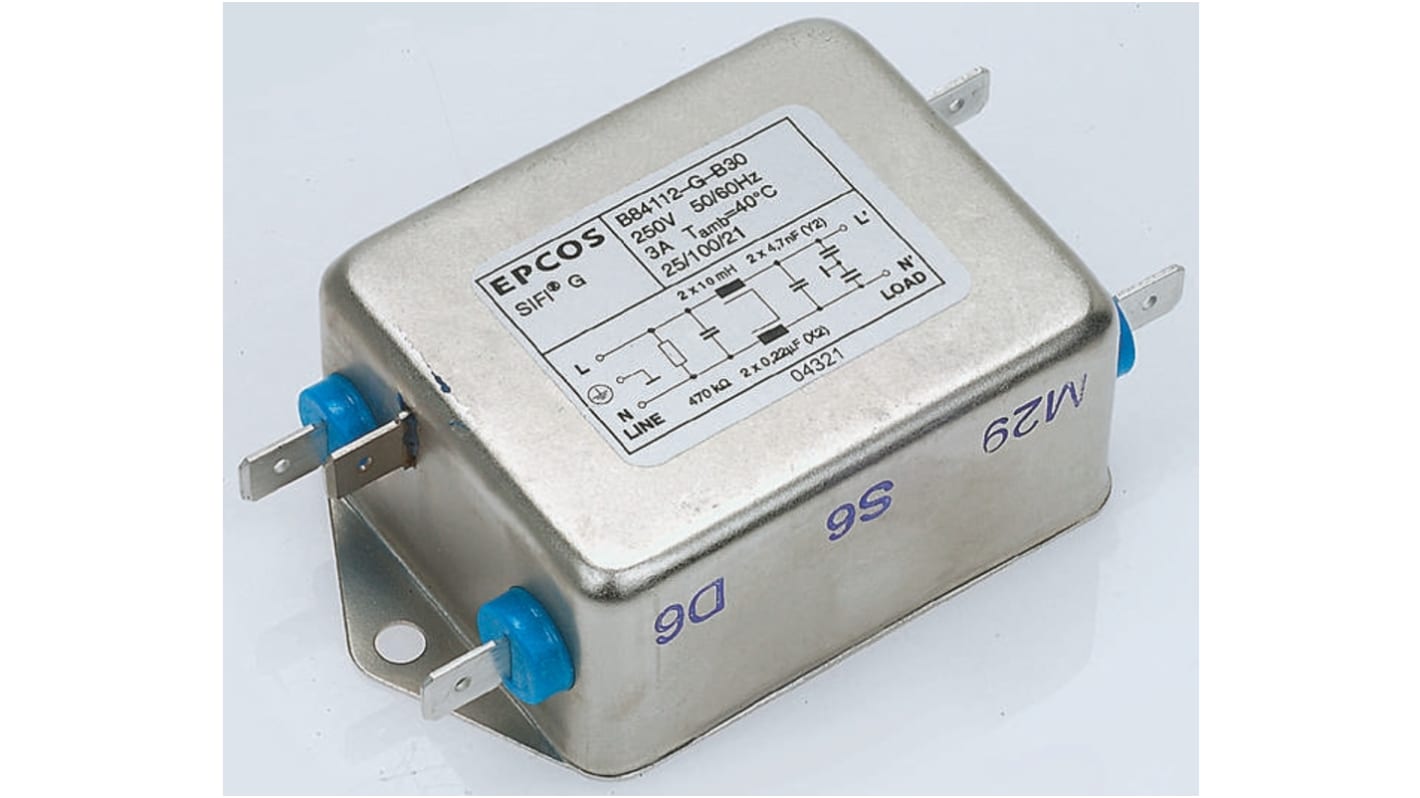

EPCOS, B84112G 10A 250 V ac 50 → 60Hz, Chassis Mount EMC Filter, Screw, Single Phase
- RS-artikelnummer:
- 167-8307
- Tillv. art.nr:
- B84112G0000B110
- Tillverkare / varumärke:
- EPCOS
Tillfälligt slut i lager – restorder för leverans 2024-04-22
Lagt till varukorgen
Pris (ex. moms) Var (i en låda med 24)
216,548 kr
(exkl. moms)
270,685 kr
(inkl. moms)
| Enheter | Per unit | Per Box* |
| 24 - 216 | 216,548 kr | 5 197,152 kr |
| 240 - 456 | 185,698 kr | 4 456,752 kr |
| 480 - 576 | 180,679 kr | 4 336,296 kr |
| 600 - 1176 | 175,924 kr | 4 222,176 kr |
| 1200 + | 171,503 kr | 4 116,072 kr |
- RS-artikelnummer:
- 167-8307
- Tillv. art.nr:
- B84112G0000B110
- Tillverkare / varumärke:
- EPCOS
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
B84112-G Series
TDK B84112-G Series are power filters for single phase systems. Compact in design and easy to install, Constricted of 2 line filters and a metal case.SIFI-G for enhanced insertion loss. Rated voltage VR: 250 V AC/DC.Rated current IR: 2 A to 36 A
Applications
Industrial electronics
Switch-mode power supplies
Telecom systems
Data systems
DC applications
Medical equipment (version B84112G0000M*)
Switch-mode power supplies
Telecom systems
Data systems
DC applications
Medical equipment (version B84112G0000M*)
Specifikationer
Attribute | Value |
|---|---|
| Maximum Current Rating | 10A |
| Maximum Voltage Rating | 250 V ac |
| Mounting Type | Chassis Mount |
| Termination Style | Screw |
| Number of Phases | 1 |
| Number of Stages | Single Stage |
| Series | B84112G |
| Operating Frequency | 50 → 60Hz |
| Length | 52mm |
| Depth | 89.5mm |
| Capacitance | 0.68 x 2 μF, 4700 x 2pF |
| Height | 29mm |
| Dimensions | 52 x 89.5 x 29mm |
| Inductance | 1.8 x 2 mH |
| Leakage Current | 0.369 mA |
| Minimum Operating Temperature | -25°C |
| Maximum Operating Temperature | +100°C |
