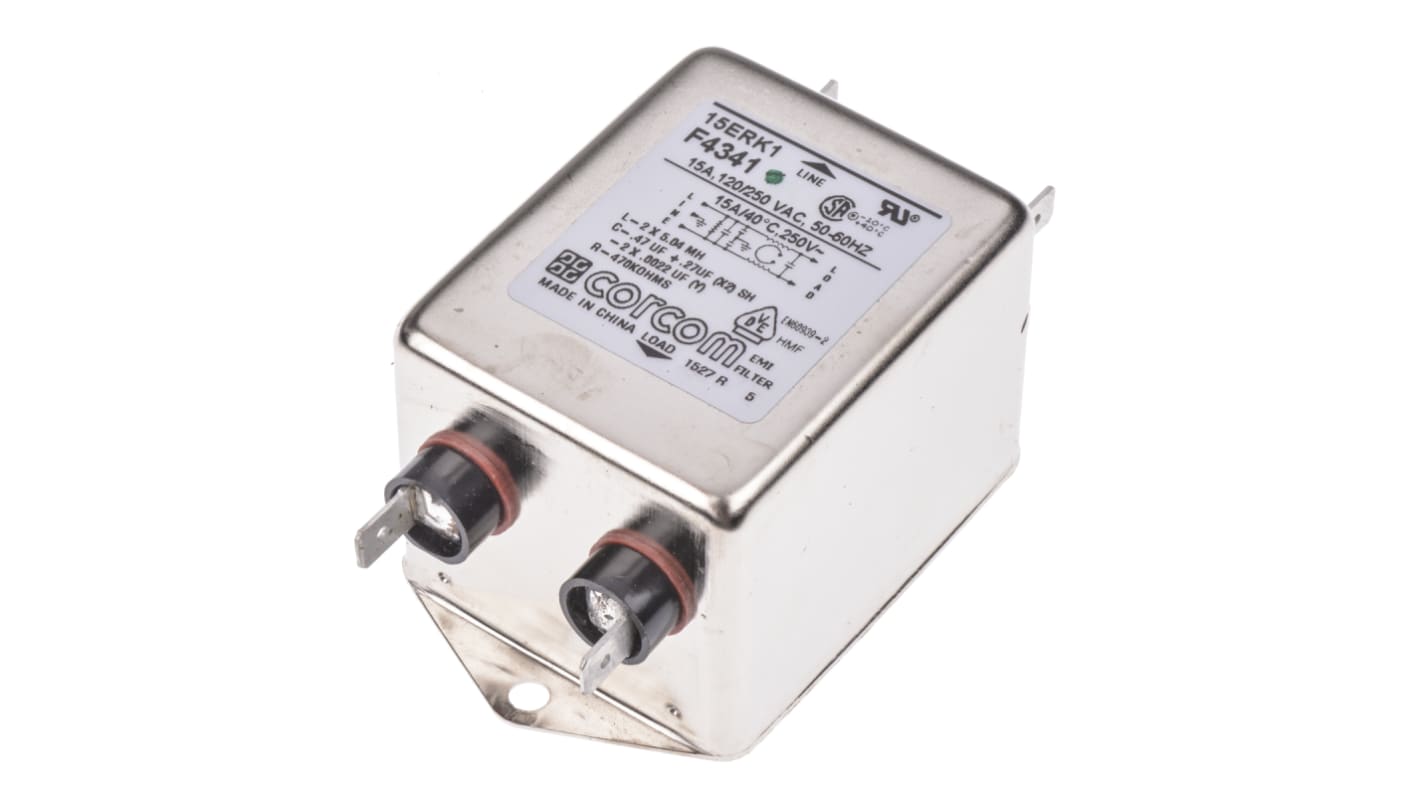

TE Connectivity, Corcom RK 15A 250 V ac 50 Hz, 60 Hz, Flange Mount RFI Filter, Spade, Single Phase


36 I lager för leverans inom 1 arbetsdagar
Add to Basket

Pris (ex. moms) Each (In a Bag of 12)

321,979 kr

(exkl. moms)

402,474 kr

(inkl. moms)

Enheter

Lagt till varukorgen

RS-artikelnummer:
161-3821
Tillv. art.nr:
2-1609089-6
Tillverkare / varumärke:
TE Connectivity
COO (Country of Origin):
CN
EnheterPer unitPer Bag*
12 - 48321,979 kr3 863,748 kr
60 +301,368 kr3 616,416 kr
*price indicative

Corcom RK Series High Performance Compact Power Line Filter


Corcom filters are recognized worldwide for providing EMI/RFI filtering solutions. TE offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE.

The RK series of power line filters offer a single stage, compact solution. These line filters provide significant differential mode performance and are suitable for use in portable equipment due to the low input leakage current. These filters are ideal for wide band RFI suppression for applications that require a high attenuation level. This includes small machine tools, power supplies, home appliances and industrial machinery.


Single stage
Screw mounting
Spade terminals
Chassis mount
Suitable for industrial machinery


Approvals

UL, CSA and VDE

AttributeValue
Maximum Current Rating15A
Maximum Voltage Rating250 V ac
Mounting TypeFlange Mount
Termination StyleSpade
Number of Phases1
SeriesCorcom RK
Operating Frequency50 Hz, 60 Hz
Length97.8mm
Depth45.2mm
Height52.6mm
Dimensions97.8 x 45.2 x 52.6mm
Minimum Operating Temperature-10°C
Maximum Operating Temperature+40°C
