- RS-artikelnummer:
- 188-8553
- Tillv. art.nr:
- L6563HTR
- Tillverkare / varumärke:
- STMicroelectronics
5000 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
15,437 kr
(exkl. moms)
19,296 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
10 - 90 | 15,437 kr | 154,37 kr |
100 - 490 | 10,547 kr | 105,47 kr |
500 - 990 | 9,97 kr | 99,70 kr |
1000 - 2490 | 8,939 kr | 89,39 kr |
2500 + | 8,717 kr | 87,17 kr |
- RS-artikelnummer:
- 188-8553
- Tillv. art.nr:
- L6563HTR
- Tillverkare / varumärke:
- STMicroelectronics
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
On-board 700 V start-up source
Tracking boost function
Fast bidirectional input voltage feedforward (1/V2 correction)
Interface for cascaded converter's PWM controller
Remote ON/OFF control
Accurate adjustable output overvoltage protection
Protection against feedback loop disconnection (latched shutdown)
Inductor saturation protection
Low (≤ 100 μA) start-up current
6 mA max. operating bias current
1% (at TJ = 25 °C) internal reference voltage
-600/+800 mA totem pole gate driver with active pull-down during UVLO
Applications
PFC pre-regulators for:
Hi-end AC-DC adapter/charger
SMPS for LED luminaires
Tracking boost function
Fast bidirectional input voltage feedforward (1/V2 correction)
Interface for cascaded converter's PWM controller
Remote ON/OFF control
Accurate adjustable output overvoltage protection
Protection against feedback loop disconnection (latched shutdown)
Inductor saturation protection
Low (≤ 100 μA) start-up current
6 mA max. operating bias current
1% (at TJ = 25 °C) internal reference voltage
-600/+800 mA totem pole gate driver with active pull-down during UVLO
Applications
PFC pre-regulators for:
Hi-end AC-DC adapter/charger
SMPS for LED luminaires
Specifikationer
Attribute | Value |
---|---|
Maximum Switching Frequency | 70 kHz |
Start-up Supply Current | 150µA |
IC Type | Power Factor Controller IC |
Maximum Source Current | 4mA |
Maximum Sink Current | 4.5mA |
Maximum Supply Current | 6 mA |

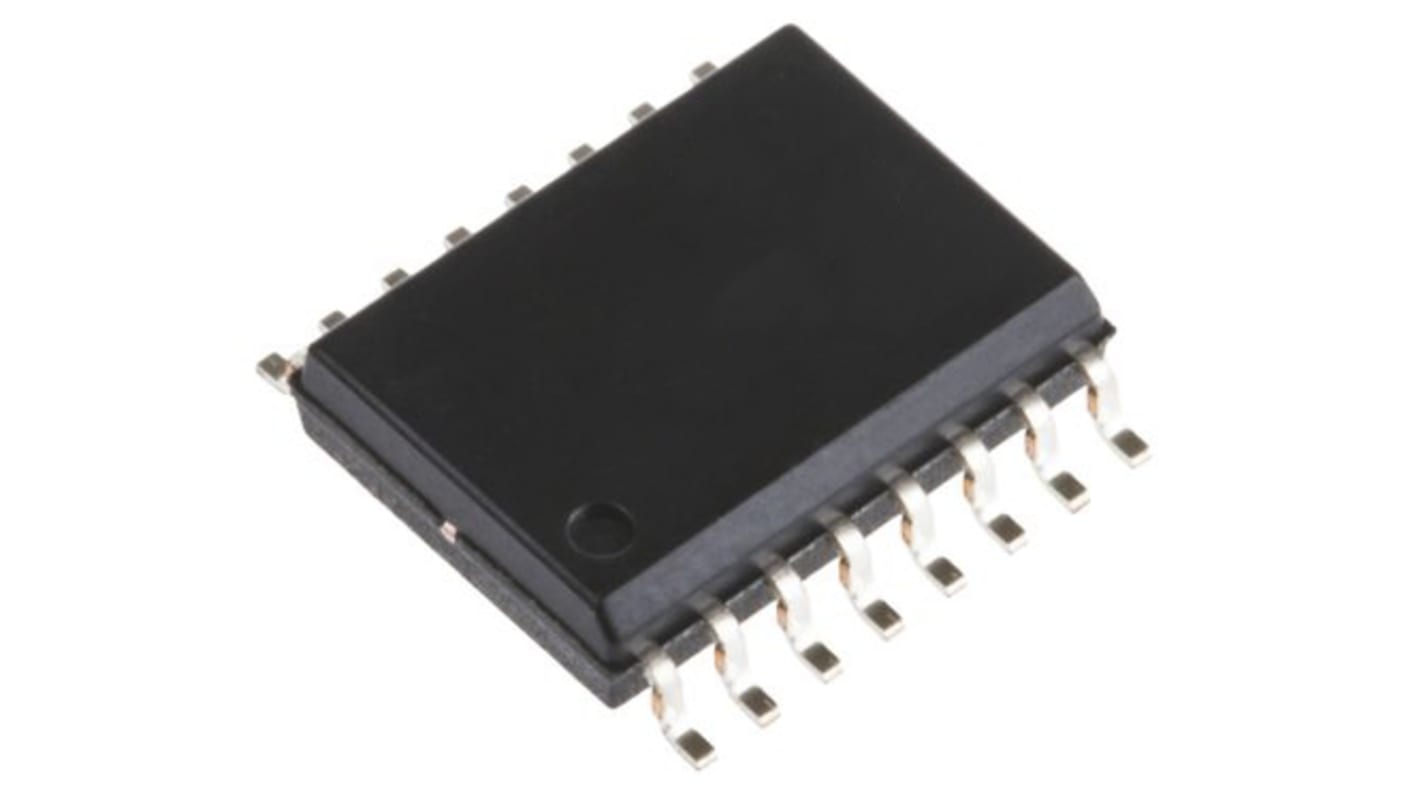

Mounting Type | Surface Mount |
Package Type | SO |
Pin Count | 16 |
Dimensions | 10 x 4 x 1.5mm |
Height | 1.5mm |
Length | 10mm |
Maximum Operating Supply Voltage | 22.5 V |
Maximum Operating Temperature | +150 °C |
Minimum Operating Supply Voltage | 10.3 V |
Minimum Operating Temperature | -40 °C |
Width | 4mm |
