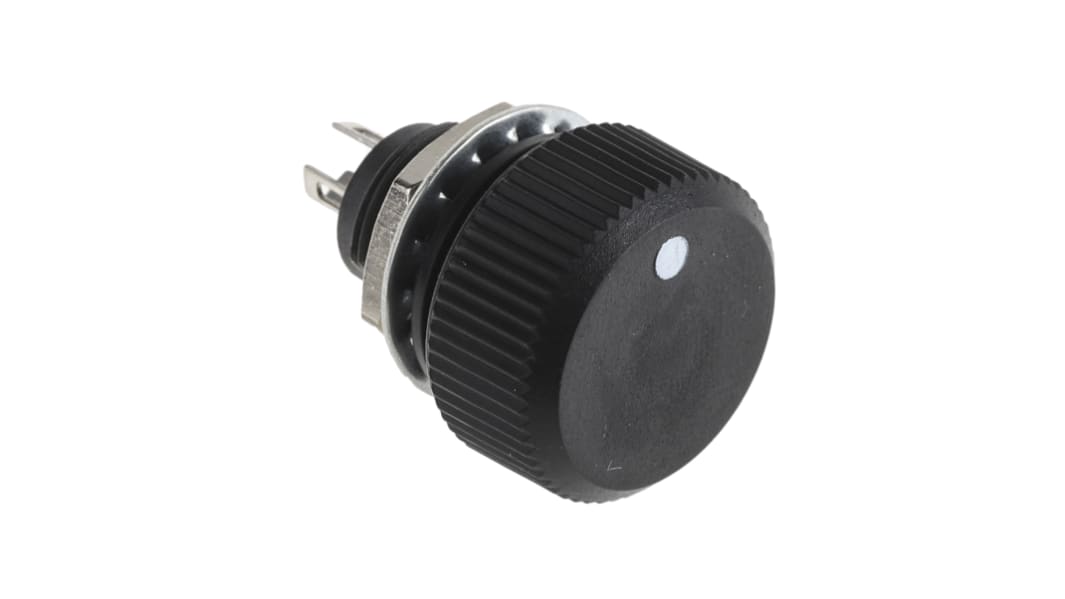

Vishay 1 Gang Rotary Cermet Potentiometer with a 16 mm Dia. Shaft, 10kΩ, ±20%, 1W, Linear P16NP103MAB15

  • RS-artikelnummer 790-4401
  • Tillv. art.nr P16NP103MAB15
  • Tillverkare / varumärke Vishay
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CZ
Produktdetaljer

Vishay P16 Series Knob Potentiometers

The P16 is a revolutionary concept in panel mounted potentiometers. This unique design consists of a knob driving and incorporating a cermet potentiometer. Only the mounting hardware and terminals are situated on the back side of the panel reducing to a minimum the required clearance.

• Test according to CECC 41000 or IEC 60393-1
• P16 - version for professional and industrial
applications (cermet) 1 W at 40 °C
• Compact (integrated)
• High dielectric strength: 2500 VRMS
• Fully sealed and panel sealed
• Metallic or plastic knob options
• Custom knob on request

Supplied with

Nut, lock washer and sealing ring.

Specifikationer
Attribute Value
Potentiometer Type Rotary
Maximum Resistance 10 kΩ
Number of Gangs 1
Number of Turns 1
Power Rating 1W
Electrical Taper Linear
Element Material Cermet
Mounting Type Panel Mount
Termination Style Solder Lug
Shaft Length 8.8mm
Shaft Diameter 16 mm
Tolerance ±20%
Actuator Type Knurled Shaft
Series P16
1036 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
132,35 kr
(exkl. moms)
165,44 kr
(inkl. moms)
Enheter
Per unit
1 - 49
132,35 kr
50 - 99
121,81 kr
100 - 249
115,70 kr
250 - 499
110,02 kr
500 +
104,43 kr
Förpackningsalternativ:
