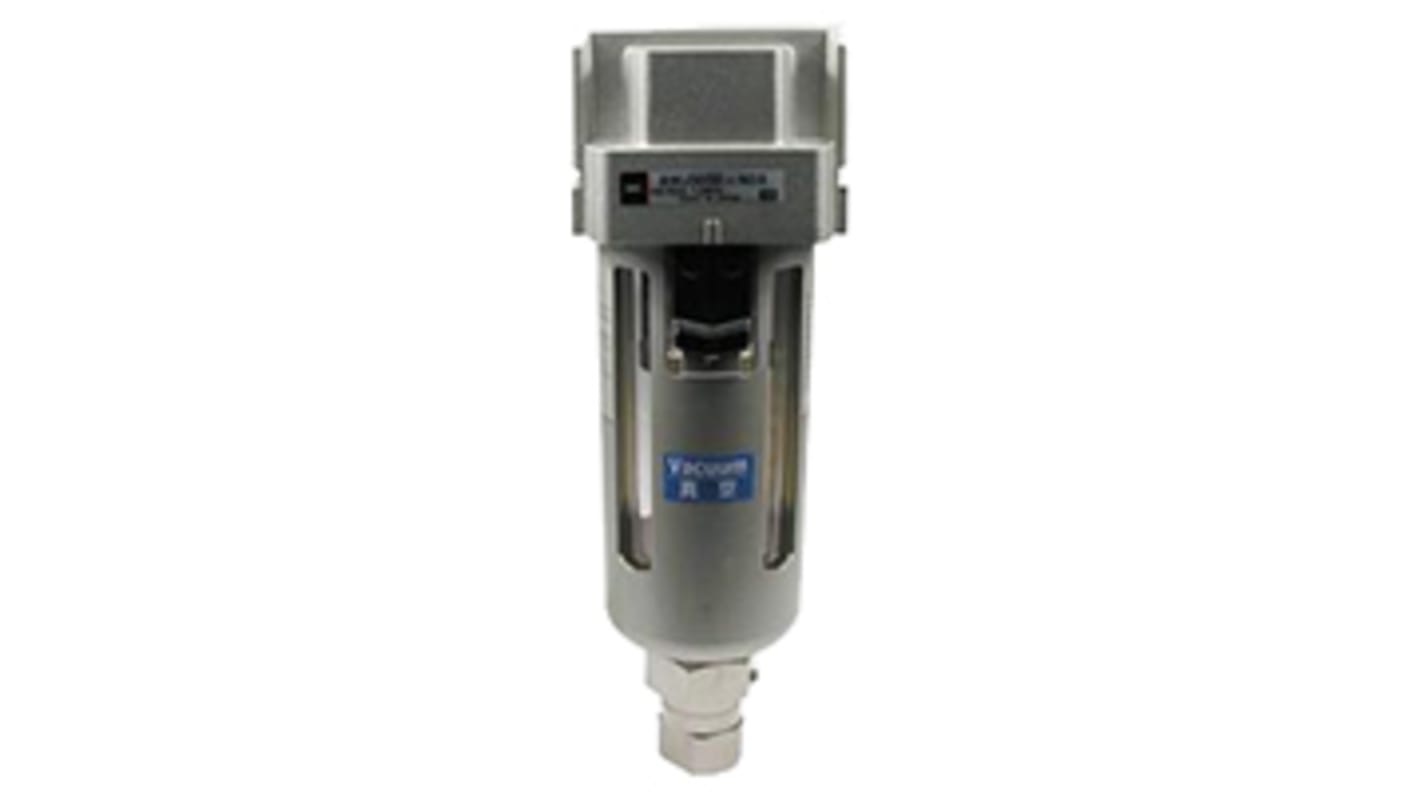

SMC AMJ Vacuum Filter

  • RS-artikelnummer 827-2076
  • Tillv. art.nr AMJ4000-N04B
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Und.t.
COO (Country of Origin): JP
Produktdetaljer

SMC - AMJ Series Drain Separators for Vacuum

Removes water droplets from air by simply installing in vacuum equipment connection lines. Effective for removing water droplets from the air sucked into vacuum pumps and ejectors, etc.
Over 90% of droplets can be removed through the use of a special water droplet removing element. The provision of a drain cock makes it possible to discharge the drain manually after breaking the vacuum. Even when the element is saturated with water, there is almost no drop in pressure (increase in resistance). The element can be replaced with a single touch.

Specifikationer
Attribute Value
Manufacturer Series AMJ
Port Connection NPT 1/4
Typical Flow Rate 300L/min
Maximum Operating Pressure 1 (Operating) MPa, 1.5 (Proof) MPa
Port Connection Thread Size 1/4 in
Port Connection Thread Standard NPT
Minimum Operating Temperature +5°C
Maximum Operating Temperature +60°C
Minimum Operating Pressure -0.1MPa
Tillfälligt slut i lager – restorder för leverans 2019-11-28
Pris (ex. moms) Each
1 368,93 kr
(exkl. moms)
1 711,16 kr
(inkl. moms)
Enheter
Per unit
1 - 4
1 368,93 kr
5 - 9
1 327,18 kr
10 +
1 284,35 kr
