SMC ZFC 5μm Vacuum Filter

  • RS-artikelnummer 175-9945
  • Tillv. art.nr ZFC54-B
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): JP
Produktdetaljer

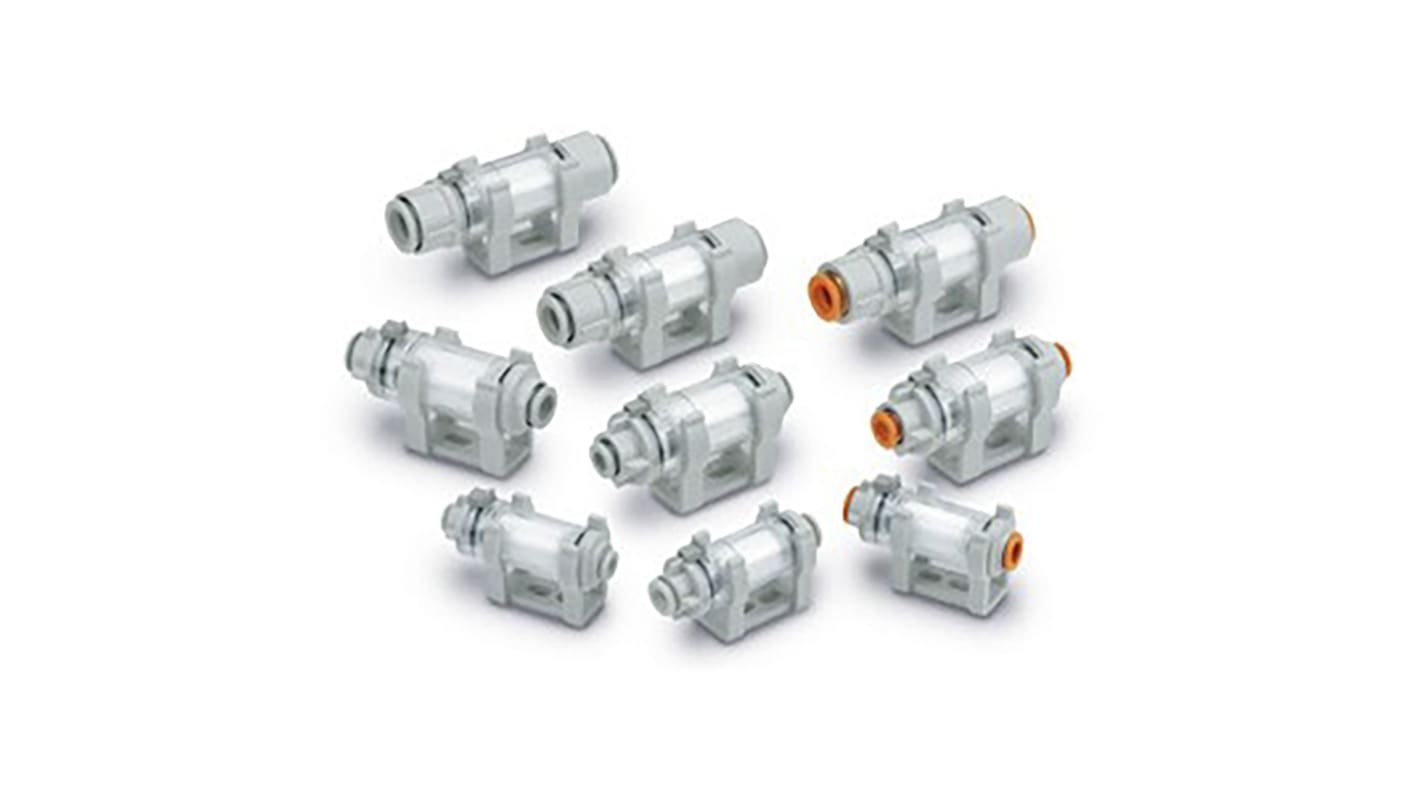

ZFC In-line Vacuum Air Filter

The ZFC series are inline air filters with a one-touch fitting, they filter the compressed air to prevent issues in equipment from contaminants. In line filters fit within a pipe or line.
Both positive pressure and vacuum pressure can be used with a single unit. During positive pressure, a lock mechanism prevents components from being scattered when they are loosened. This series is light weight and compact, and the flexible mounting orientation makes it easy to install to the line. ZFC filters have 2 levels of filtration rating 5μm and 10μm.

Benefits and features:

• One unit offers both positive and negative pressure
• Metric and inch sizes
• One-touch fittings for quick and efficient replacement
• Cylinder has lock mechanism
• Improvement in air quality
• Flexible mounting

Specifikationer
Attribute Value
Manufacturer Series ZFC
Filtration Size 5µm
Port Connection 6 Dia. mm
Maximum Flow Rate 20L/min
Maximum Operating Pressure 1 MPa
Minimum Operating Temperature 0°C
Maximum Operating Temperature +60°C
Minimum Operating Pressure -100
290 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
140,90 kr
(exkl. moms)
176,12 kr
(inkl. moms)
Enheter
Per unit
1 - 4
140,90 kr
5 - 9
136,60 kr
10 +
132,40 kr
