- RS-artikelnummer:
- 700-8751
- Tillv. art.nr:
- EVT317-5DO-02F-Q
- Tillverkare / varumärke:
- SMC
17 I lager för avsändande samma dag
53 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
581,86 kr
(exkl. moms)
727,32 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 581,86 kr |
5 + | 564,08 kr |
- RS-artikelnummer:
- 700-8751
- Tillv. art.nr:
- EVT317-5DO-02F-Q
- Tillverkare / varumärke:
- SMC
Lagstiftning och ursprungsland
Uppfyller ej RoHS
- COO (Country of Origin):
- JP
Produktdetaljer

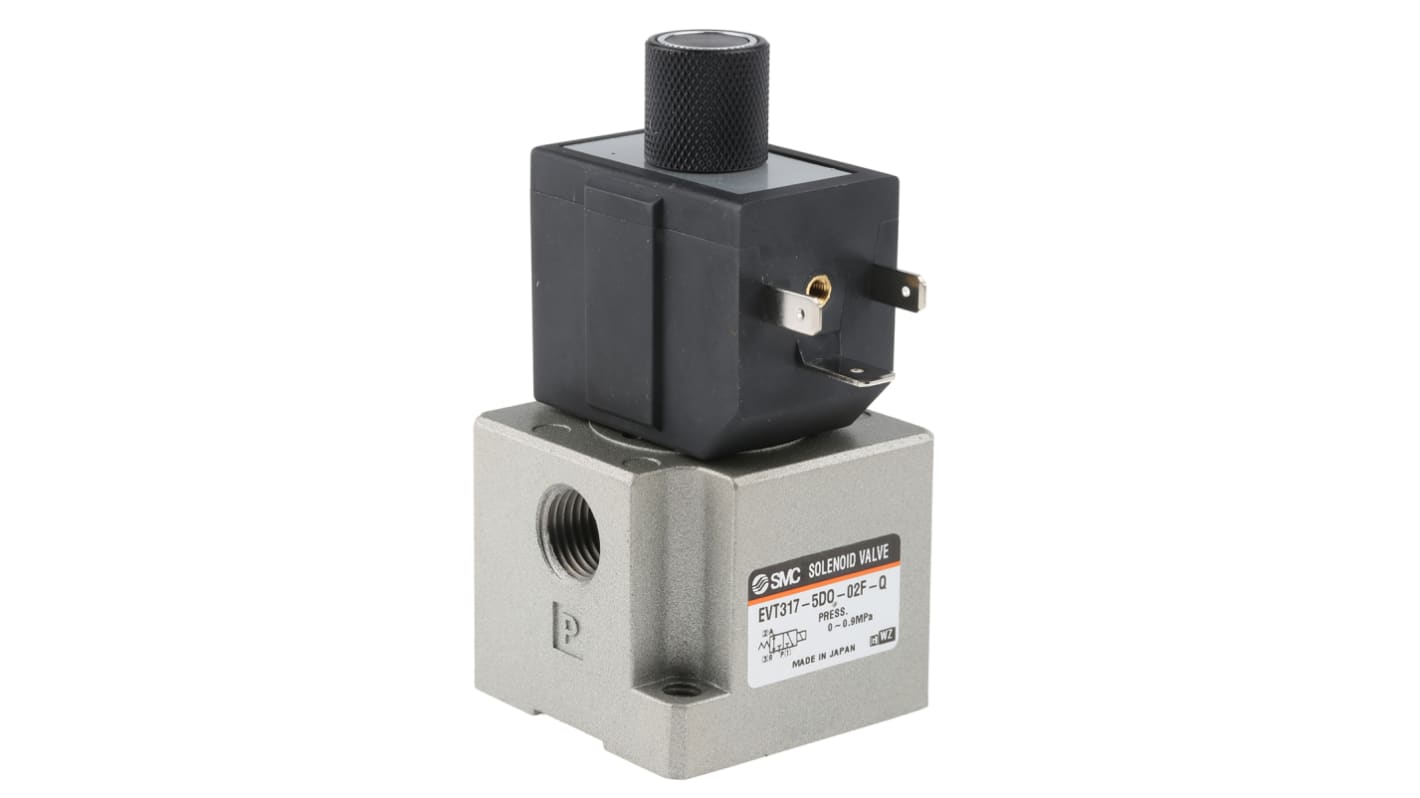

SMC Solenoid Valve
The SMC VT317 series 3/2 ports direct operated poppet solenoid valve has a supply voltage of 24VDC. This solenoid-operated spring return valve has a 1/4in G port connection. This valve is suitable for use in vacuum applications. This valve has a standard DIN 43650 electrical connection without a connector.
Features and Benefits
Coils may be orientated at 90° increments
Maximum flow rate is 687.05NL/min
Operating pressure ranges between 0MPa and 0.9MPa
Operating temperature range between 0°C and 50°C
Push button manual override
Maximum flow rate is 687.05NL/min
Operating pressure ranges between 0MPa and 0.9MPa
Operating temperature range between 0°C and 50°C
Push button manual override
Certifications
IP65 rated
Specifikationer
Attribute | Value |
---|---|
Function | 3/2 |
Connection Port Thread | G 1/4 |
Actuation Type | Spring/Solenoid |
Manufacturer Series | VT317 |
Mounting Style | Stand-Alone |
Solenoid Voltage | 24V dc |
Solenoid Fitted | Yes |
Number of Ports | 3/2 |
Body Material | Die Cast Aluminium |
Maximum Flow Rate | 687.05NL/min |
Solenoid Power Consumption | 6W |
Minimum Operating Pressure | 0MPa |
Maximum Operating Pressure | 0.9 MPa |
Thread Size | 1/4in |
Minimum Operating Temperature | 0°C |
Maximum Operating Temperature | +50°C |
Thread Standard | G |
