- RS-artikelnummer:
- 533-7082
- Tillv. art.nr:
- V63D4D7A-XA090
- Tillverkare / varumärke:
- Norgren
- RS-artikelnummer:
- 533-7082
- Tillv. art.nr:
- V63D4D7A-XA090
- Tillverkare / varumärke:
- Norgren
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- CZ
Produktdetaljer

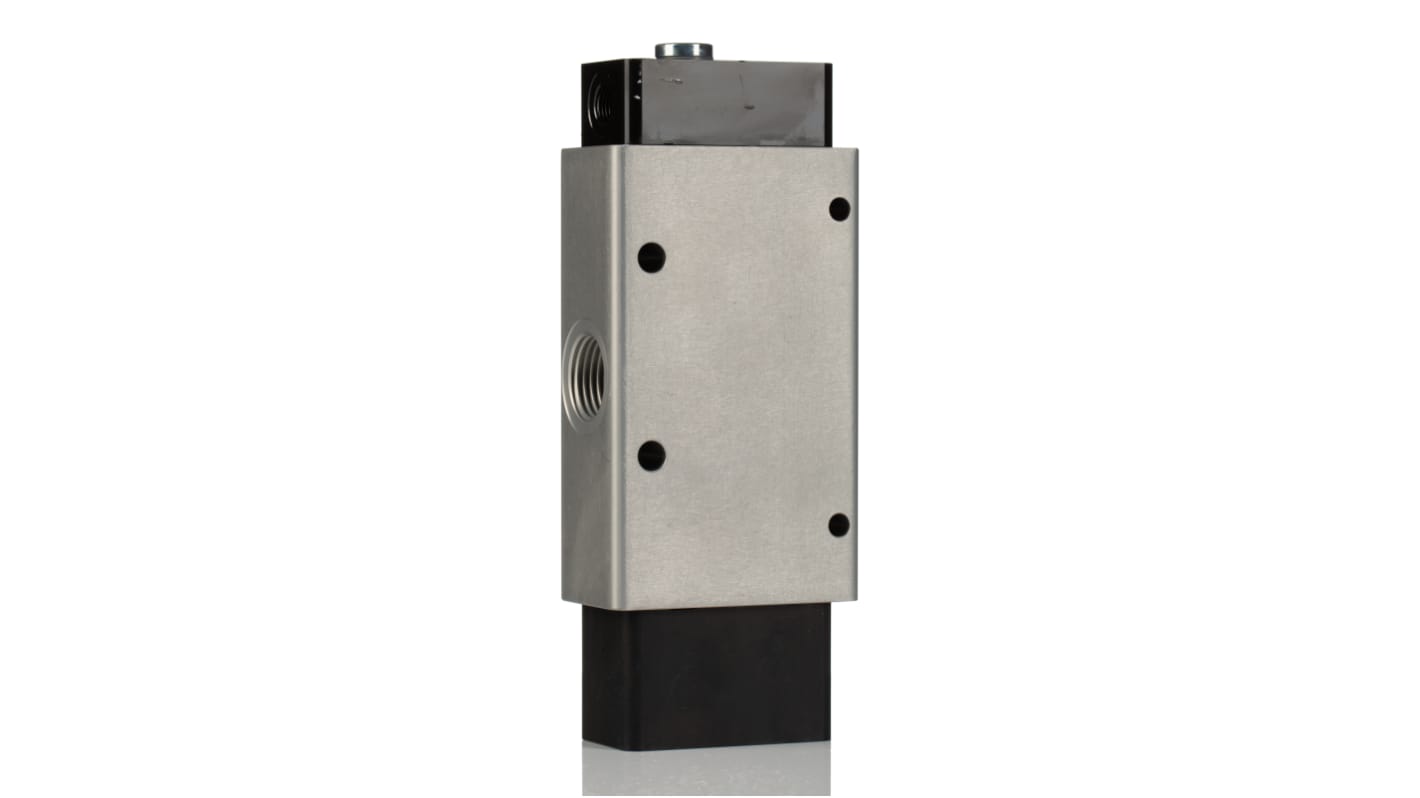

IMI Norgren Pneumatic Solenoid Valve, 3/2 Function, Pilot/Spring Actuation - V63 Series - V63D4D7A-XA090
Efficiently manage fluid or gas flow in your pneumatic system with this 3/2 directional control solenoid valve from IMI Norgren. It's a monostable device with a spring-driven spool that's actuated by air for a quick and secure switch-over process. NBR sealing ensures the spool fits precisely inside the inner walls to prevent pressure from being lost. The G1/2 connection port threading fits securely to your equipment, so you can depend on it in tough environments.
Features & Benefits
NC contact keeps the current flowing without the need for actuation
Aluminium housing makes it durable and corrosion-resistant, for use in harsh environments
Operating pressure range between -0.9 and 16 bar, making it ideal for use with medium-duty to heavy-duty equipment
IP65 rating means it's resistant to dust and low-pressure water jets
Aluminium housing makes it durable and corrosion-resistant, for use in harsh environments
Operating pressure range between -0.9 and 16 bar, making it ideal for use with medium-duty to heavy-duty equipment
IP65 rating means it's resistant to dust and low-pressure water jets
Applications
Air conditioning unit
Medical laboratories
Water supply systems
Medical laboratories
Water supply systems
What's the flow rate in this pneumatic solenoid valve?
This IMI Norgren pneumatic solenoid valve has a flow rate of 4200 litres per minute for efficient output and flexible use.
Specifikationer
Attribute | Value |
---|---|
Function | 3/2 |
Connection Port Thread | G 1/2 |
Actuation Type | Pilot/Spring |
Manufacturer Series | V63 |
Number of Ports | 3 |
Body Material | Aluminium |
Maximum Flow Rate | 4500L/min |
Minimum Operating Pressure | -0.9bar |
Thread Size | 1/2in |
Minimum Operating Temperature | -10°C |
Configuration | 2-Position, 3 Port |
Number of Positions | 2 |
Maximum Operating Pressure | 16bar |
Maximum Operating Temperature | +50°C |
Thread Standard | G |
