Produktdetaljer

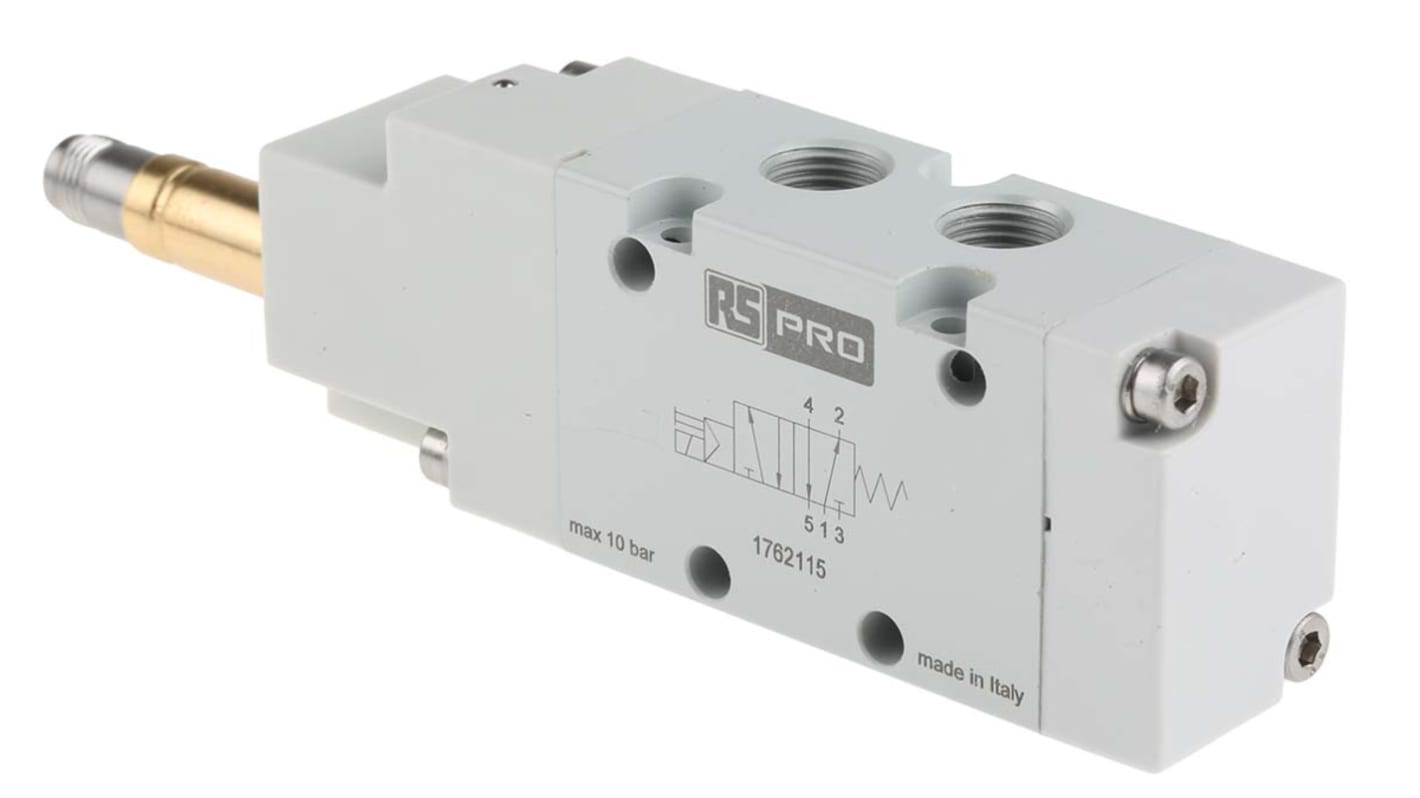

RS PRO 5/2 Monostable Pneumatic Control Valve Solenoid G 1/8 in
If you need to control airflow in a pneumatic system, this monostable pneumatic control valve from RS PRO is a versatile and sturdy combination of high performance and compact size. Its 5/2 configuration means it has five ports and two switching positions – a valve type commonly used to control double-acting cylinders. Typical applications include robotics, packaging and textile manufacture.
Its aluminium body means this valve is suitable for base mounting. A spring holds the valve in its home position until activation by the solenoid, which has an energy-efficient coil. It fits onto a standard G 1/8 in thread and offers a flow capacity of 740 litres a minute, as well as a short changeover time and low changeover pressure.
Its aluminium body means this valve is suitable for base mounting. A spring holds the valve in its home position until activation by the solenoid, which has an energy-efficient coil. It fits onto a standard G 1/8 in thread and offers a flow capacity of 740 litres a minute, as well as a short changeover time and low changeover pressure.
Features and Benefits
Pneumatic control valve
G 1/8 in connection port thread
Thread size of 3.175 mm
5/2 configuration – five ports and two positions
Monostable function
Base mount
Solenoid/spring actuation
Solenoid power consumption of 2 W, 3 VA
Maximum flow rate of 750 L/min
Maximum operating temperature of +60˚C
Minimum operating temperature of -10˚C
Maximum operating pressure of 10 bar
Minimum operating pressure of 2 bar
Aluminium body
Solenoid is not provided
Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
RoHS (Restriction of Hazardous Substances) compliant
G 1/8 in connection port thread
Thread size of 3.175 mm
5/2 configuration – five ports and two positions
Monostable function
Base mount
Solenoid/spring actuation
Solenoid power consumption of 2 W, 3 VA
Maximum flow rate of 750 L/min
Maximum operating temperature of +60˚C
Minimum operating temperature of -10˚C
Maximum operating pressure of 10 bar
Minimum operating pressure of 2 bar
Aluminium body
Solenoid is not provided
Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
RoHS (Restriction of Hazardous Substances) compliant
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
Specifikationer
Attribute | Value |
---|---|
Function | 5/2 Monostable |
Connection Port Thread | G 1/8 |
Actuation Type | Solenoid |
Mounting Style | Base Mount |
Solenoid Fitted | No |
Number of Ports | 5/2 |
Body Material | Aluminium |
Maximum Flow Rate | 740NL/min |
Solenoid Power Consumption | 2 W, 3VA |
Minimum Operating Pressure | 2bar |
Number of Positions | 1 |
Minimum Operating Temperature | -10°C |
Configuration | 5/2 |
Maximum Operating Temperature | +60°C |
Maximum Operating Pressure | 10bar |
Thread Size | 1/8in |
Thread Standard | G |
