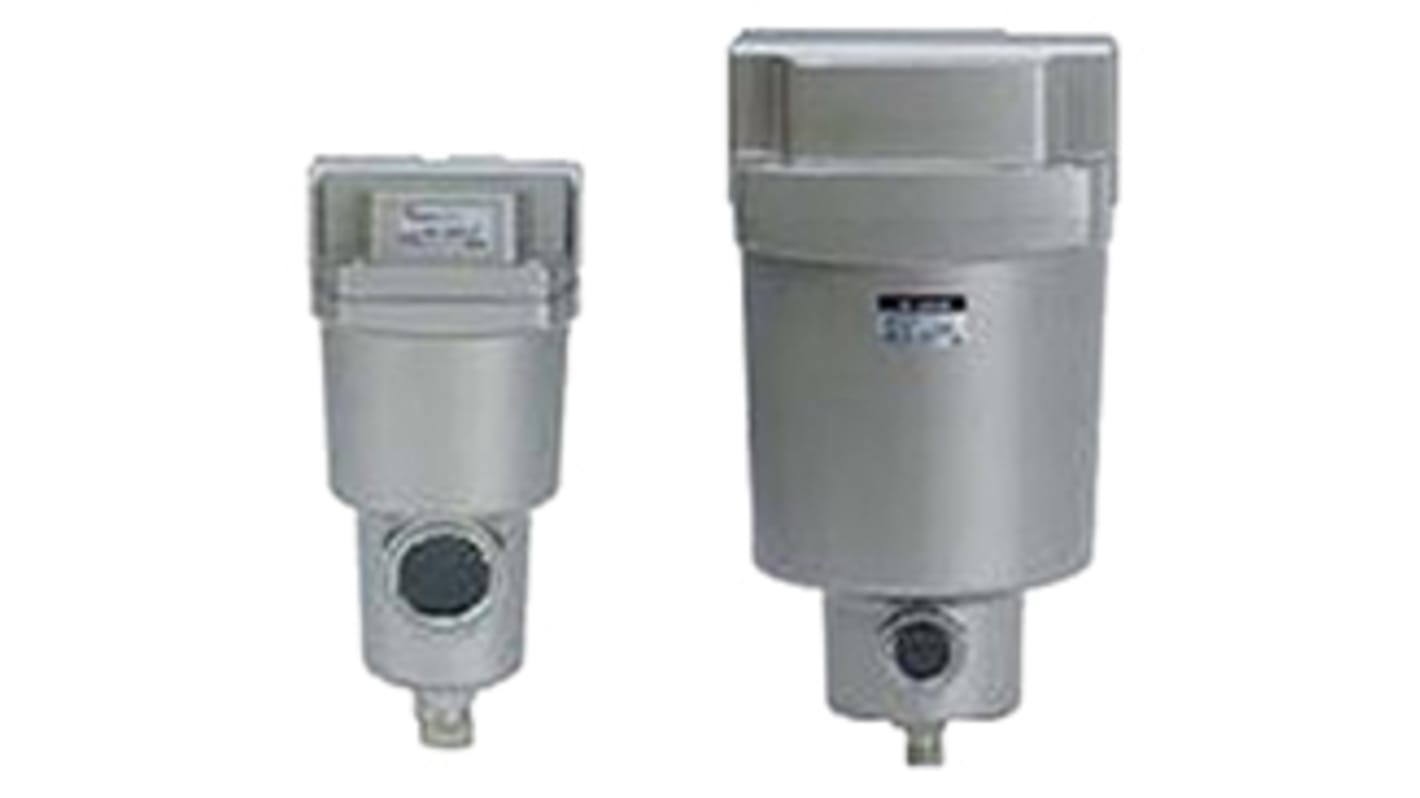

SMC 300 L/min Water Separator, NPT 1/4 Resin 1/4 in NPT, +5 → +60 (Ambient and Fluid)°C

  • RS-artikelnummer 826-8169
  • Tillv. art.nr AMG150C-N02BC
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

SMC in. –1 in. AMG Series

Minimum operating pressure 1.5 bar
Will remove 99.9% of water droplets from an airline system
Automatic drain
Element is resistant to clogging
Modular unit

Specifikationer
Attribute Value
Manufacturer Series AMG
Typical Flow 300 L/min
Port Connection NPT 1/4
Element Material Resin
Port Connection Thread Size 1/4 in
Minimum Operating Temperature +5°C
Maximum Operating Temperature +60°C
Maximum Operating Pressure 1 (Operating) MPa, 1.5 (Proof) MPa
Port Connection Thread Standard NPT
Minimum Operating Pressure 0.05MPa
6 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 073,15 kr
(exkl. moms)
1 341,44 kr
(inkl. moms)
Enheter
Per unit
1 +
1 073,15 kr
