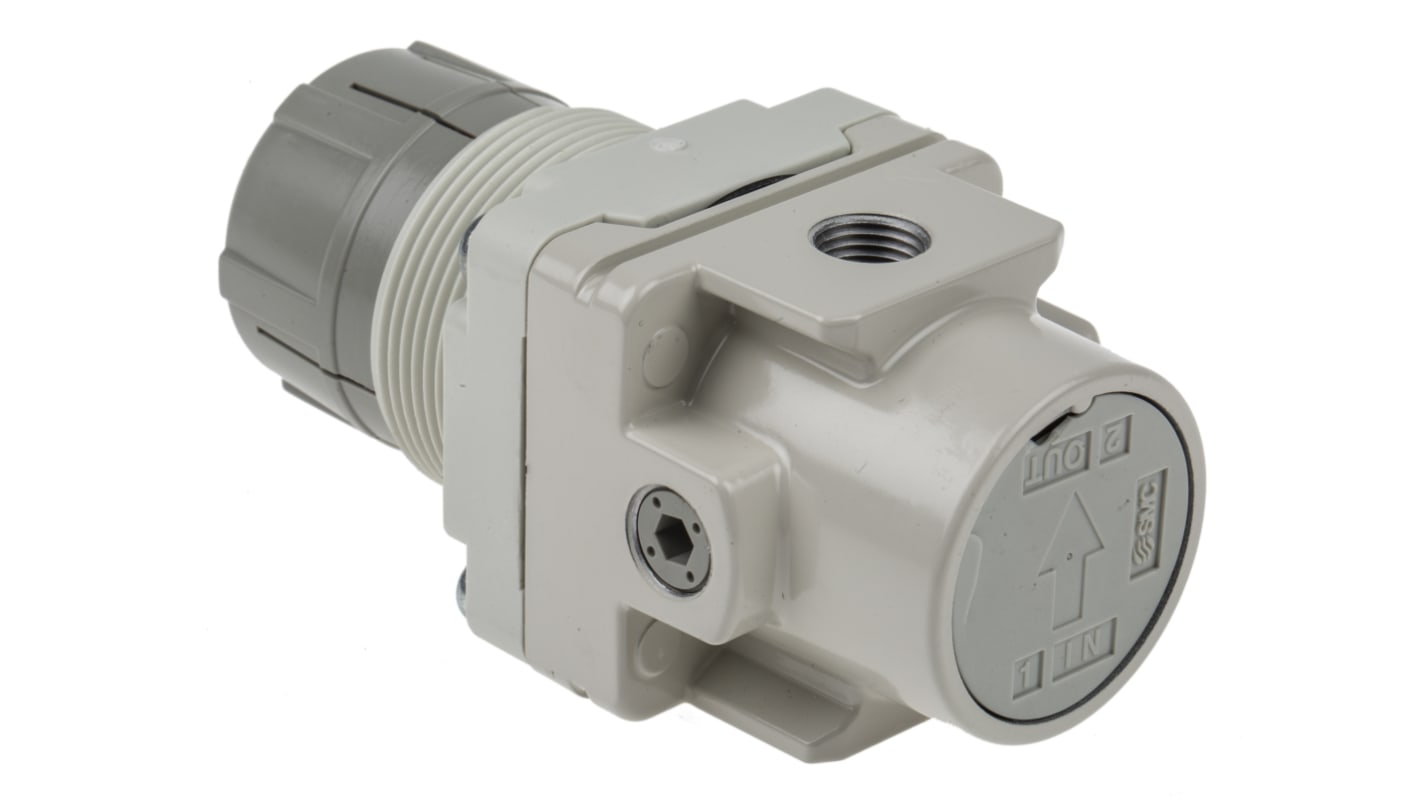

SMC Pneumatic Regulator NPT 1/8

  • RS-artikelnummer 849-9710
  • Tillv. art.nr AR20-N01-NZ-A
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
Produktdetaljer

Modular Air Regulator AR20 - AR40

Modular air regulators from SMC. The modular air regulators in the AR series are now more efficient saving you energy. The AR series has a modular design with improved installation using a new bracket and spacer combination.The modular design allows connection with other parts in the AC FRL range allowing you to select which components are most suitable for your needs.

Resin body will not rust
Different pressure settings available to meet different application needs
Modular design

Specifikationer
Attribute Value
Port Connection NPT 1/8
Minimum Outlet Pressure 0.05MPa
Maximum Outlet Pressure 0.85MPa
Maximum Input Pressure 1MPa
Manufacturer Series AR
Pressure Gauge Port Size NPT 1/8
Port Connection Thread Size 1/8 in
Pressure Gauge Port Thread Size 1/8 in
Maximum Flow Rate 0.1L/min
Integral Check Valve Without Check Valve
Port Connection Thread Standard NPT
Minimum Operating Temperature -5°C
Maximum Operating Temperature +60°C
Pressure Gauge Port Thread Standard NPT
3 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
217,05 kr
(exkl. moms)
271,31 kr
(inkl. moms)
Enheter
Per unit
1 - 4
217,05 kr
5 - 9
210,42 kr
10 +
203,64 kr
