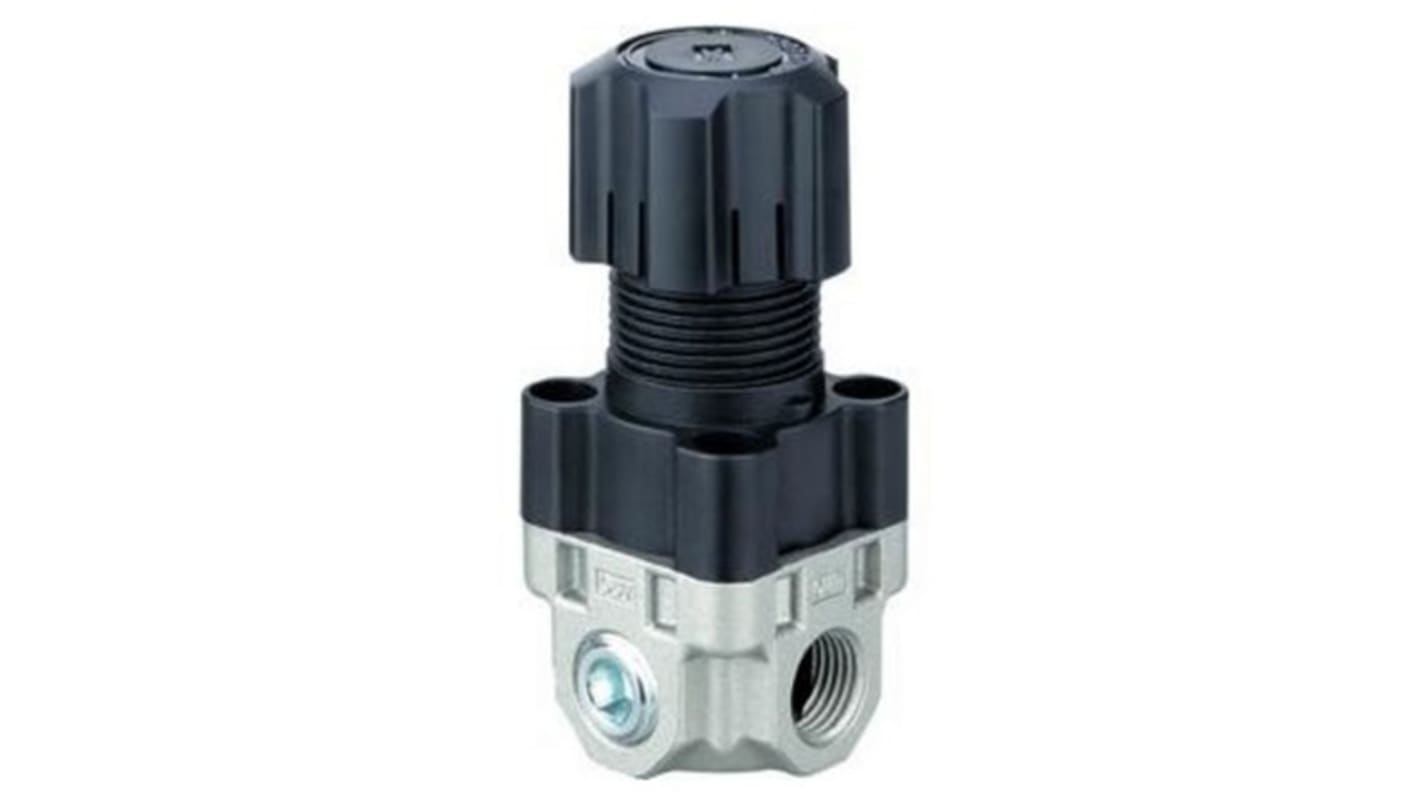

SMC Pneumatic Regulator NPT 1/8 60L/min, 0.05 → 0.85Mpa

  • RS-artikelnummer 825-3864
  • Tillv. art.nr ARX20-N01
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Uppfyller ej
Produktdetaljer

ARX 20 pressure regulators

ARX series piston type regulators are compatible with a primary supply pressure of 2.0MPa and ideal for pressure adjustment of air blowing applications. Compact in design with easy-to-operate adjustment handle.

Piston regulators featuring a wide range of output pressures.
Black stamped steel housing.
Brass cover and polycarbonate connector.
Pressure gauge and mounting bracket can be ordered separately.

Specifikationer
Attribute Value
Port Connection NPT 1/8
Minimum Outlet Pressure 0.05MPa
Maximum Outlet Pressure 0.85MPa
Maximum Input Pressure 2MPa
Manufacturer Series ARX
Port Connection Thread Size 1/8 in
Maximum Flow Rate 60L/min
Integral Check Valve Without Check Valve
Port Connection Thread Standard NPT
Minimum Operating Temperature -5°C
Maximum Operating Temperature +60°C
2 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
157,42 kr
(exkl. moms)
196,78 kr
(inkl. moms)
Enheter
Per unit
1 - 4
157,42 kr
5 - 9
151,12 kr
10 +
144,83 kr
