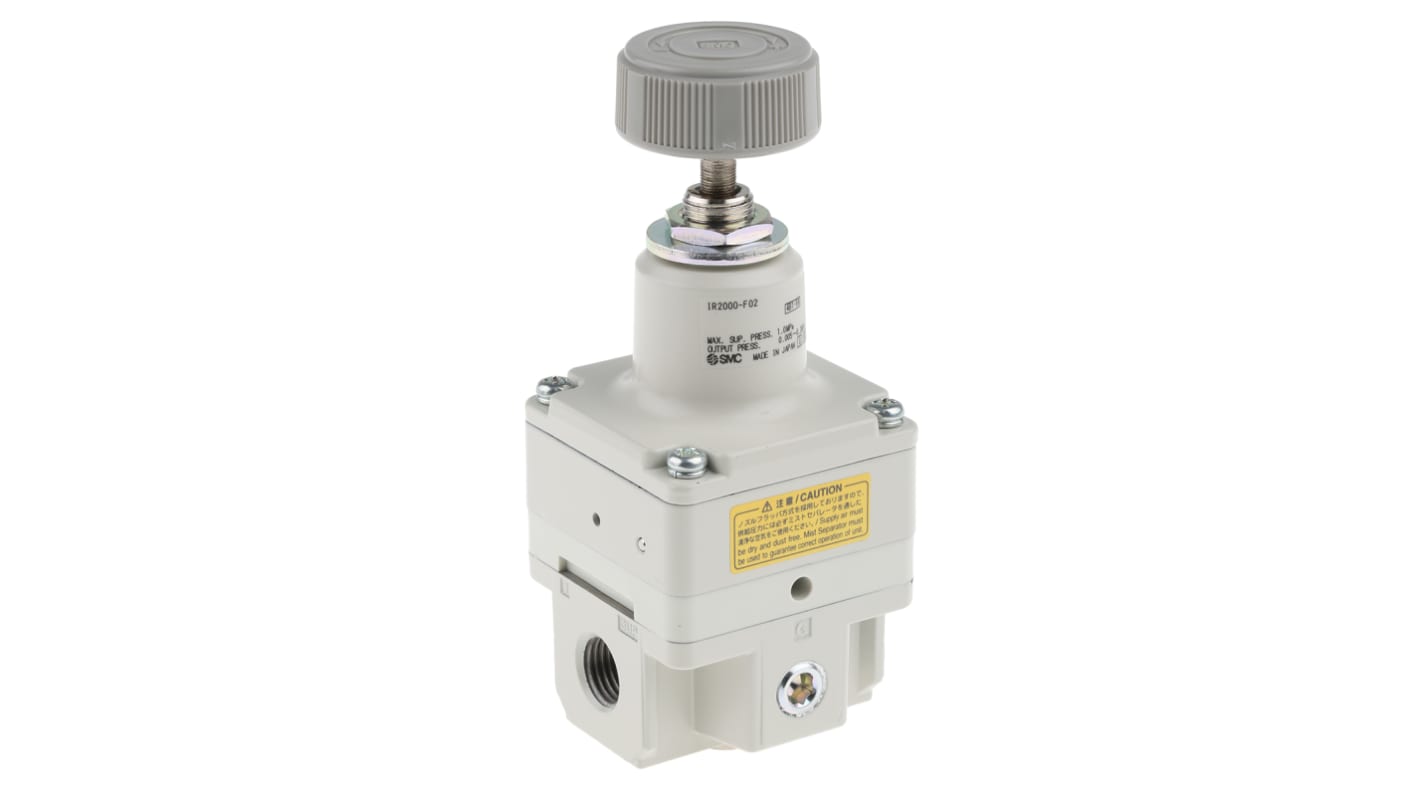

SMC Regulator G 1/4 4.4L/min, 0.005 → 0.2Mpa

  • RS-artikelnummer 796-7323
  • Tillv. art.nr IR2000-F02
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): CN
Produktdetaljer

Precision IR Series

Air requirements; Dry, filtered to 0.3μm
Precise setting accuracy ±0.2% of full span
Repeatability ±0.5% of full span
Temperature range -5°C to +60°C
High relief flow capacity for high balance performance
Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series)
Weight 300g
Available with / without mounting brackets
For brackets see RS stock no 750-8113, 750-8104

Note

See separate product range for mounting brackets and accessories

Caution

(Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline

//media.rs-online.com/t_line/L314092-01.gif
//media.rs-online.com/t_line/L314093-01.gif
Specifikationer
Attribute Value
Port Connection G 1/4
Minimum Outlet Pressure 0.005MPa
Maximum Outlet Pressure 0.2MPa
Maximum Input Pressure 1MPa
Manufacturer Series IR2000
Pressure Gauge Port Size Rc 1/8
Port Connection Thread Size 1/4 in
Pressure Gauge Port Thread Size 1/8 in
Maximum Flow Rate 4.4L/min
Integral Check Valve Without Check Valve
Port Connection Thread Standard G
Minimum Operating Temperature -5°C
Maximum Operating Temperature +60°C
Pressure Gauge Port Thread Standard Rc
6 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
955,64 kr
(exkl. moms)
1 194,55 kr
(inkl. moms)
Enheter
Per unit
1 - 4
955,64 kr
5 - 9
917,41 kr
10 +
879,19 kr
