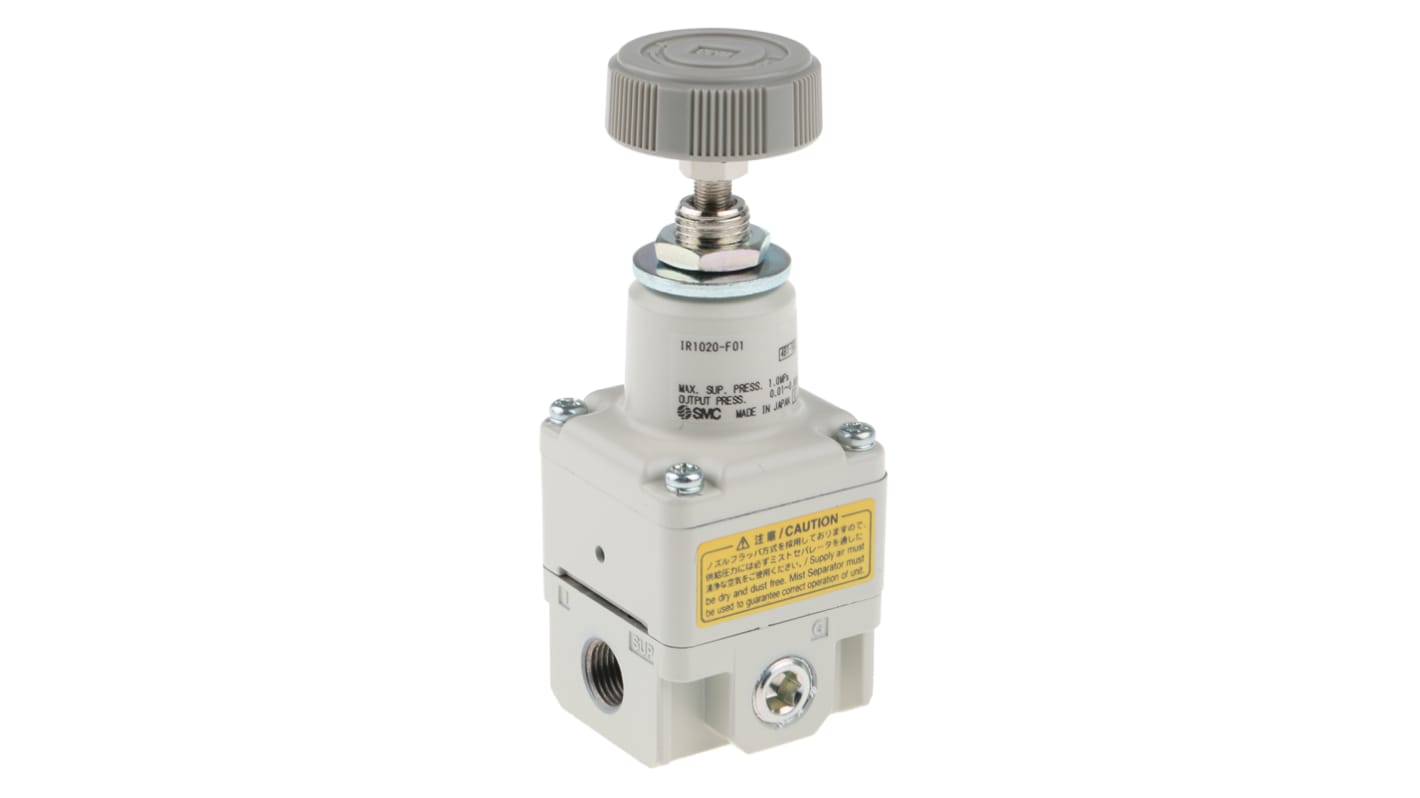

SMC G 1/8 Pneumatic Regulator - 0.01MPa to 0.8MPa, 1/8in, 1MPa max. input

RS-artikelnummer:: 700-8799
Tillv. art.nr:: IR1020-F01
Tillverkare / varumärke:: SMC

SMC G 1/8 Pneumatic Regulator - 0.01MPa to 0.8MPa, 1/8in, 1MPa max. input

Se kategorien

8 I lager för avsändande samma dag

36 Inom 1 arbetsdag(ar) (UK lager)

Lagt till varukorgen

Se varukorgen

Pris (ex. moms) Varje

845,28 kr

(exkl. moms)

1 056,60 kr

(inkl. moms)

Enheter	Per unit
1 - 4	845,28 kr
5 - 9	819,40 kr
10 +	793,10 kr

RS-artikelnummer:: 700-8799
Tillv. art.nr:: IR1020-F01
Tillverkare / varumärke:: SMC

Datablad

Lagstiftning och ursprungsland

RoHS-status: Inte relevant

COO (Country of Origin):: JP

Produktdetaljer

Precision IR Series

Air requirements; Dry, filtered to 0.3μm
Precise setting accuracy ±0.2% of full span
Repeatability ±0.5% of full span
Temperature range -5°C to +60°C
High relief flow capacity for high balance performance
Suitable for standalone use or integration into an SMC modular FRL assembly (AC3000 series)
Weight 300g
Available with / without mounting brackets

Note

See separate product range for mounting brackets and accessories

Caution

(Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C; consult Helpline

Specifikationer

Attribute	Value
Port Connection	G 1/8
Maximum Outlet Pressure	0.8MPa
Minimum Outlet Pressure	0.01MPa
Maximum Input Pressure	1MPa
Manufacturer Series	IR1000
Pressure Gauge Port Size	G 1/8
Port Connection Thread Size	1/8in
Pressure Gauge Port Thread Size	1/8in
Maximum Flow Rate	3.5L/min
Integral Check Valve	Without Check Valve
Port Connection Thread Standard	G
Minimum Operating Temperature	-5°C
Maximum Operating Temperature	+60°C
Pressure Gauge Port Thread Standard	G
