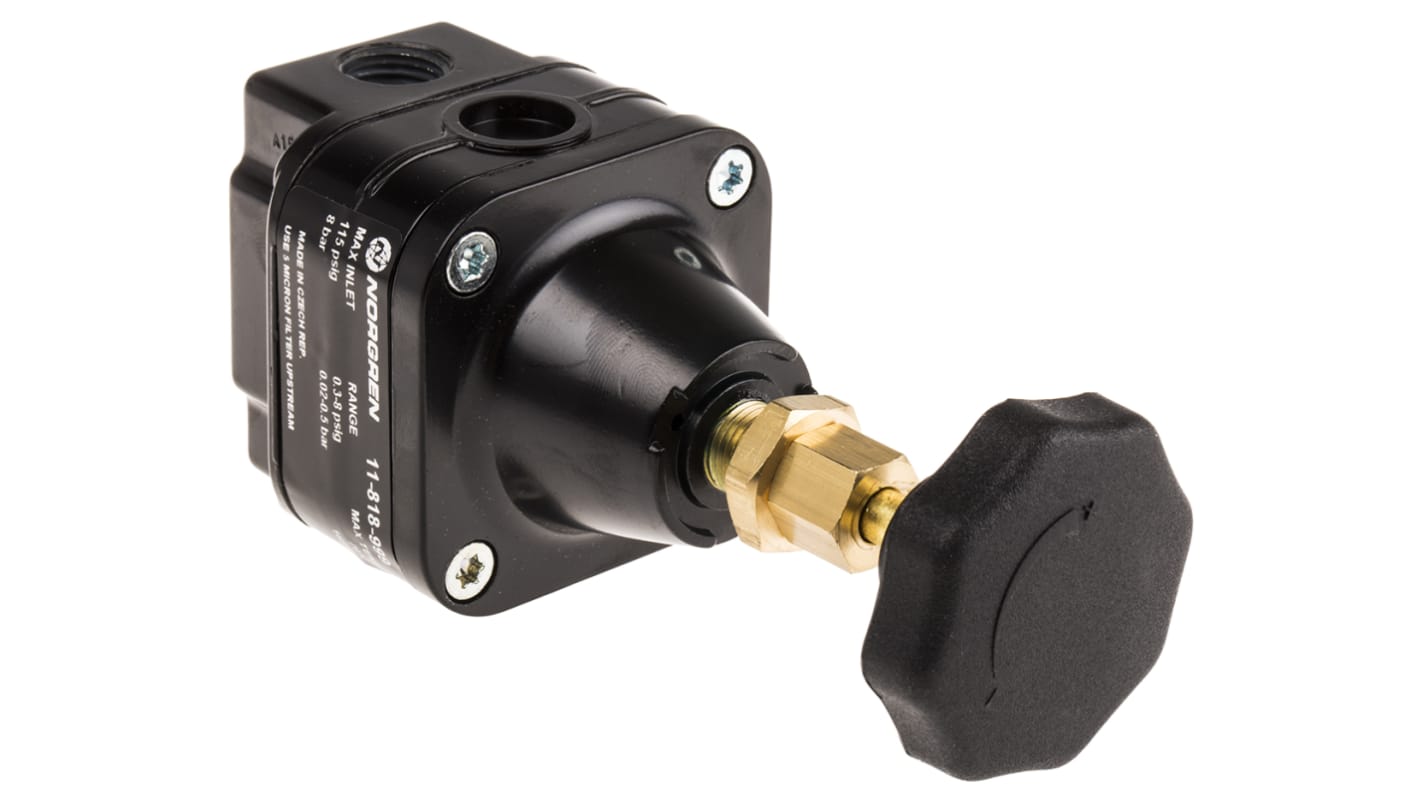

Norgren Pneumatic Regulator 240L/min G 1/4, 0.02 → 0.5bar

  • RS-artikelnummer 535-2378
  • Tillv. art.nr 11-818-999
  • Tillverkare / varumärke Norgren
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): GB
Produktdetaljer

Compact Precision G

Compact high precision air regulators with G1/4 ports suitable for air gauging, laboratory use and precise pilot control.

Integral pilot and pressure relief valves
Air requirements; compressed air
Air is double filtered before reaching pilot valve
Regulation accuracy ref 1 bar input change; 0.01%
Energy efficient zero bleed on flow

Note

See separate product range for mounting brackets and accessories

Caution

(Applicable to most pneumatic devices) Ice formation may cause malfunction or damage below +2°C, consult Helpline

Specifikationer
Attribute Value
Port Connection G 1/4
Maximum Input Pressure 8bar
Manufacturer Series 11-818
Port Connection Thread Size 1/4 in
Typical Flow Rate 240L/min
Integral Check Valve Yes
Port Connection Thread Standard G
Minimum Operating Temperature 0°C
Maximum Operating Temperature +70°C
22 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
1 416,22 kr
(exkl. moms)
1 770,28 kr
(inkl. moms)
Enheter
Per unit
1 - 4
1 416,22 kr
5 - 9
1 372,95 kr
10 +
1 328,54 kr
