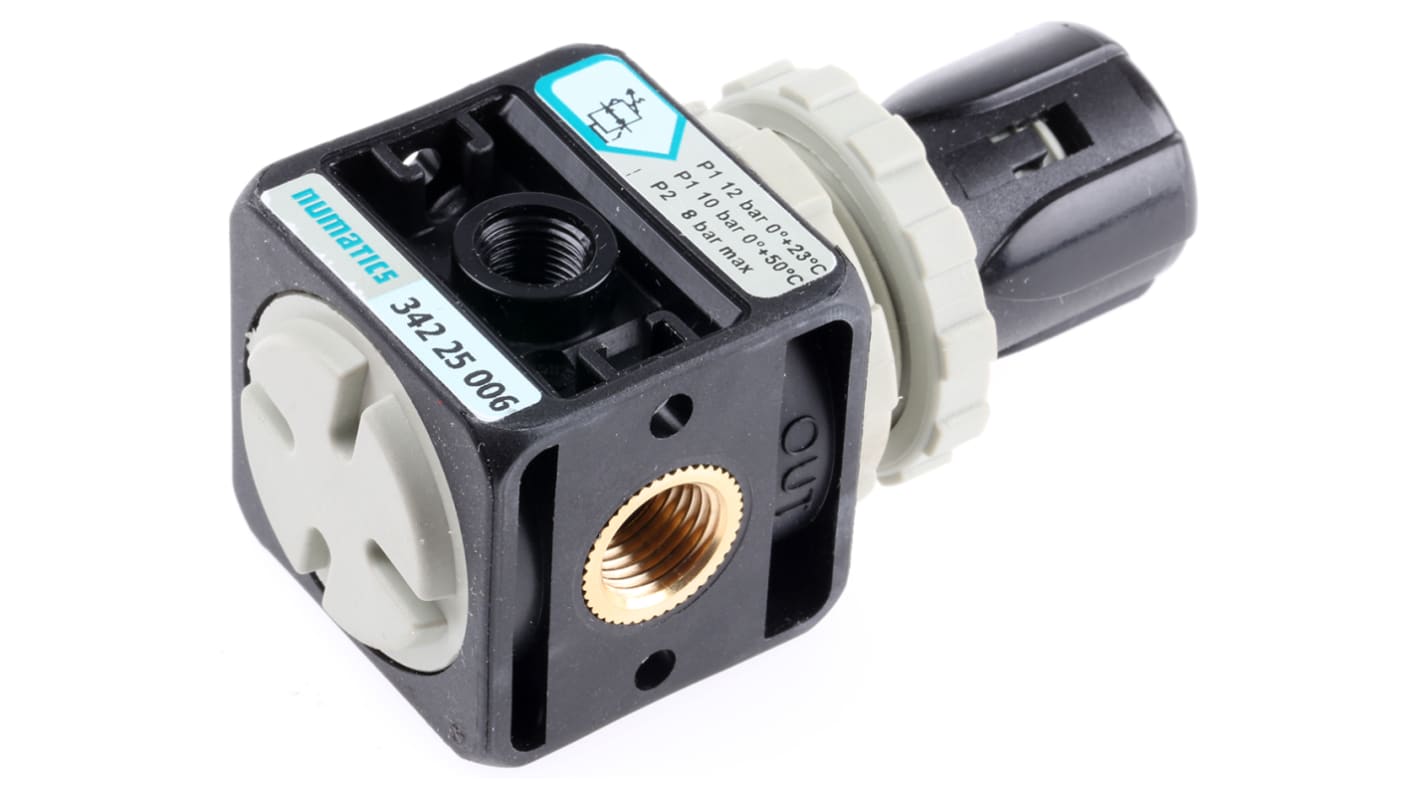

Asco Pneumatic Regulator 650L/min G 1/4, 0.5 → 8bar

  • RS-artikelnummer 478-4140
  • Tillv. art.nr 34225006
  • Tillverkare / varumärke Asco
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): FR
Produktdetaljer

Modulair FRL 105 series

Range of modular elements for air treatment from G1/8" → G 1/4"
Filters with polycarbonate tank, without protector and with a filtration threshold of 25 μm.
Regulators with 0.5 → 8 bar regulator button.
Filter regulator and filter regulator lubricator assemblies are also available.

Specifikationer
Attribute Value
Port Connection G 1/4
Minimum Outlet Pressure 0.5bar
Maximum Outlet Pressure 8bar
Maximum Input Pressure 12bar
Manufacturer Series 342
Port Connection Thread Size 1/4 in
Typical Flow Rate 650L/min
Integral Check Valve Without Check Valve
Port Connection Thread Standard G
Minimum Operating Temperature 0°C
Maximum Operating Temperature +50°C
5 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
285,90 kr
(exkl. moms)
357,38 kr
(inkl. moms)
Enheter
Per unit
1 - 4
285,90 kr
5 - 9
277,19 kr
10 +
268,16 kr
