Festo G 3/4 Pneumatic Regulator - 0.5bar to 12bar, 3/4 in, 16bar max. input, 162581
- RS-artikelnummer:
- 203-0371
- Tillv. art.nr:
- LR-3/4-D-MIDI
- Tillverkare / varumärke:
- Festo
6 I lager för avsändande samma dag
23 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
984,38 kr
(exkl. moms)
1 230,48 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 984,38 kr |
- RS-artikelnummer:
- 203-0371
- Tillv. art.nr:
- LR-3/4-D-MIDI
- Tillverkare / varumärke:
- Festo
Lagstiftning och ursprungsland
- COO (Country of Origin):
- HU
Produktdetaljer

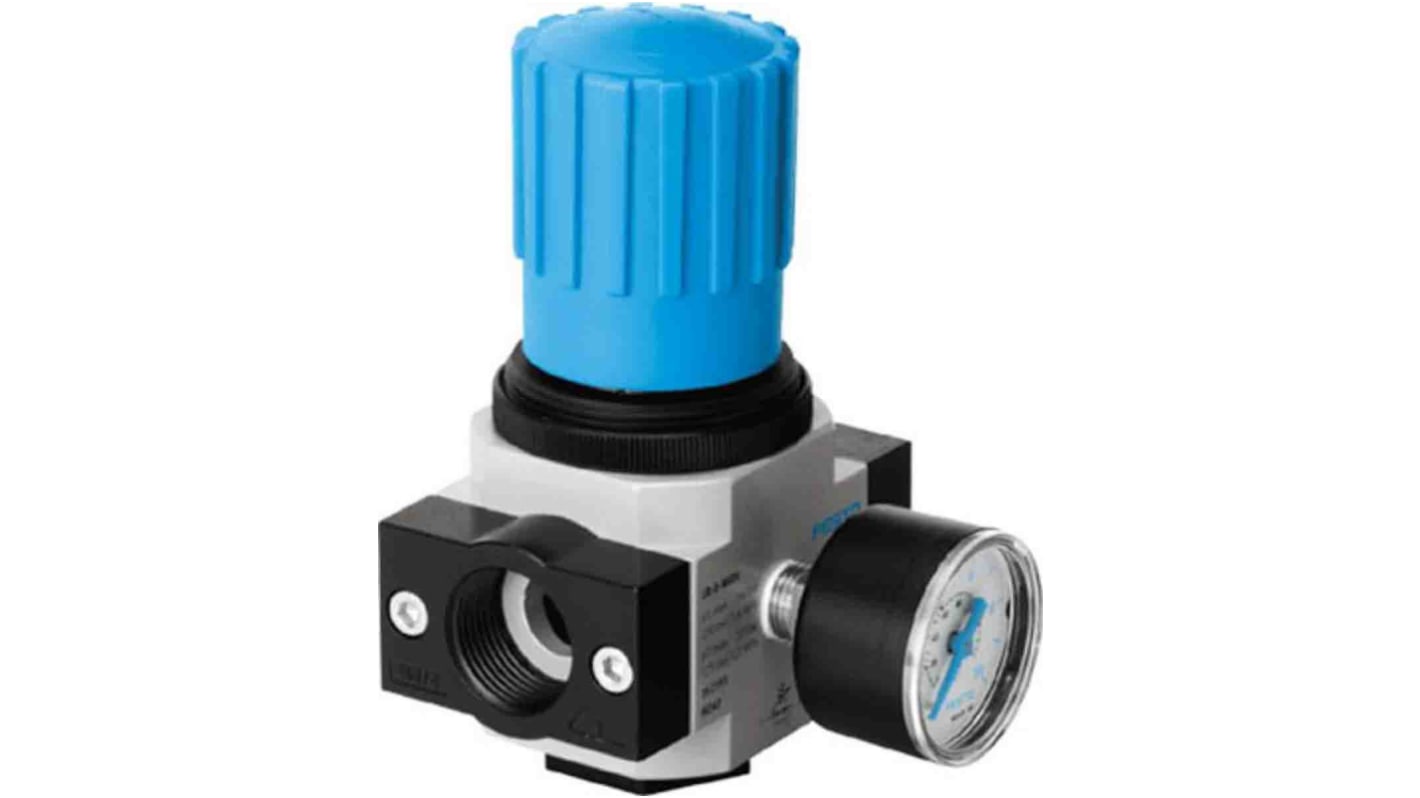

Festo Pneumatic Regulator, G 3/4, 0.5 Bar to 12 Bar - D series - LR-3/4-D-MIDI
Choose this pressure regulator from Festo to control high input pressures and ensure a constant flow of air in your pneumatic systems. The unit's simple design features a directly-controlled diaphragm regulator for easy installation and maintenance. It's sensitive to slight changes in pressure even in low-pressure systems, so you can count on it for sensitive control of your systems. The regulator's high-strength NBR (nitrile rubber) seals ensure it delivers a long service life.
• Choice of two pressure gauge connections for flexible fitting options
• Compact design for use in modular systems
• Accessories available for front panel and in-line mounting
• Consistent, steady flow rate of 3500 L/min
• Compact design for use in modular systems
• Accessories available for front panel and in-line mounting
• Consistent, steady flow rate of 3500 L/min
Application Information
• Manufacturing systems
• Medical equipment
• Food processing
• Medical equipment
• Food processing
Is this pressure regulator corrosion resistant?
This unit is rated CRC2 (corrosion resistance class 2) according to Festo's standards. This means it's protected from moderate corrosion stress, such as direct contact with a normal industrial environment or media such as coolants or lubricating agents.
What material is the housing?
The unit is manufactured using zinc die-casting to ensure its high strength.
Specifikationer
Attribute | Value |
|---|---|
| Port Connection | G 3/4 |
| Maximum Outlet Pressure | 12bar |
| Minimum Outlet Pressure | 0.5bar |
| Maximum Input Pressure | 16bar |
| Manufacturer Series | D |
| Pressure Gauge Port Size | G 3/4 |
| Port Connection Thread Size | 3/4 in |
| Pressure Gauge Port Thread Size | 3/4 in |
| Typical Flow Rate | 3500L/min |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +60°C |
| Overall Dimensions | 85 x 95 x 135mm |
| Model Number p | 162581 |
| Overall Height | 135mm |
| Overall Width | 95mm |
| Overall Length | 85mm |
