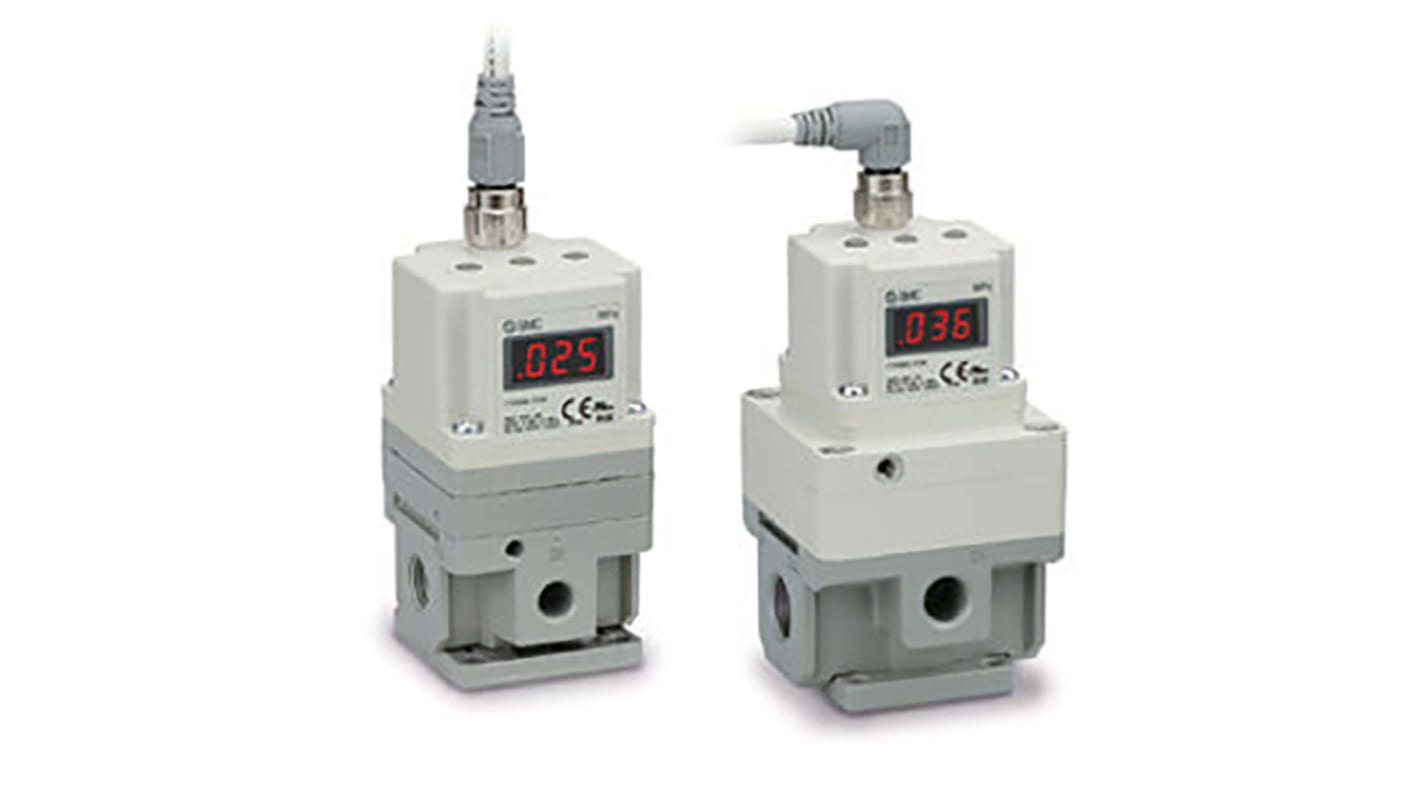

SMC G 3/8 Pneumatic Regulator - 0.005MPa to 0.9MPa, 3/8in, 1MPa max. input
- RS-artikelnummer:
- 196-1203
- Tillv. art.nr:
- ITV2050-31F3BN3
- Tillverkare / varumärke:
- SMC
1 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
5 338,27 kr
(exkl. moms)
6 672,84 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 5 338,27 kr |
- RS-artikelnummer:
- 196-1203
- Tillv. art.nr:
- ITV2050-31F3BN3
- Tillverkare / varumärke:
- SMC
Lagstiftning och ursprungsland
- COO (Country of Origin):
- JP
Produktdetaljer
Controls air pressure in proportion to an electric signal.
Available in MPa, kgf/cm², bar, PSI, and kPa units.
Pressure range of 0.005 to 0.9MPa.
Available port sizes 1/4 and 1/8.
Mounting bracket option
Available in MPa, kgf/cm², bar, PSI, and kPa units.
Pressure range of 0.005 to 0.9MPa.
Available port sizes 1/4 and 1/8.
Mounting bracket option
Specifikationer
Attribute | Value |
|---|---|
| Port Connection | G 3/8 |
| Maximum Outlet Pressure | 0.9MPa |
| Minimum Outlet Pressure | 0.005MPa |
| Maximum Input Pressure | 1MPa |
| Manufacturer Series | ITV2000 |
| Port Connection Thread Size | 3/8in |
| Maximum Flow Rate | 1500L/min |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +50°C |
| Overall Dimensions | 50 x 52 x 104mm |
| Overall Length | 50mm |
| Overall Height | 104mm |
| Overall Width | 52mm |
