SMC Rc 1/8 Pneumatic Regulator - 0.01MPa to 0.8MPa, 1/8in, 1MPa max. input
- RS-artikelnummer:
- 196-1194
- Tillv. art.nr:
- IR1020-01
- Tillverkare / varumärke:
- SMC
Tillfälligt slut i lager – restorder för leverans 2024-04-29
Lagt till varukorgen
Pris (ex. moms) Varje
845,28 kr
(exkl. moms)
1 056,60 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 845,28 kr |
| 5 - 9 | 811,41 kr |
| 10 + | 794,58 kr |
- RS-artikelnummer:
- 196-1194
- Tillv. art.nr:
- IR1020-01
- Tillverkare / varumärke:
- SMC
Lagstiftning och ursprungsland
- COO (Country of Origin):
- JP
Produktdetaljer

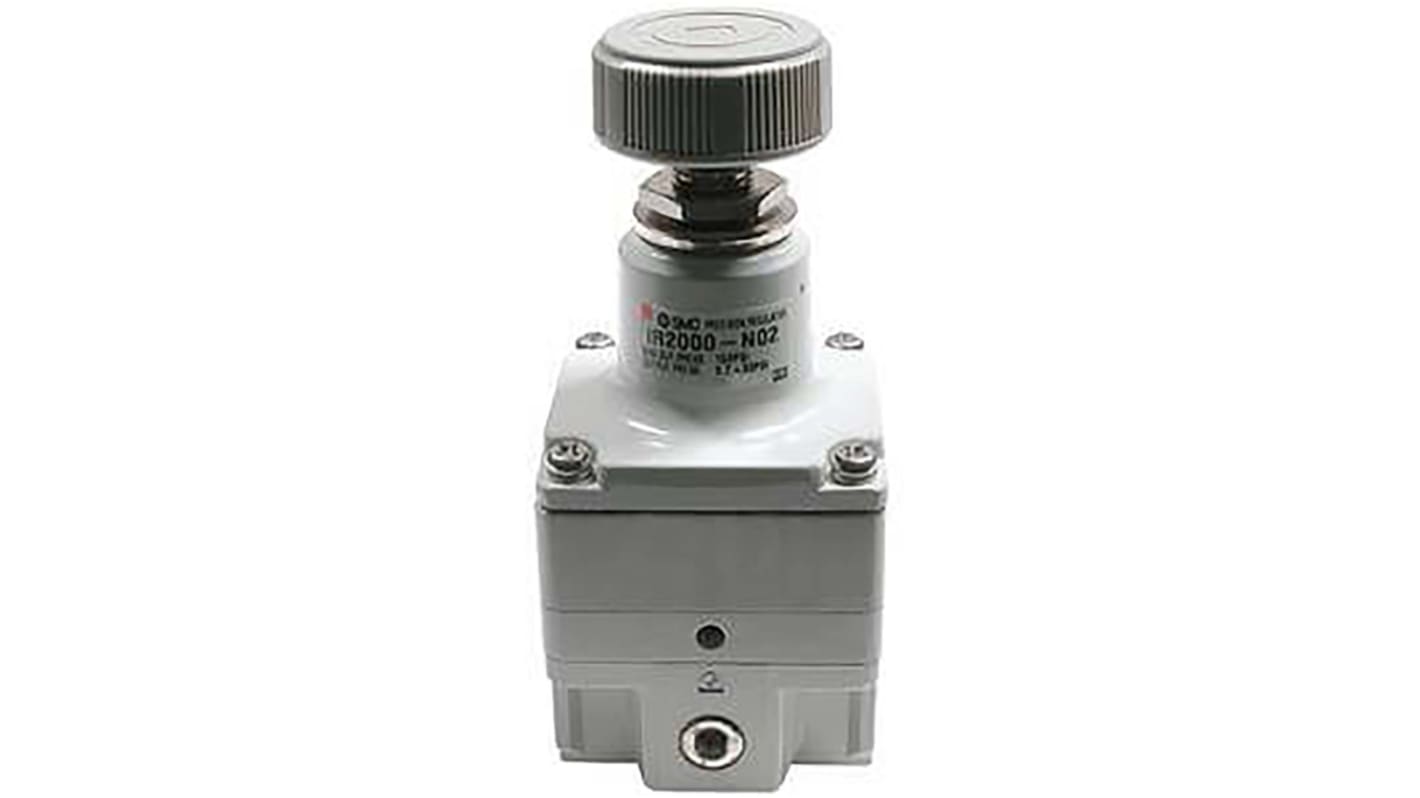

Precision regulator
Regulating pressure range (MPa): 0.005 to 0.8 depending on model
Compact and lightweight
Bracket & pressure gauge can be mounted on either the front or back
2 air operated models
Regulating pressure range (MPa): 0.005 to 0.8 depending on model
Compact and lightweight
Bracket & pressure gauge can be mounted on either the front or back
2 air operated models
Specifikationer
Attribute | Value |
|---|---|
| Port Connection | Rc 1/8 |
| Maximum Outlet Pressure | 0.8MPa |
| Minimum Outlet Pressure | 0.01MPa |
| Maximum Input Pressure | 1MPa |
| Manufacturer Series | IR1000 |
| Pressure Gauge Port Size | Rc 1/8 |
| Port Connection Thread Size | 1/8in |
| Pressure Gauge Port Thread Size | 1/8in |
| Maximum Flow Rate | 4.4L/min |
| Port Connection Thread Standard | Rc |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +60°C |
| Overall Height | 92mm |
| Overall Length | 35mm |
| Overall Dimensions | 35 x 35 x 92mm |
| Overall Width | 35mm |
- RS-artikelnummer:
- 196-1194
- Tillv. art.nr:
- IR1020-01
- Tillverkare / varumärke:
- SMC
