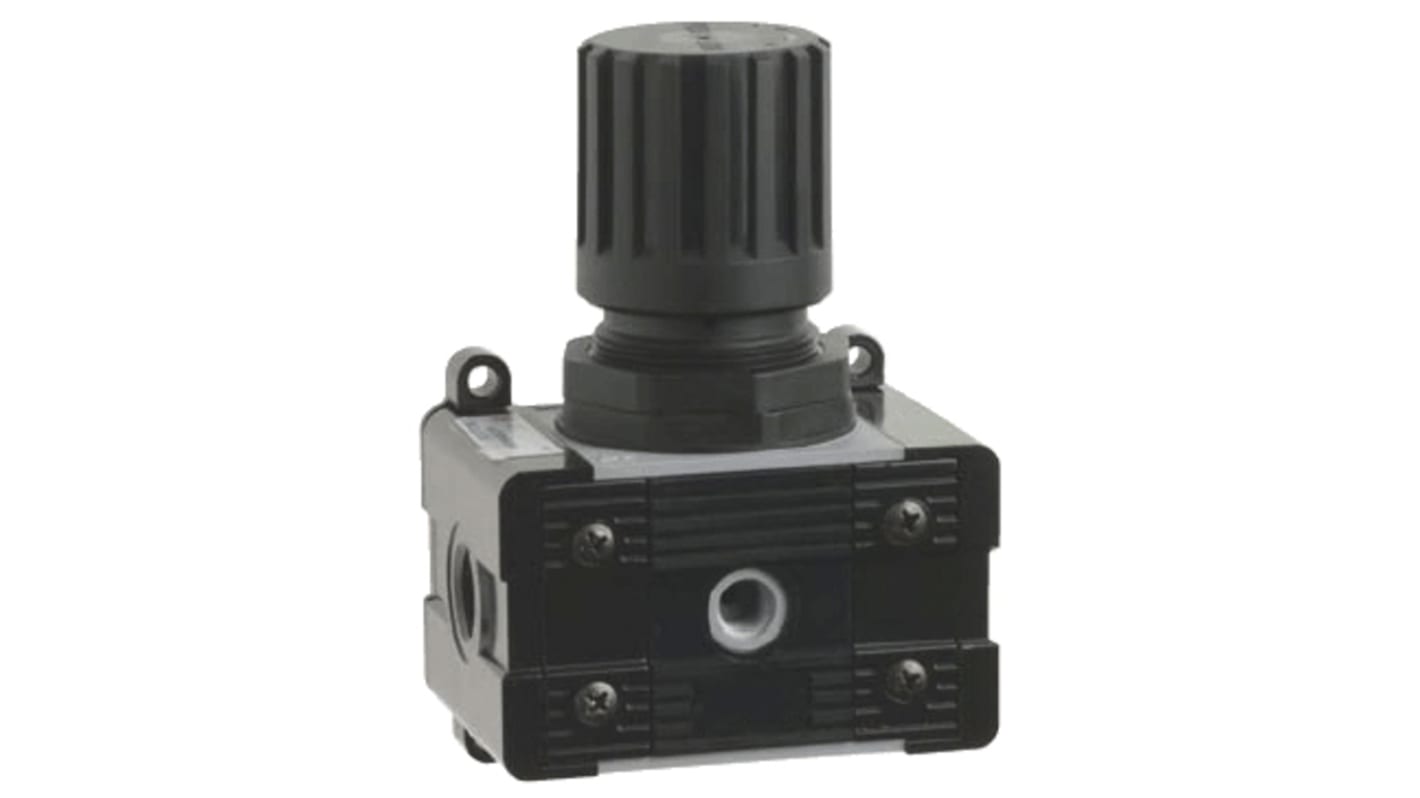

RS PRO G 3/4 Regulator -, 3/4in, 8bar max. input
- RS-artikelnummer:
- 176-1726
- Tillverkare / varumärke:
- RS PRO
3 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
1 101,88 kr
(exkl. moms)
1 377,35 kr
(inkl. moms)
| Enheter | Per unit |
| 1 + | 1 101,88 kr |
- RS-artikelnummer:
- 176-1726
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IT
Produktdetaljer
RS Pro pressure regulators for pneumatic networks. The modular system allows individual combinations with other RS Pro air treatment components by using RS Pro air distributors and connection plates.
- Regulation Range: 0-8 bar
- Regulation Range: 0-8 bar
Specifikationer
Attribute | Value |
|---|---|
| Port Connection | G 3/4 |
| Maximum Input Pressure | 8bar |
| Pressure Gauge Port Size | 3/4 in |
| Port Connection Thread Size | 3/4in |
| Pressure Gauge Port Thread Size | 1/8in |
| Maximum Flow Rate | 6200NL/min |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +50°C |
| Overall Dimensions | 106 x 70 x 140.5mm |
| Overall Length | 106mm |
| Overall Width | 70mm |
| Overall Height | 140.5mm |
| Pressure Gauge Port Thread Standard | G |
- RS-artikelnummer:
- 176-1726
- Tillverkare / varumärke:
- RS PRO
