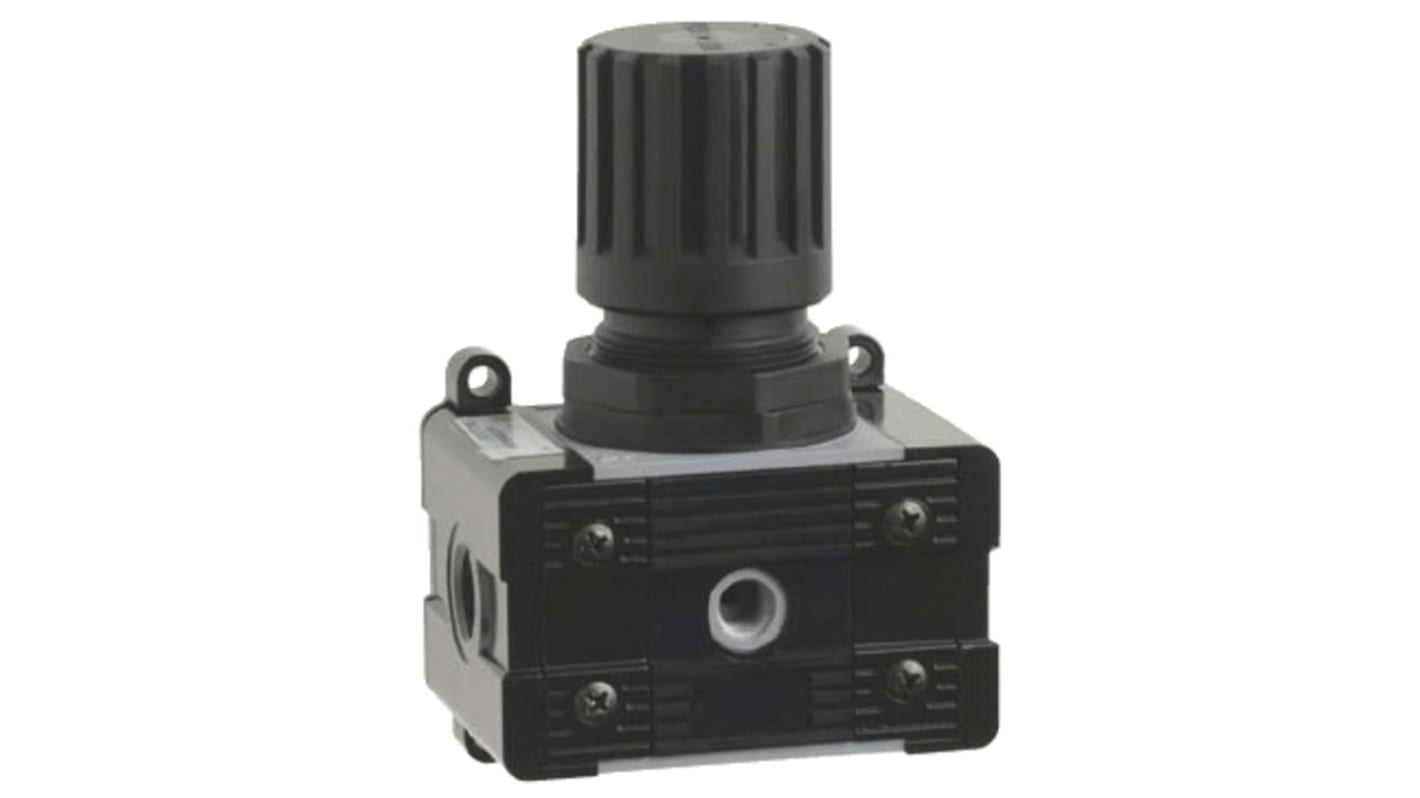

RS PRO Pneumatic Regulator G 3/8 3200nl/min

  • RS-artikelnummer 176-1724
  • Tillverkare / varumärke RS PRO
Datablad
Lagstiftning och ursprungsland
RoHS-Försäkran
COO (Country of Origin): IT
Produktdetaljer

RS Pro pressure regulators for pneumatic networks. The modular system allows individual combinations with other RS Pro air treatment components by using RS Pro air distributors and connection plates.
- Regulation Range: 0-8 bar

Specifikationer
Attribute Value
Port Connection G 3/8
Maximum Input Pressure 8bar
Pressure Gauge Port Size 3/8 in
Port Connection Thread Size 3/8 in
Pressure Gauge Port Thread Size 1/8 in
Maximum Flow Rate 3200NL/min
Port Connection Thread Standard G
Minimum Operating Temperature -10°C
Maximum Operating Temperature +50°C
Overall Dimensions 89 x 59 x 121mm
Overall Length 89mm
Overall Width 59mm
Pressure Gauge Port Thread Standard G
Overall Height 121mm
3 I lager för leverans inom 1 arbetsdagar
Pris (ex. moms) Each
530,75 kr
(exkl. moms)
663,44 kr
(inkl. moms)
Enheter
Per unit
1 +
530,75 kr
