- RS-artikelnummer:
- 121-5680
- Tillv. art.nr:
- MS6-LR-1/2-D6-AS
- Tillverkare / varumärke:
- Festo
14 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
702,46 kr
(exkl. moms)
878,08 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 702,46 kr |
5 - 9 | 674,23 kr |
10 + | 646,12 kr |
- RS-artikelnummer:
- 121-5680
- Tillv. art.nr:
- MS6-LR-1/2-D6-AS
- Tillverkare / varumärke:
- Festo
Lagstiftning och ursprungsland
- COO (Country of Origin):
- HU
Produktdetaljer

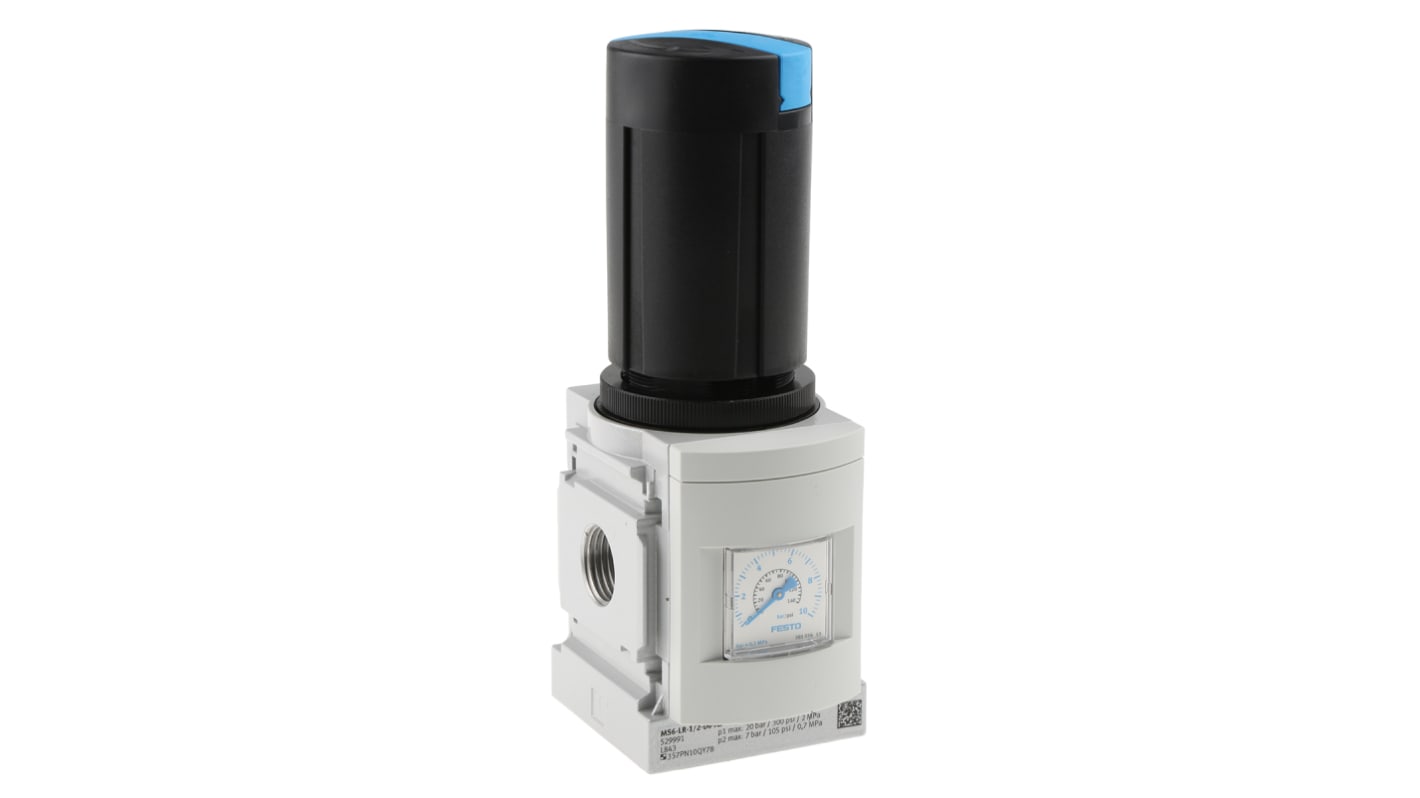

Festo Pneumatic Regulator, Die-Cast Aluminium Housing, Size 6 - MS6-LR-1/2-D6-AS
Keep your system's pressure in check with this pneumatic regulator from Festo. When it senses the pressure is at a pre-set level, it immediately cuts off the air supply to hold things steady. Controlling the unit's a breeze thanks to the front-facing rotary knob that lets you easily adjust the setting. You can keep a close eye on the built-in analogue gauge on the front to make sure your system is ticking over as it should.
Features & Benefits
• PE filter traps contaminants to prevent dirt build-up
• Standard nominal flow rate of 6,500L/min for safe use in high-flow pneumatic systems
• Durable die-cast aluminium housing resists corrosion
• Lockable control knob helps prevent tampering
• Lubricated operation possible to minimise the risk of friction and damage caused by wear
• Standard nominal flow rate of 6,500L/min for safe use in high-flow pneumatic systems
• Durable die-cast aluminium housing resists corrosion
• Lockable control knob helps prevent tampering
• Lubricated operation possible to minimise the risk of friction and damage caused by wear
Applications
• Water treatment facilities
• Laboratories
• Oil and gas industry
• Laboratories
• Oil and gas industry
What's the setting range of this regulator?
The pressure setting range is between 0.3 and 7 bar, so you'll find this unit's the right tool for keeping your low-pressure system in line.
Is this regulator sealed?
Yes, this regulator's sealed. It comes with robust NBR rings to prevent leakage.
Regulators and Filter Regulators
Specifikationer
Attribute | Value |
---|---|
Port Connection | G 1/2 |
Maximum Outlet Pressure | 7bar |
Minimum Outlet Pressure | 0.3bar |
Maximum Input Pressure | 14bar |
Manufacturer Series | MS6-LR |
Pressure Gauge Port Size | G 1/2 |
Port Connection Thread Size | 1/2in |
Pressure Gauge Port Thread Size | 1/2in |
Maximum Flow Rate | 7500L/min |
Typical Flow Rate | 6500L/min |
Port Connection Thread Standard | G |
Minimum Operating Temperature | -10°C |
Maximum Operating Temperature | +60°C |
Model Number p | 529991 |
Overall Length | 62mm |
Overall Height | 185mm |
Overall Dimensions | 62 x 77 x 185mm |
Pressure Gauge Port Thread Standard | G |
Overall Width | 77mm |
