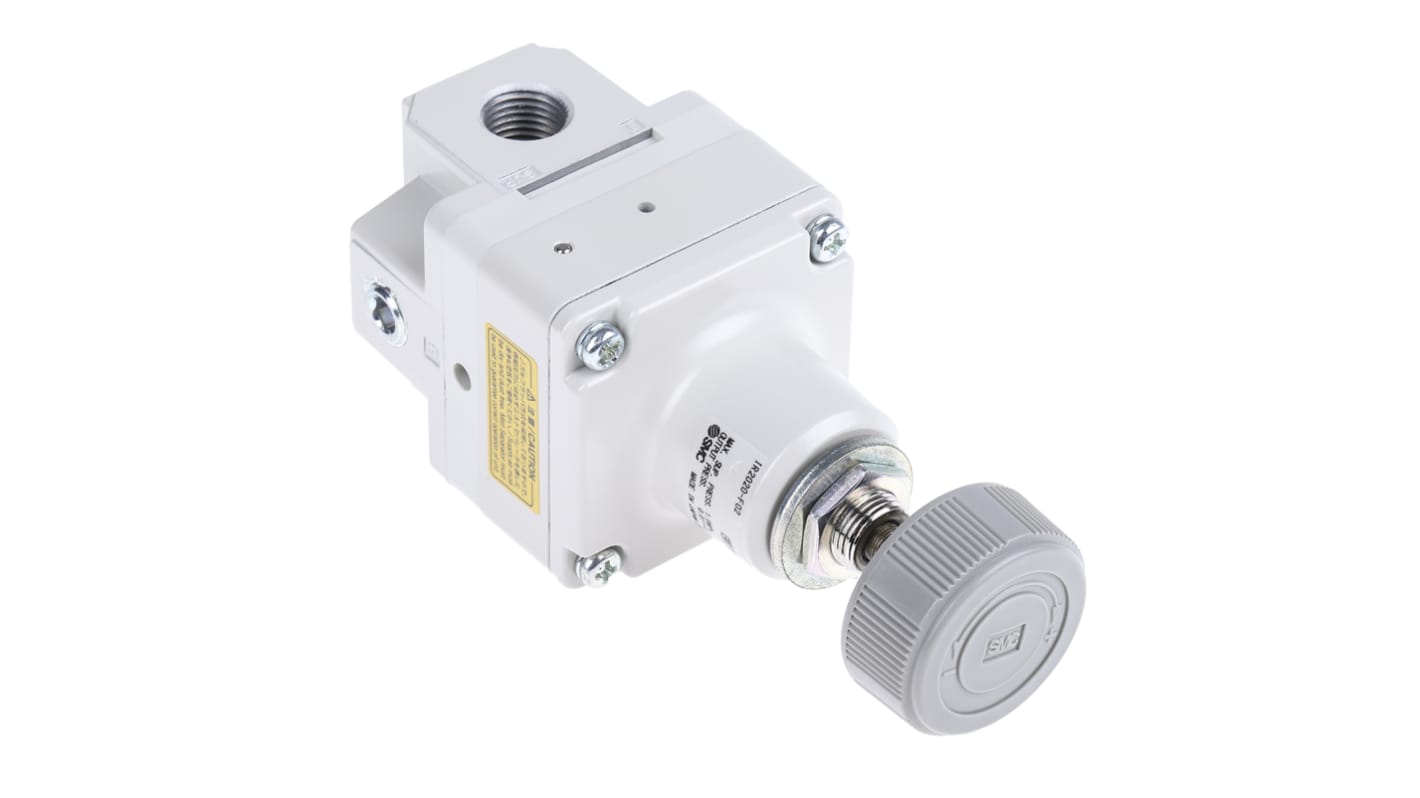

SMC Pneumatic Regulator G 1/4 3.5L/min, 0.01 → 0.8Mpa

  • RS-artikelnummer 453-625
  • Tillv. art.nr IR2020-F02
  • Tillverkare / varumärke SMC
Datablad
Lagstiftning och ursprungsland
Ej tillämpbart
COO (Country of Origin): JP
Produktdetaljer

IR series 1/4"

High adjustment accuracy.
Large decompression capacity for very stable performance.
Use independently or integrated into an SMC FRL module (2000 series).
Supplied with mounting bracket:
Dry air must be filtered at 0.3 μm (moisture separator).

Specifikationer
Attribute Value
Port Connection G 1/4
Minimum Outlet Pressure 0.01MPa
Maximum Outlet Pressure 0.8MPa
Maximum Input Pressure 1MPa
Manufacturer Series IR2000
Pressure Gauge Port Size G 1/8
Port Connection Thread Size 1/4 in
Pressure Gauge Port Thread Size 1/8 in
Maximum Flow Rate 3.5L/min
Integral Check Valve Without Check Valve
Port Connection Thread Standard G
Minimum Operating Temperature -5°C
Maximum Operating Temperature +60°C
Pressure Gauge Port Thread Standard G
9 I lager för leverans inom 1 arbetsdagar
Inom 2 arbetsdag(ar) (UK lager)
Pris (ex. moms) Each
962,84 kr
(exkl. moms)
1 203,55 kr
(inkl. moms)
Enheter
Per unit
1 - 4
962,84 kr
5 - 9
924,33 kr
10 +
885,81 kr
