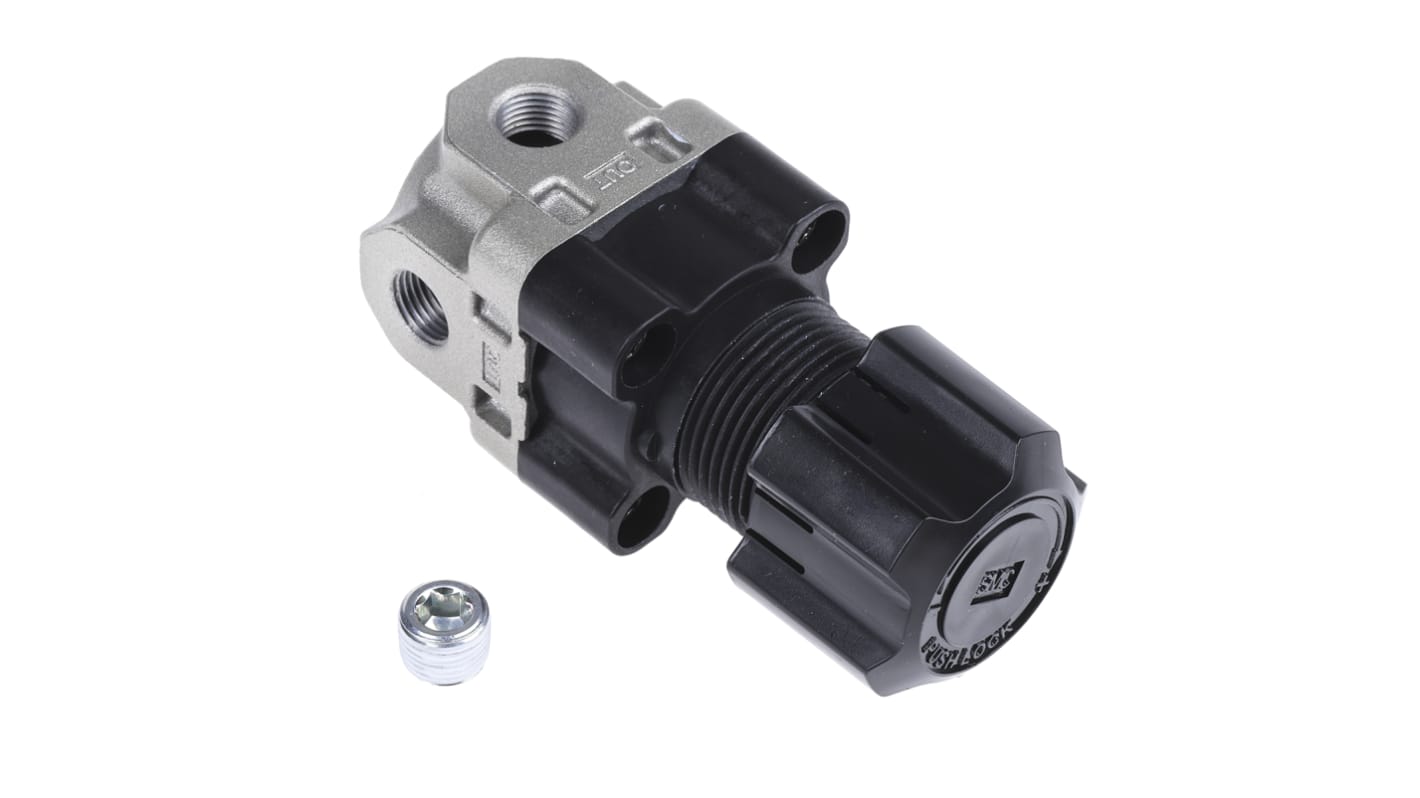

SMC G 1/8 Pneumatic Regulator - 0.05MPa to 0.85MPa, 1/8in, 2MPa max. input
- RS-artikelnummer:
- 209-121
- Tillv. art.nr:
- ARX20-F01
- Tillverkare / varumärke:
- SMC
10 I lager för avsändande samma dag
70 Inom 1 arbetsdag(ar) (UK lager)
Lagt till varukorgen
Pris (ex. moms) Varje
187,05 kr
(exkl. moms)
233,81 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 187,05 kr |
| 5 - 9 | 181,36 kr |
| 10 + | 175,47 kr |
- RS-artikelnummer:
- 209-121
- Tillv. art.nr:
- ARX20-F01
- Tillverkare / varumärke:
- SMC
Lagstiftning och ursprungsland
RoHS-status: Inte relevant
- COO (Country of Origin):
- FR
Produktdetaljer
ARX 20 pressure regulators
ARX series piston type regulators are compatible with a primary supply pressure of 2.0MPa and ideal for pressure adjustment of air blowing applications. Compact in design with easy-to-operate adjustment handle.
Piston regulators featuring a wide range of output pressures.
Black stamped steel housing.
Brass cover and polycarbonate connector.
Pressure gauge and mounting bracket can be ordered separately.
Black stamped steel housing.
Brass cover and polycarbonate connector.
Pressure gauge and mounting bracket can be ordered separately.
Specifikationer
Attribute | Value |
|---|---|
| Port Connection | G 1/8 |
| Maximum Outlet Pressure | 0.85MPa |
| Minimum Outlet Pressure | 0.05MPa |
| Maximum Input Pressure | 2MPa |
| Manufacturer Series | ARX20 |
| Pressure Gauge Port Size | Rc 1/8 |
| Port Connection Thread Size | 1/8in |
| Pressure Gauge Port Thread Size | 1/8in |
| Maximum Flow Rate | 60L/min |
| Integral Check Valve | Without Check Valve |
| Port Connection Thread Standard | G |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +60°C |
| Pressure Gauge Port Thread Standard | Rc |
