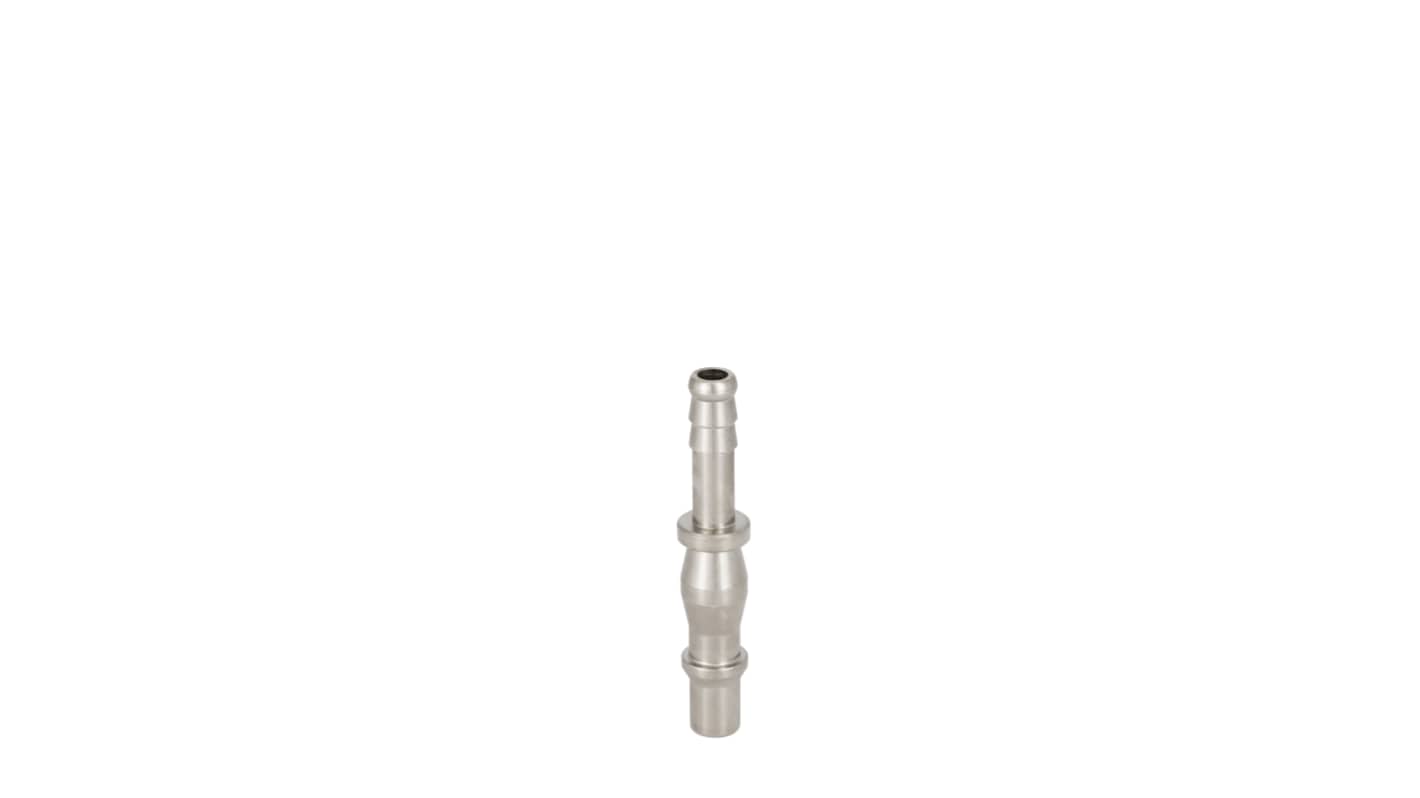

RS PRO Brass Male Pneumatic Quick Connect Coupling, 6mm Hose Barb
- RS-artikelnummer:
- 667-1759
- Tillverkare / varumärke:
- RS PRO
130 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
28,904 kr
(exkl. moms)
36,13 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 20 | 28,904 kr | 144,52 kr |
| 25 - 45 | 28,072 kr | 140,36 kr |
| 50 + | 27,022 kr | 135,11 kr |
- RS-artikelnummer:
- 667-1759
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TR
Produktdetaljer
Series 19 Connectors, Single Shut off Standard Type
Series 19 Connectors, Single Shut Off Standard Type
British profile pattern connectors, ideally suited to a wide range of industrial air line, air tool and garage applications. Couplings are of the single shut-off type, and all allow one-handed operation. All are interchangeable with PCL Airflow, CEJN 295 and Rectus 19 series. Maximum operating pressure is 35 bar and temperature range is -20°C to +100°C
Specifikationer
Attribute | Value |
|---|---|
| Coupling Gender | Male |
| Connection Standard | PLC 60, Rectus 19 |
| Manufacturer Series | 19 |
| Connection Type | Hose Barb |
| Hose Barb Connection | 6mm |
| Material | Brass |
| Thread Gender | Male |
| Maximum Operating Pressure | 35bar |
| Finish | Nickel Plated |
| Seal Material | Nitrile Rubber |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +100°C |
