- RS-artikelnummer:
- 667-1721
- Tillverkare / varumärke:
- RS PRO
86 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Varje
188,06 kr
(exkl. moms)
235,08 kr
(inkl. moms)
Enheter | Per unit |
1 - 4 | 188,06 kr |
5 - 9 | 182,15 kr |
10 + | 176,57 kr |
- RS-artikelnummer:
- 667-1721
- Tillverkare / varumärke:
- RS PRO
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- TR
Produktdetaljer

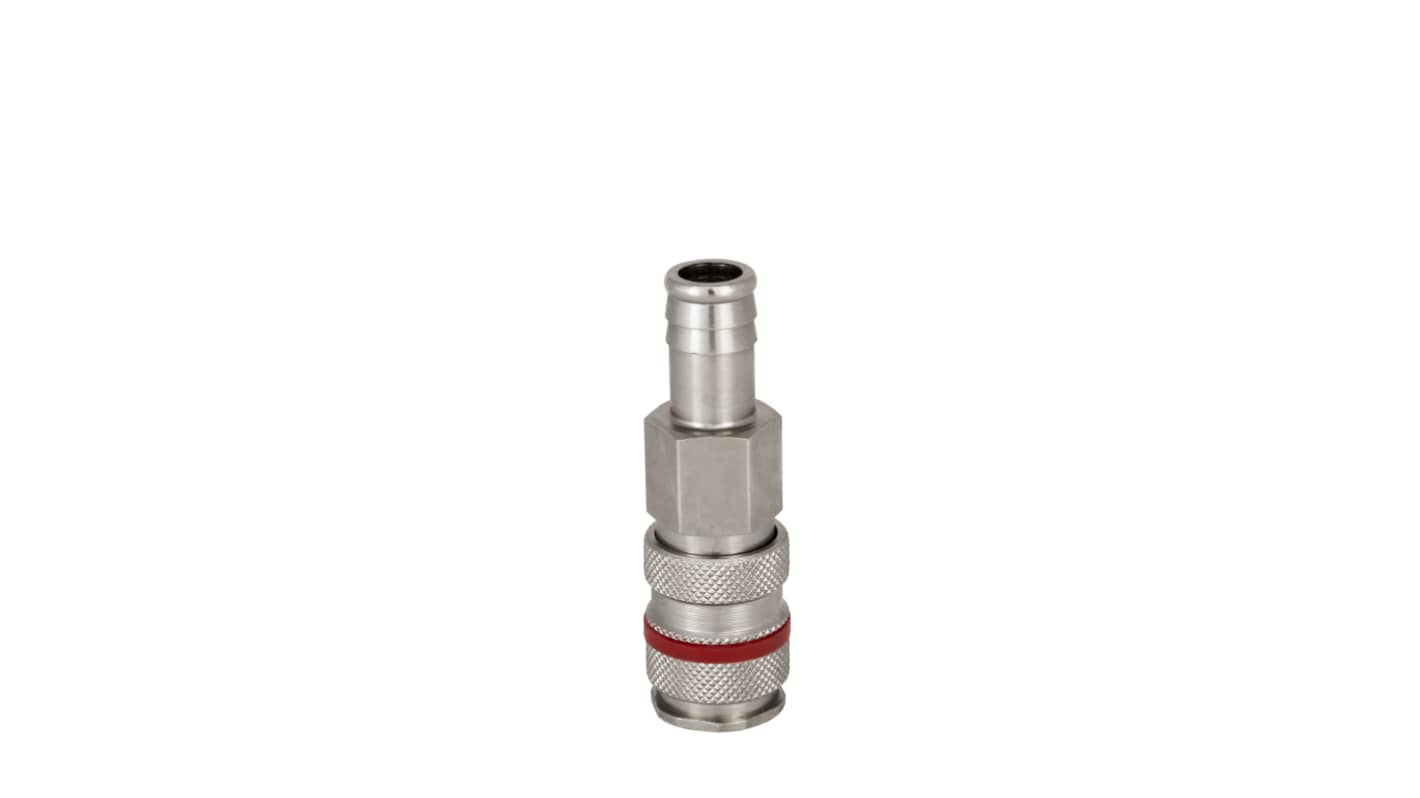

Series 19 Connectors, Single Shut off Standard Type
Series 19 Connectors, Single Shut Off Standard Type
British profile pattern connectors, ideally suited to a wide range of industrial air line, air tool and garage applications. Couplings are of the single shut-off type, and all allow one-handed operation. All are interchangeable with PCL Airflow, CEJN 295 and Rectus 19 series. Maximum operating pressure is 35 bar and temperature range is -20°C to +100°C
Specifikationer
Attribute | Value |
---|---|
Coupling Gender | Male |
Connection Standard | PLC 60, Rectus 19 |
Manufacturer Series | 19 |
Connection Type | Hose Barb |
Hose Barb Connection | 6mm |
Material | Brass |
Thread Gender | Male |
Maximum Operating Pressure | 35bar |
Finish | Nickel Plated |
Minimum Operating Temperature | -20°C |
Seal Material | Nitrile Rubber |
Maximum Operating Temperature | +100°C |
