RS PRO Brass Male Coupler Nipple, 1/2in Hose Barb
- RS-artikelnummer:
- 187-8833
- Tillverkare / varumärke:
- RS PRO
Tillfälligt slut i lager – restorder för leverans 2024-06-10
Lagt till varukorgen
Pris (ex. moms) 1 påse med 2
488,25 kr
(exkl. moms)
610,31 kr
(inkl. moms)
| Påse(ar) | Per Bag | Per unit* |
| 1 + | 488,25 kr | 244,125 kr |
- RS-artikelnummer:
- 187-8833
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IT
Produktdetaljer

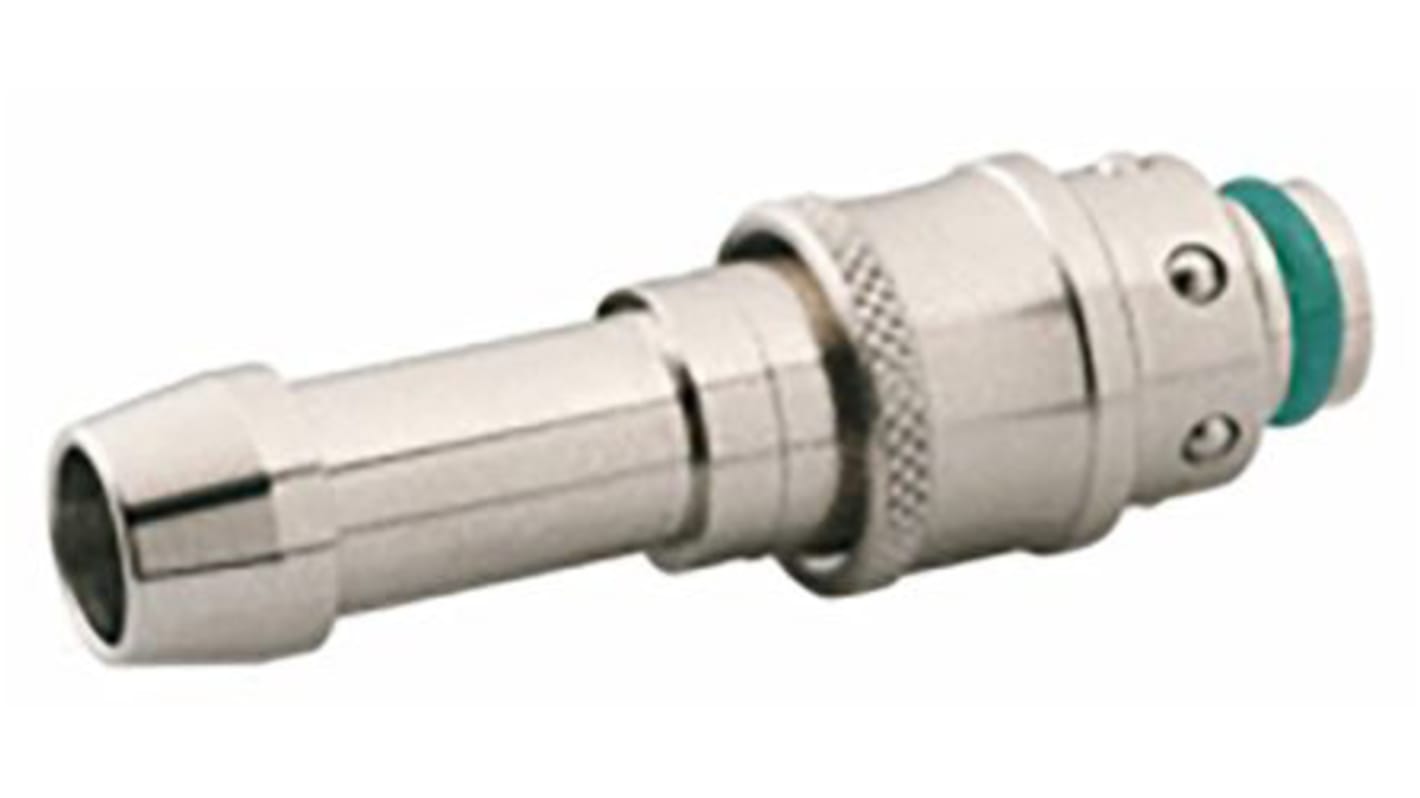

RS PRO Quick Connect Coupling
The RS PRO quick connect coupling has a hose barb connection with a size of 1/2in. This french profile straight plug with male coupling is interchangeable with RECTUS 608/612 of diameter 8mm. The plug has a rest for rubber hose construction.
Features and Benefits
• Nickel-plated brass body
• FKM O-ring seals
• Silicon free
• Working pressure ranges between 0bar and 15bar
• Operating temperature ranges between -15°C and 200°C
• Fluid: compressed air
• Light and compact
• FKM O-ring seals
• Silicon free
• Working pressure ranges between 0bar and 15bar
• Operating temperature ranges between -15°C and 200°C
• Fluid: compressed air
• Light and compact
Applications
• Compressed air and tools
• Pneumatic and fluid technology
• Food and beverage
• Life and sciences
• Cooling system
• Inert gases, vacuum
• Pneumatic and fluid technology
• Food and beverage
• Life and sciences
• Cooling system
• Inert gases, vacuum
Certifications
• REACH compliant
• PED 2014/68/UE approved
• PED 2014/68/UE approved
Specifikationer
Attribute | Value |
|---|---|
| Coupling Gender | Male |
| Coupling Type | Quick Connect Coupling Plug |
| Connection Type | Hose Barb |
| Hose Barb Connection | 1/2in |
| Material | Brass |
| Maximum Operating Pressure | 15bar |
| Minimum Operating Temperature | -15°C |
| Seal Material | NBR |
| Maximum Operating Temperature | +200°C |
