- RS-artikelnummer:
- 187-8822
- Tillverkare / varumärke:
- RS PRO
Tillfälligt slut i lager – restorder för leverans 2024-05-14
Lagt till varukorgen
Pris (ex. moms) 1 påse med 2
84,02 kr
(exkl. moms)
105,02 kr
(inkl. moms)
Påse(ar) | Per Bag | Per unit* |
1 + | 84,02 kr | 42,01 kr |
- RS-artikelnummer:
- 187-8822
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IT
Produktdetaljer

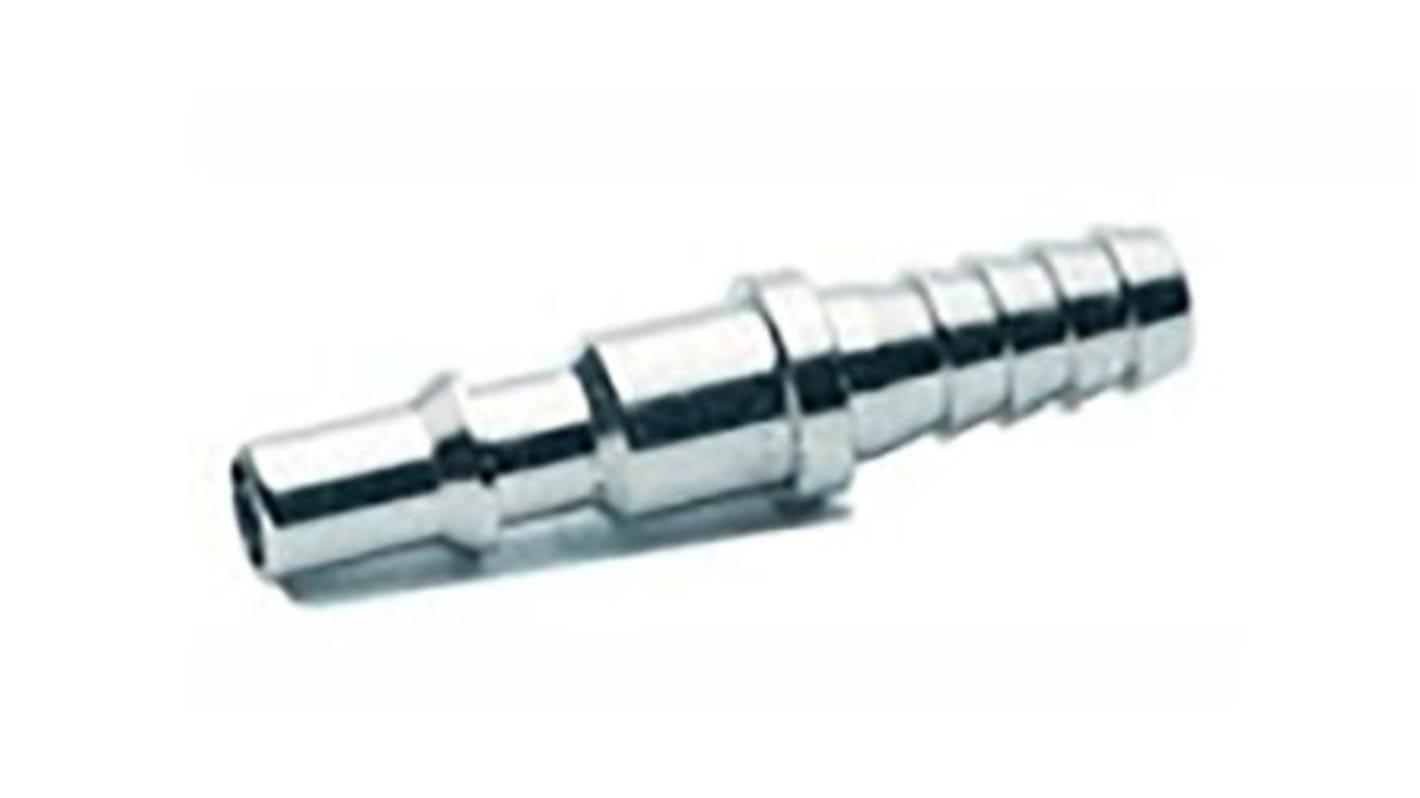

RS PRO Plug With Rest For Rubber Hose
The RS PRO male quick-connect coupling socket is self-closing. The hose barb has a connection of 8mm and the coupling unit is made from nickel-plated brass. This socket performs a single-handed operation and can be coupled with a male connector.
Interchangeable with:
RECTUS/LEGRIS 18
Interchangeable with:
RECTUS/LEGRIS 18
Features and Benefits
Light and compact
Moulding coupler
Multi socket
Operating pressure is 25bar
Operating temperature ranges between -20°C and 80°C
Safety version
Silicon free
Standard profiles
Moulding coupler
Multi socket
Operating pressure is 25bar
Operating temperature ranges between -20°C and 80°C
Safety version
Silicon free
Standard profiles
Applications
Compressed air and tools
Cooling system
Food and beverage
Inert gases, vacuum
Life and sciences
Pneumatic and fluid technology
Cooling system
Food and beverage
Inert gases, vacuum
Life and sciences
Pneumatic and fluid technology
Certifications
REACH (1907/2006 ) certified
PED 2014/68/UE
2011/65/CE
UNI ISO 6150 C-10
PED 2014/68/UE
2011/65/CE
UNI ISO 6150 C-10
Specifikationer
Attribute | Value |
---|---|
Coupling Gender | Male |
Coupling Type | Quick Connect Coupling Plug |
Connection Type | Hose Barb |
Hose Barb Connection | 8mm |
Material | Brass |
Maximum Operating Pressure | 25bar |
Seal Material | NBR |
Minimum Operating Temperature | -20°C |
Maximum Operating Temperature | +80°C |
